Engine Block Assembly Component Location Index (3. 5L Engine)

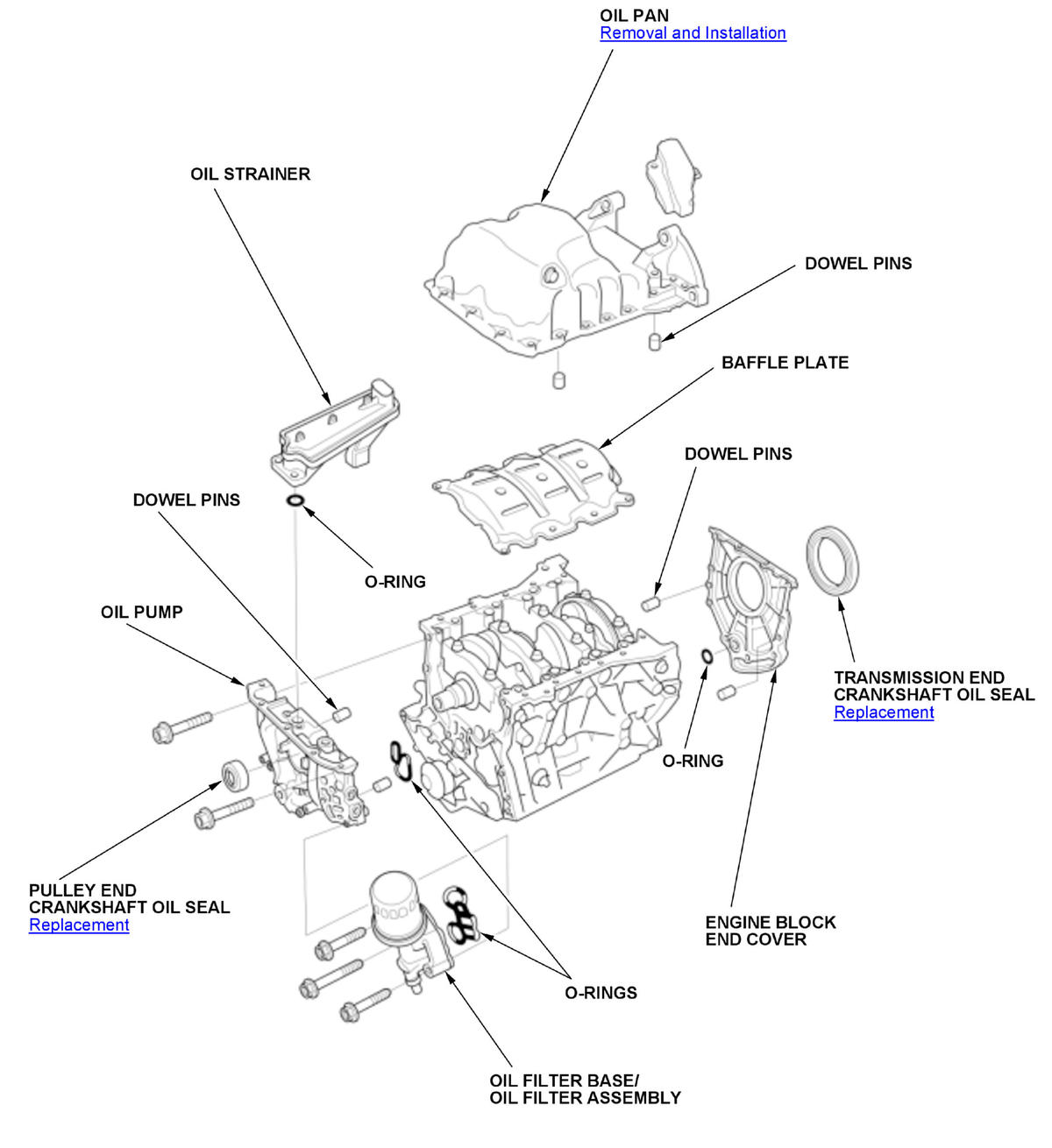

GHH518715Courtesy of HONDA, U.S.A., INC.

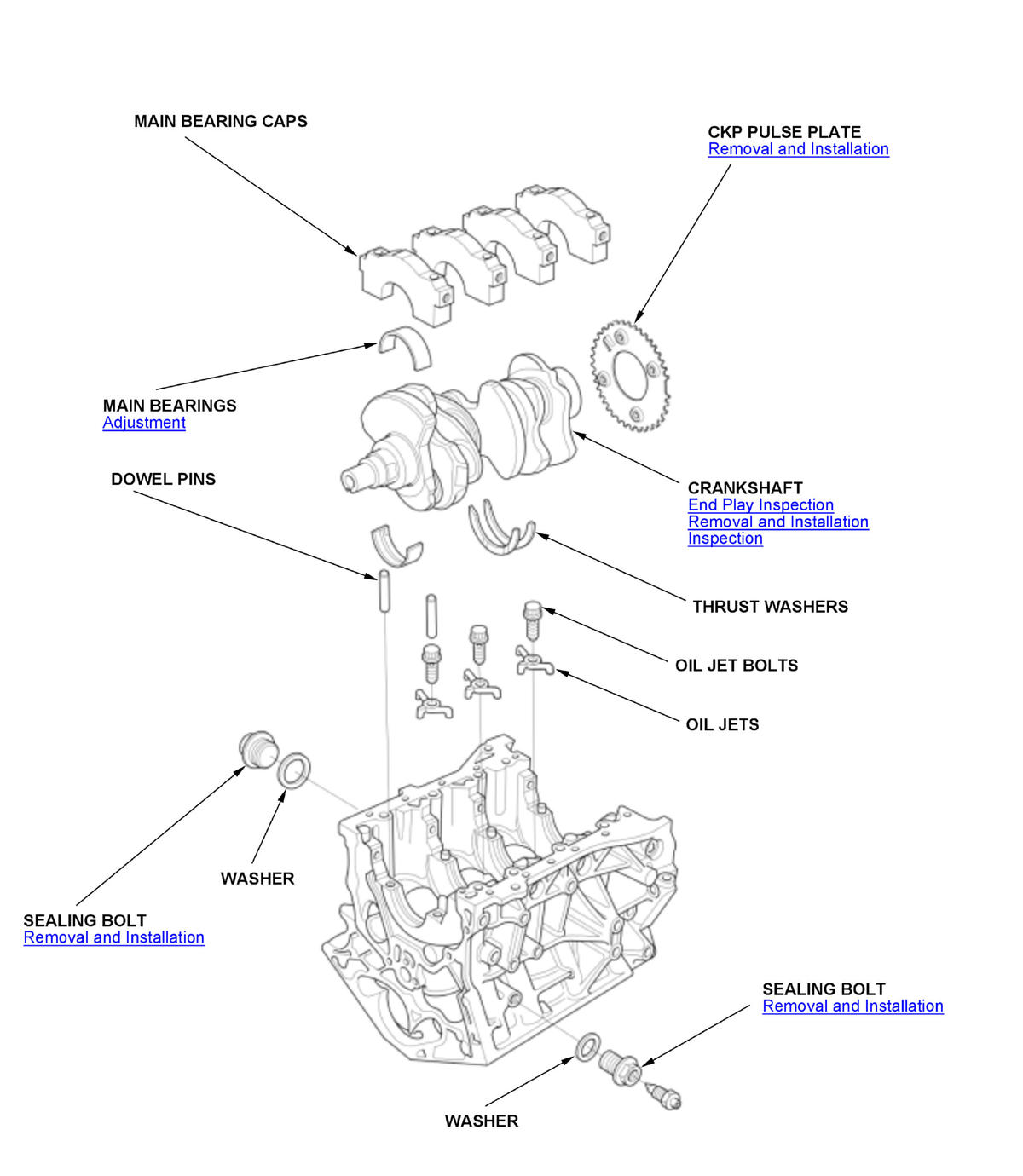

GHH518716Courtesy of HONDA, U.S.A., INC.

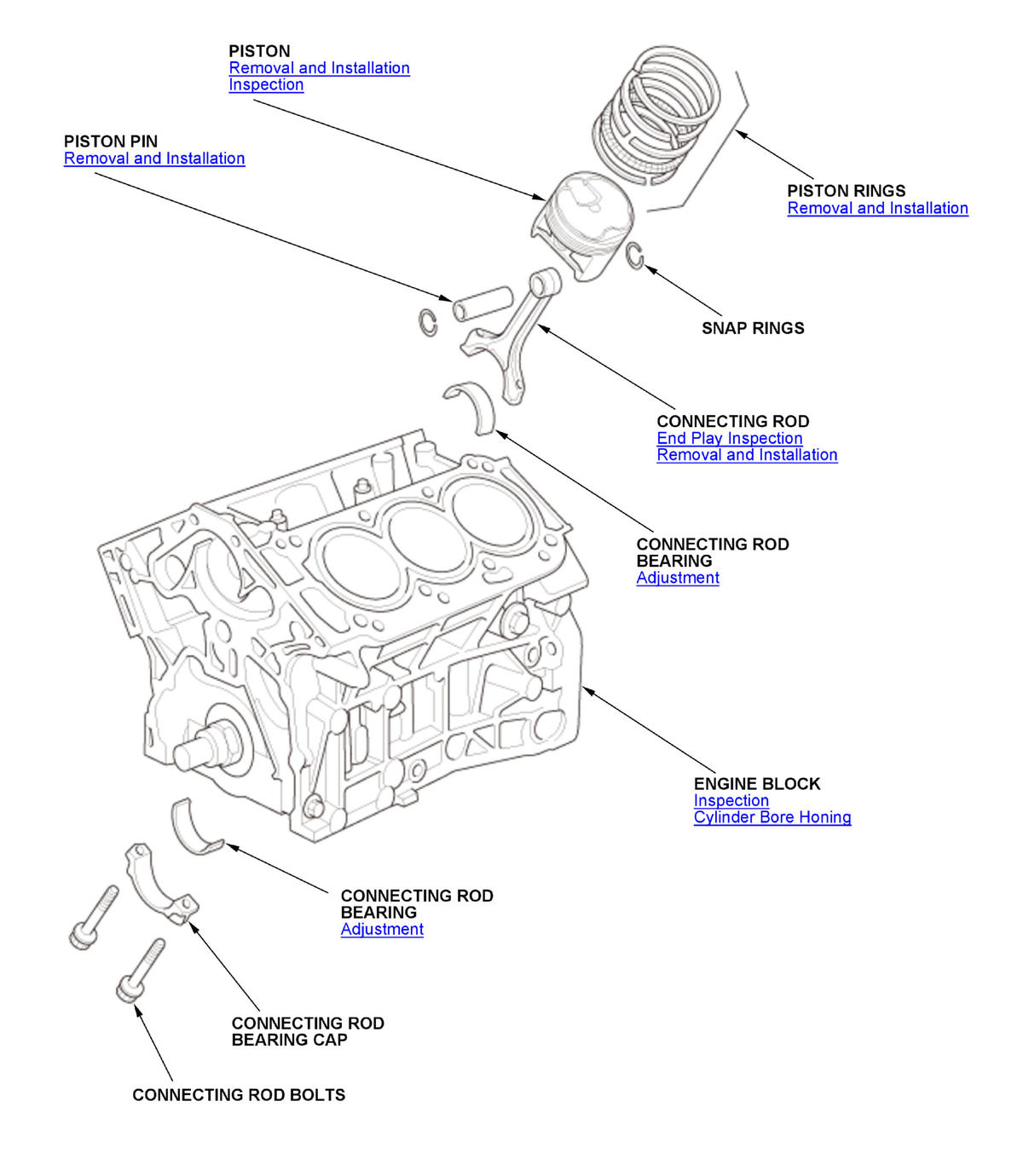

GHH518717Courtesy of HONDA, U.S.A., INC.
