DTC Advanced Diagnostics: U0101 (PGM-FI System (3.5L Engine)) (2025)
DTC U0101 : PF-CAN Malfunction (Powertrain Control Module (PCM)-Transmission Control Module (TCM))
General Description

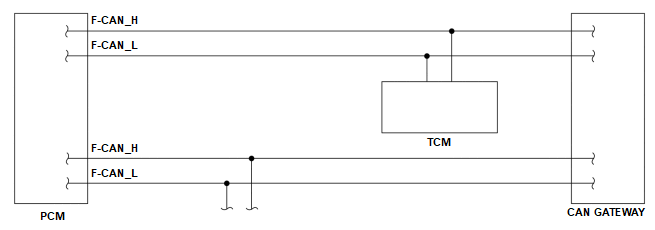

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using two signal lines (F-CAN_H and F-CAN_L). When the powertrain control module (PCM) does not receive the signals from the transmission control module (TCM) via the F-CAN lines for a set time, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 1.5 seconds or more |
| DTC Type | One drive cycle, MIL on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage [Battery] | 10.0 V | - |
| Vehicle | ON mode | |
[ ]: HDS Parameter
Malfunction Threshold
The PCM does not receive any signals from the TCM via the F-CAN lines for at least 1.5 seconds.
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- PF-CAN circuit PF-CAN A_H line open
- PF-CAN circuit PF-CAN A_L line open
- PF-CAN circuit PF-CAN A_H line short to ground
- PF-CAN circuit PF-CAN A_L line short to ground
- PF-CAN circuit PF-CAN C_H line open
- PF-CAN circuit PF-CAN C_L line open
- PF-CAN circuit PF-CAN C_H line short to ground
- PF-CAN circuit PF-CAN C_L line short to ground
- TCM failure (include fuse fall-outs)
- PCM internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected the, MIL comes on and a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
