FTP Sensor Port Visual Inspection

Test Procedure

• Preparation
• • -

    FTP sensor: removed

• Procedure
• • -

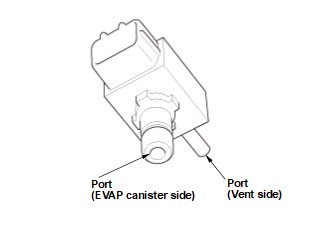

    Check for a blockage or damage at the FTP sensor ports. (EVAP canister side and vent side)

Courtesy of HONDA, U.S.A., INC.

• Normal Conditions
• • -

    There is no blockages or damages.

Results

• If it is abnormal, there is a problem with the FTP sensor.
