Exploded View
For replacement of components listed below, see Repair Procedure

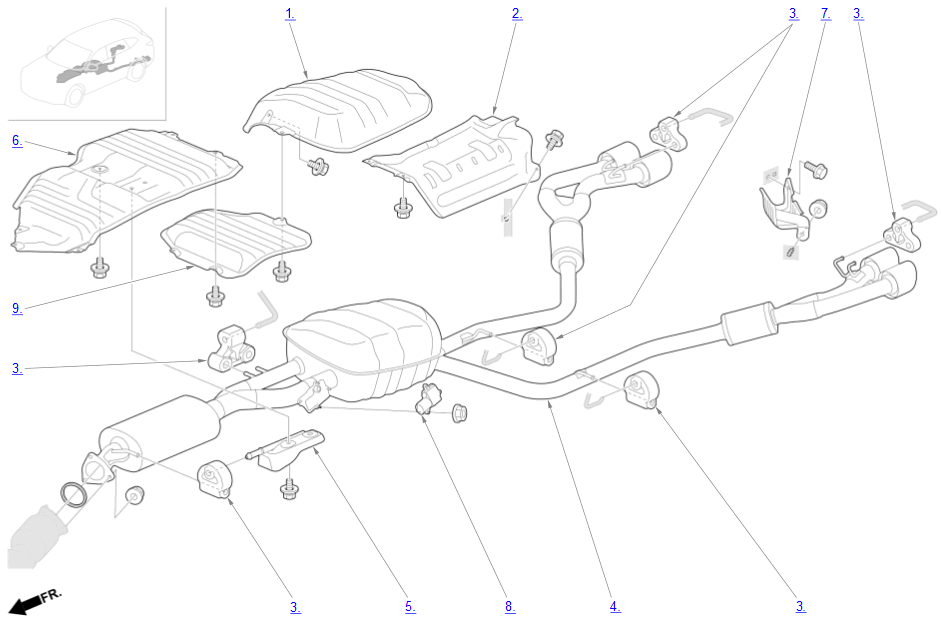

3.5 L Engine

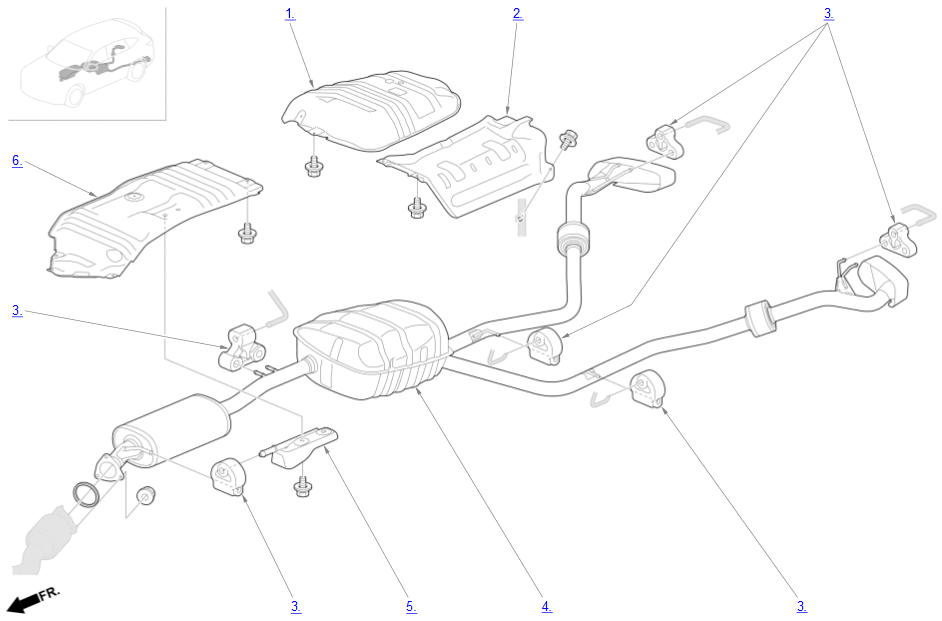

3.0 L Engine
Exhaust_Pipe-Muffler_Area Components
| Component Name | Callout |
|---|---|
| Exhaust Silencer Heat Baffle | 1 |
| Fuel Tank Protector | 2 |
| Rubber Mount | 3 |
| Muffler | 4 |
| Exhaust Mounting Bracket | 5 |
| Exhaust Chamber Heat Baffle | 6 |
| Vent Tube Cover | 7 |
| Active Exhaust Valve Actuator | 8 |
| Exhaust Pipe Heat Baffle | 9 |
