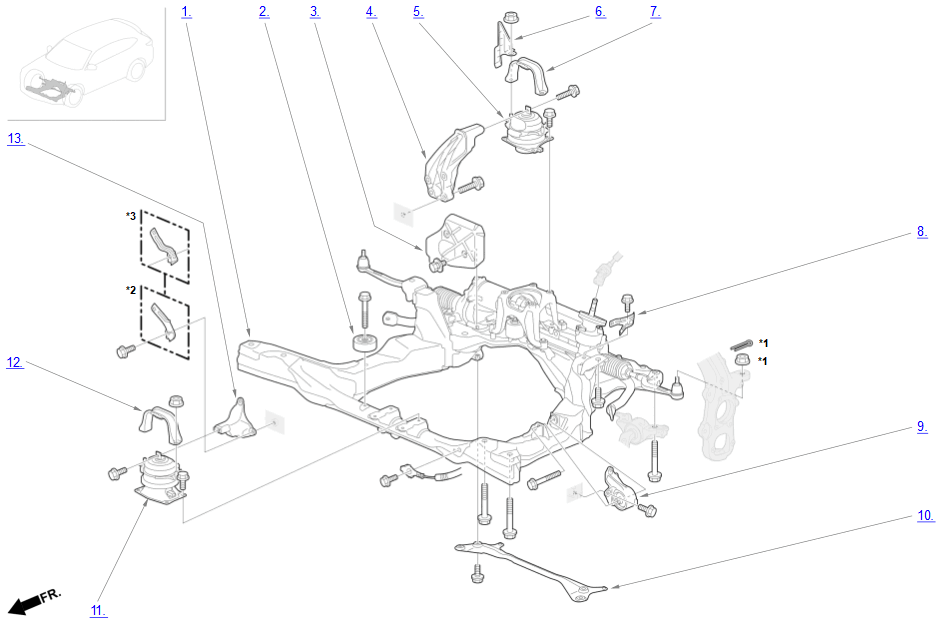

Exploded View
For replacement of components listed below, see Repair Procedure
*1: Part(s) are shown for one side only as the procedure is the same for both sides.
*2: 22-24
*3: 25
*1: Part(s) are shown for one side only as the procedure is the same for both sides.

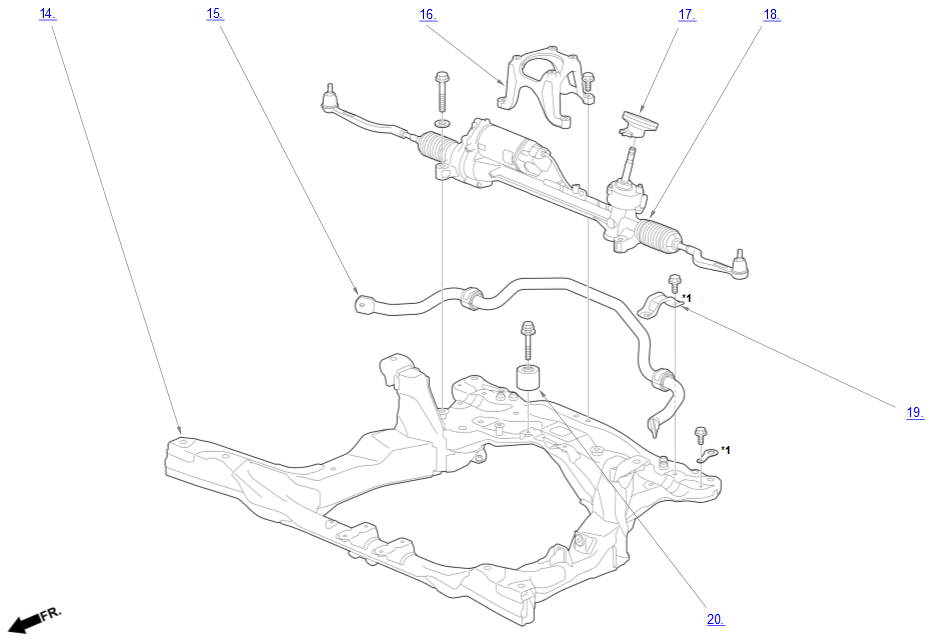

Front_Subframe-Steering_Gearbox_Area(3.5L_Engine) Components
| Component Name | Callout |
|---|---|
| Front Subframe/Steering Gearbox Assembly | 1 |
| Front Subframe Front Dynamic Damper | 2 |
| Steering Gearbox Heat Baffle | 3 |
| Rear Engine Mount Bracket | 4 |
| Rear Engine Mount | 5 |
| Rear Engine Mount Heat Baffle | 6 |
| Rear Engine Mount Stop | 7 |
| EPS Harness Bracket | 8 |
| Transmission Mount | 9 |
| Front Subframe Stiffener | 10 |
| Front Engine Mount | 11 |
| Front Engine Mount Stop | 12 |
| Front Engine Mount Bracket | 13 |
| Front Subframe | 14 |
| Front Stabilizer Bar | 15 |
| Rear Engine Mount Base Bracket | 16 |
| Pinion Shaft Grommet | 17 |
| Steering Gearbox | 18 |
| Bushing Holder | 19 |
| Front Subframe Rear Dynamic Damper | 20 |
