Repair Procedure

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

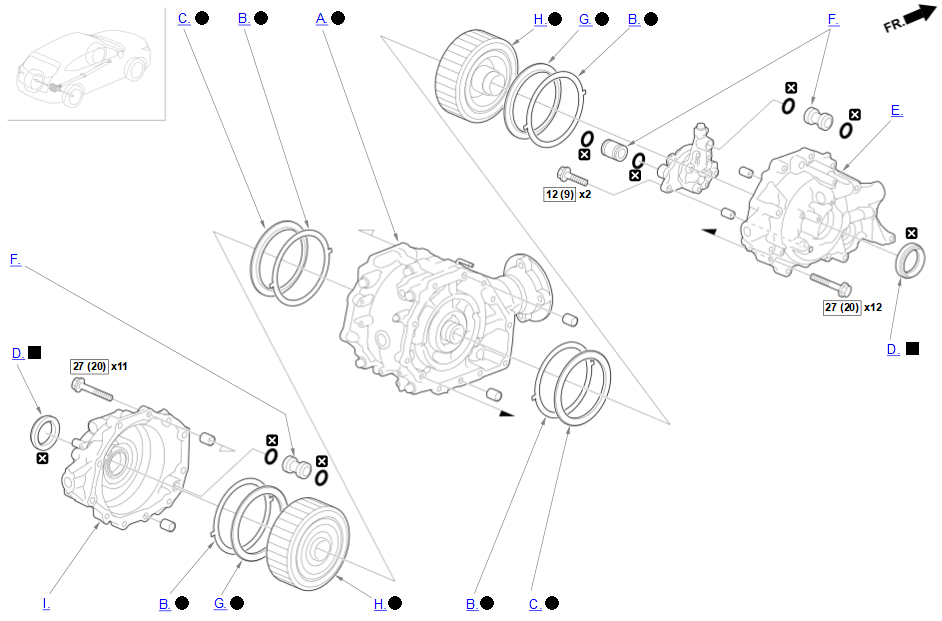

1. A.-

   Sub-Procedure

   NOTE:  When replacing the sub carrier assembly, refer to the Rear Differential Shim Adjustment .

2. B.-

   Sub-Procedure

   NOTE:  If any of the items listed below were replaced, refer to the Rear Differential Shim Adjustment .

   • Sub Carrier Assembly
   • Clutch Assembly
   • Needle Thrust Bearing

   Courtesy of HONDA, U.S.A., INC.

   Installation

   Installation Information

   Name
   a	Bulge of Shim
   b	Groove of Side Case Assembly or Groove of Sub Carrier Assembly

3. C.-

   Sub-Procedure

   NOTE:  When replacing the needle thrust bearing, refer to the Rear Differential Shim Adjustment .

   Courtesy of HONDA, U.S.A., INC.

   Installation

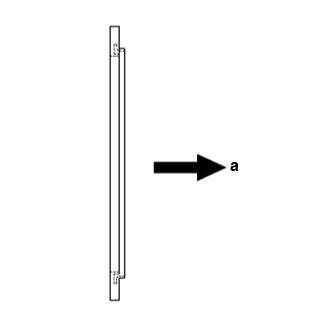

   Installation Directions

   Position	Direction
   a	Sub Carrier Assembly Side

4. D.-

   Sub-Procedure

   NOTICE:

   Be careful not to damage the side case.

   Courtesy of HONDA, U.S.A., INC.

   Installation

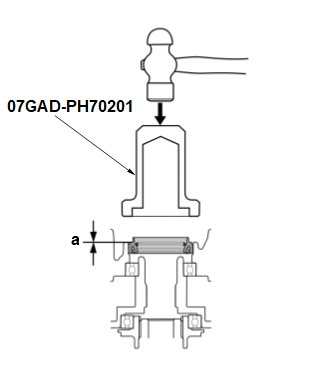

   Specifications

   Specification
   a	0 - 0.5 mm (0 - 0.020 in)

5. E.-

   Sub-Procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Installation

   1. Remove all of the old liquid gasket of the sealing surface.

   2. Apply liquid gasket evenly to the sealing surface.

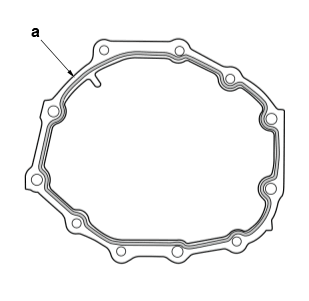

   Lubricant Specifications (Figure 1)

   Position	Type
   a	Liquid Gasket(P/N 08718-0003, 08718-0004, or 08718- 0009)

   NOTICE:

   • Install the component within 5 minutes of applying the liquid gasket.
   • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.
   • Allow it to cure at least 30 minutes after assembly before filling the rear differential assembly with recommended fluid.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

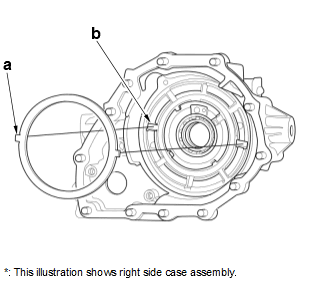

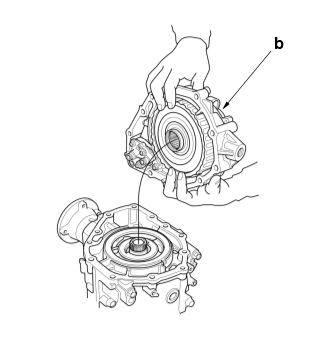

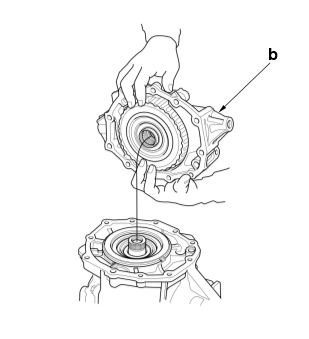

   3. While holding the rear differential side case assembly (b), install it as shown. (Figure 2)

6. F.-

   Sub-Procedure

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	Rear Differential Fluid

7. G.-

   Sub-Procedure

   NOTE:  When replacing the needle thrust bearing, refer to the Rear Differential Shim Adjustment .

   Courtesy of HONDA, U.S.A., INC.

   Installation

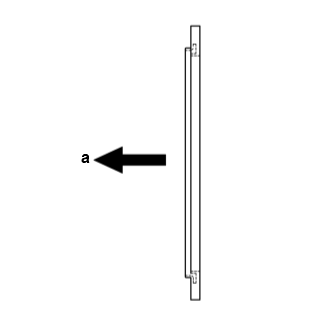

   Installation Directions

   Position	Direction
   a	Side Case Assembly Side

8. H.-

   Sub-Procedure

   NOTE:  When replacing the clutch assembly, be sure to replace both sides of it and refer to the Rear Differential Shim Adjustment .

   Installation

   Lubricant Specifications

   Object	Type
   Clutch Assembly	Rear Differential Fluid

9. I.-

   Sub-Procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Installation

   1. Remove all of the old liquid gasket of the sealing surface.

   2. Apply liquid gasket evenly to the sealing surface.

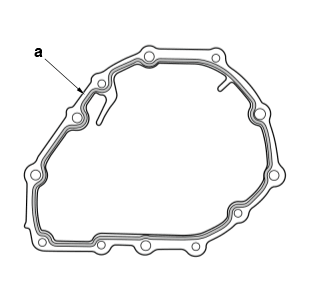

   Lubricant Specifications (Figure 1)

   Position	Type
   a	Liquid Gasket(P/N 08718-0003, 08718-0004, or 08718- 0009)

   NOTICE:

   • Install the component within 5 minutes of applying the liquid gasket.
   • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.
   • Allow it to cure at least 30 minutes after assembly before filling the rear differential assembly with recommended fluid.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   3. While holding the rear differential side case assembly (b), install it as shown. (Figure 2)
