Exploded View

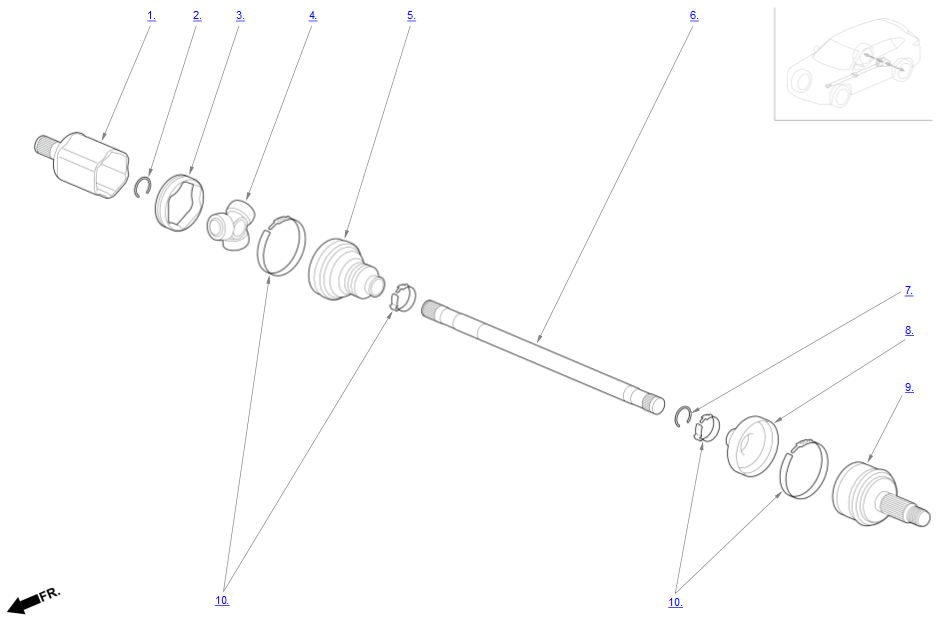

GHH664973Courtesy of HONDA, U.S.A., INC.
  1. Inboard Joint
  2. Circlip
  3. Inboard Boot Adapter
  4. Spider/Roller
  5. Inboard Boot
  6. Driveshaft
  7. Stop Ring
  8. Outboard Boot
  9. Outboard Joint
  10. Boot Band
