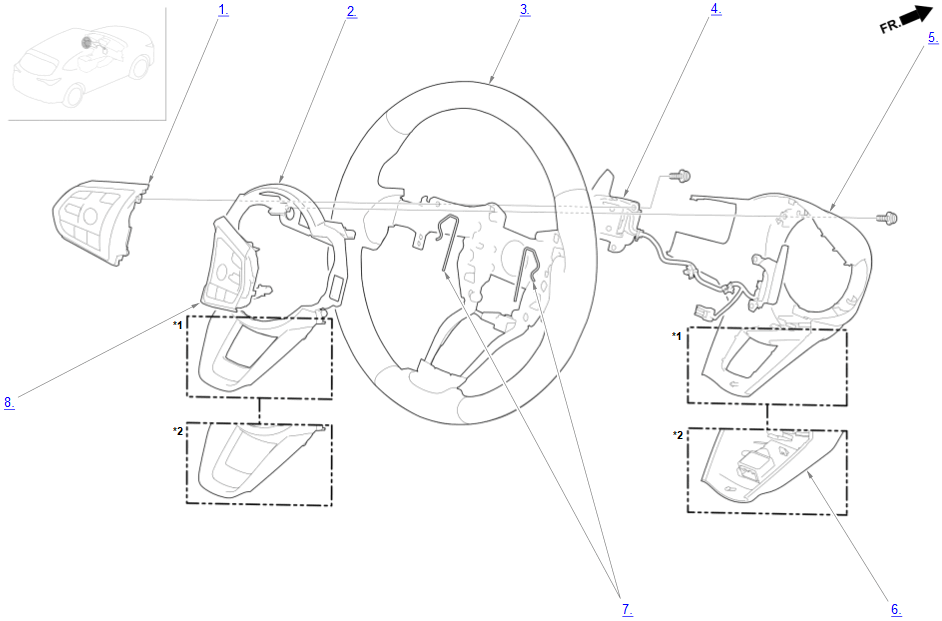

Exploded View

GHH665611Courtesy of HONDA, U.S.A., INC.

*1: With integrated driver support system

*2: With integrated driver support system (camera and five radars)

With Integrated Driver Support System (Camera and Five Radars)

GHH665612Courtesy of HONDA, U.S.A., INC.
  1. Audio Remote-HFL Switch
  2. Steering Wheel Garnish
  3. Steering Wheel
  4. Paddle Shifter
  5. Steering Body Cover
  6. Steering Body Cover/Heated Steering Wheel/Hands On Detective Control Unit
  7. Spring
  8. ACC Combination Switch
  9. Heated Steering Wheel/Hands On Detective Control Unit
