Exploded View

For replacement of components listed below, see Repair Procedure

NOTE:  Unless otherwise indicated, these illustrations show 22-24 models.

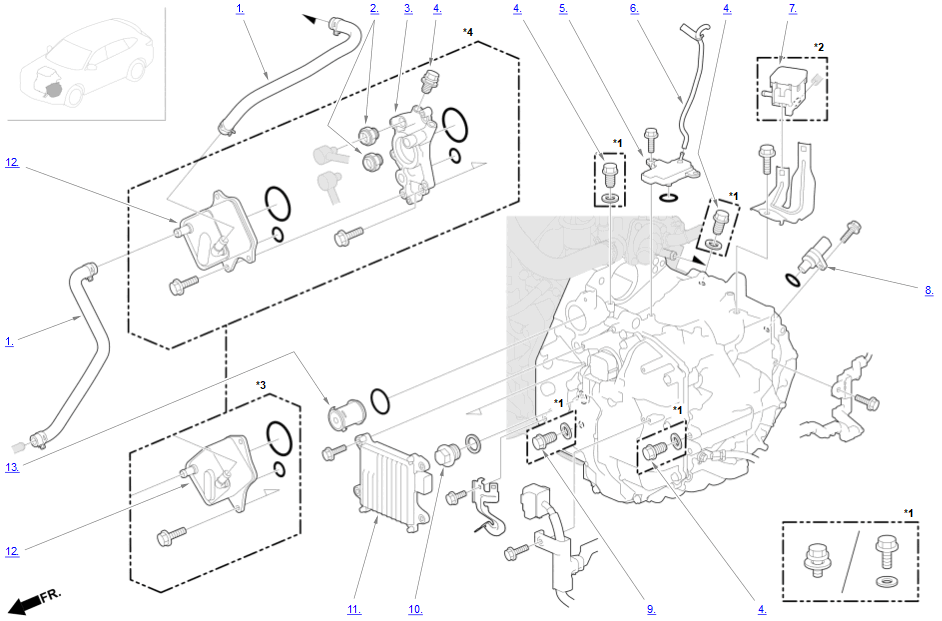

22-24

Courtesy of HONDA, U.S.A., INC.

*1: 2 types

*2: With AWD

*3: Without ATF cooler

*4: With ATF cooler

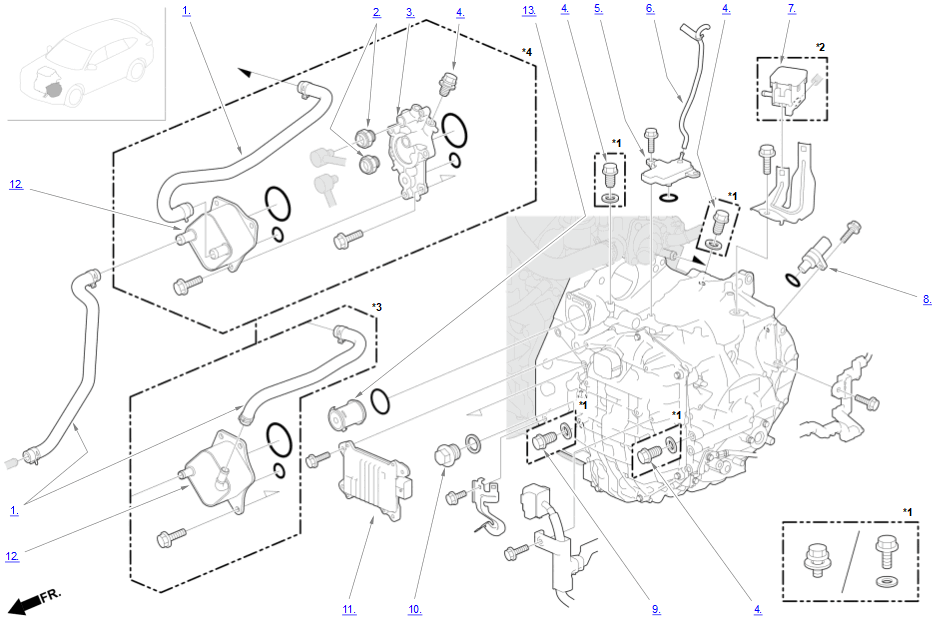

25

Courtesy of HONDA, U.S.A., INC.

*1: 2 types

*2: With AWD

*3: Without ATF cooler

*4: With ATF cooler

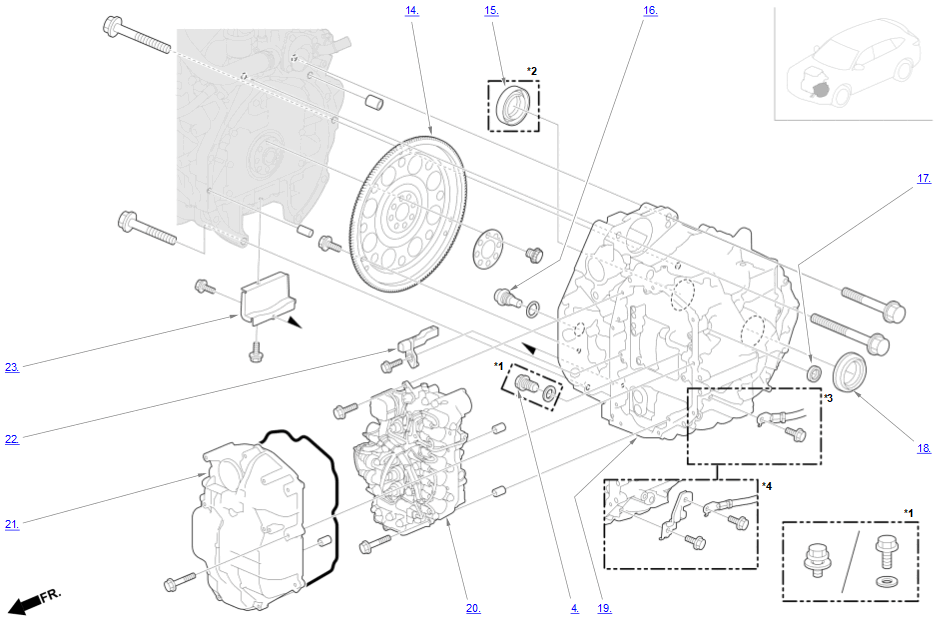

Courtesy of HONDA, U.S.A., INC.

*1: 2 types

*2: Without AWD

*3: 22-24

*4: 25

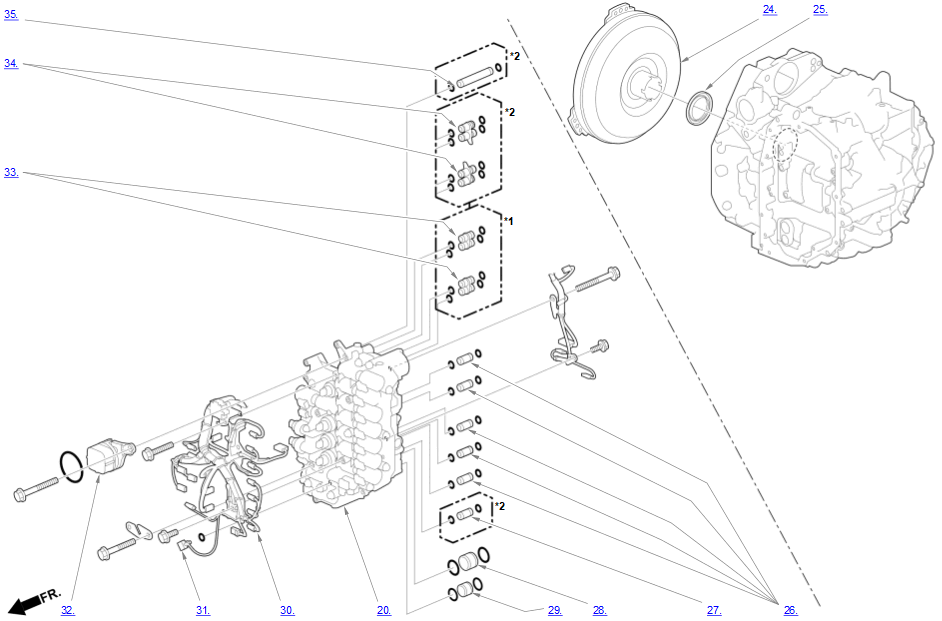

Courtesy of HONDA, U.S.A., INC.

*1:22-24

*2: 25

Component Name	Callout
Water Bypass Hose	1
Quick Connector	2
ATF Warmer Body	3
Sealing Bolt	4
Breather Box	5
Breather Tube	6
Transfer Breather Box	7
Countershaft Speed Sensor	8
Level Plug	9
Filler Plug	10
Transmission Control Module (TCM)	11
ATF Warmer	12
ATF Warmer Strainer	13
Drive Plate	14
Differential Oil Seal (Torque Converter Housing Side)	15
Drain Plug	16
Control Shaft Oil Seal	17
Differential Oil Seal (Transmission Housing Side)	18
Transmission	19
Valve Body Assembly	20
Front Cover	21
Mainshaft Speed Sensor	22
Torque Converter Cover	23
Torque Converter	24
Torque Converter Oil Seal	25
11 x 27 mm Pipe	26
10.9 x 22 mm Pipe	27
25.4 x 19 mm Pipe	28
20.4 x 19 mm Pipe	29
Solenoid Wire Harness	30
ATF Temperature Sensor (Integrated with Solenoid Wire Harness)	31
Solenoid Wire Harness Connector	32
11 x 24.5 mm Pipe	33
Oil Pass Pipe E	34
10.9 x 64 mm Pipe	35
