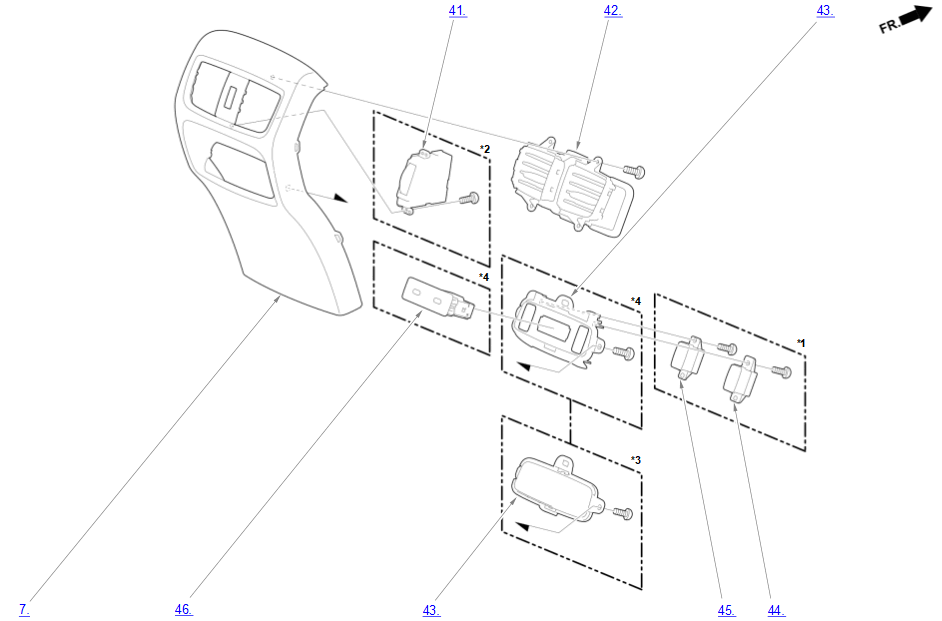

Exploded View: 5
*1: With rear seat heater
*2: With rear temperature control
*3: Without rear USB charger
*4: With rear USB charger
Center Console Area (2025) Components
| Component Name | Callout |
|---|---|
| Driver's Wrapped Trim Assembly | 1 |
| Driver's Center Console Cover | 2 |
| Passthrough Floor Mat | 3 |
| Center Console Assembly | 4 |
| Passenger's Wrapped Trim | 5 |
| Passenger's Center Console Cover | 6 |
| Center Console Rear Panel | 7 |
| Bin Mat | 8 |
| Bin Cover | 9 |
| Top Panel Light | 10 |
| Front Accessory Power Socket | 11 |
| Front Accessory Power Socket Holder | 12 |
| Palm Rest Support Cap | 13 |
| Front USB Charger Unit | 14 |
| Passthrough Panel | 15 |
| Passthrough Floor Panel | 16 |
| Top Shell | 17 |
| Remote Battery | 18 |
| Bottom Shell | 19 |
| Emergency Key | 20 |
| Passenger's Center Console Trim | 21 |
| Center Console Rear Panel Duct | 22 |
| USB Port A | 23 |
| Center Console Armrest Stopper | 24 |
| Driver's Center Console Trim | 25 |
| Driver's Center Console Panel | 26 |
| Center Console Armrest | 27 |
| Center Console Middle Bracket | 28 |
| Passthrough Floor | 29 |
| Front Interior LF Antenna | 30 |
| Center Console Duct | 31 |
| Passenger's Center Console Panel | 32 |
| Driver's Wrapped Trim | 33 |
| Inner Foundation | 34 |
| Engine Start/Stop Switch | 35 |
| Phone Tray | 36 |
| Wireless Charger | 37 |
| Center Console Cup Holder | 38 |
| Top Panel Bezel | 39 |
| Center Console Top Panel | 40 |
| Rear Temperature Control Dial | 41 |
| Rear Vent | 42 |
| Center Console Rear Switch Trim | 43 |
| Right Rear Seat Heater Switch | 44 |
| Left Rear Seat Heater Switch | 45 |
| Rear USB Charger Unit | 46 |
