Unit Check (Quick Check)

These screens allow you to diagnose the infotainment control unit and related units.

Select the item you want to check, and the test begins. To return to the previous screen, select the RETURN icon.

Unit Check
ICU	DISPLAY
INIC	MOST NODES
CAN GATEWAYS	USB
NFC *	TCU
TCU DIAG	TELEMATICS DIAG *
HARD KEY	ERROR HISTORY
AM/FM/HD RADIO	XM
REAR CAMERA	LANEWATCH *
MVC	RSM *
GPS ANTENNA	GYROSCOPE
BLUETOOTH	WIFI
HFT-MIC	EMMC
APPLE IC	PMIC
TOUCHPAD

*: Not supported

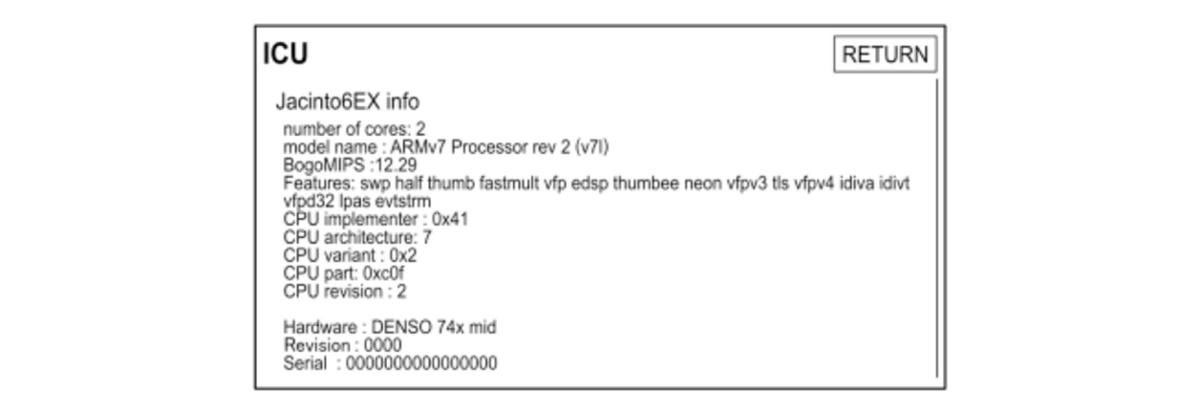

ICU

This diagnosis checks for problems in the infotainment control unit processor.

When the diagnosis is OK, the information of the infotainment control unit processor is displayed.

Courtesy of HONDA, U.S.A., INC.

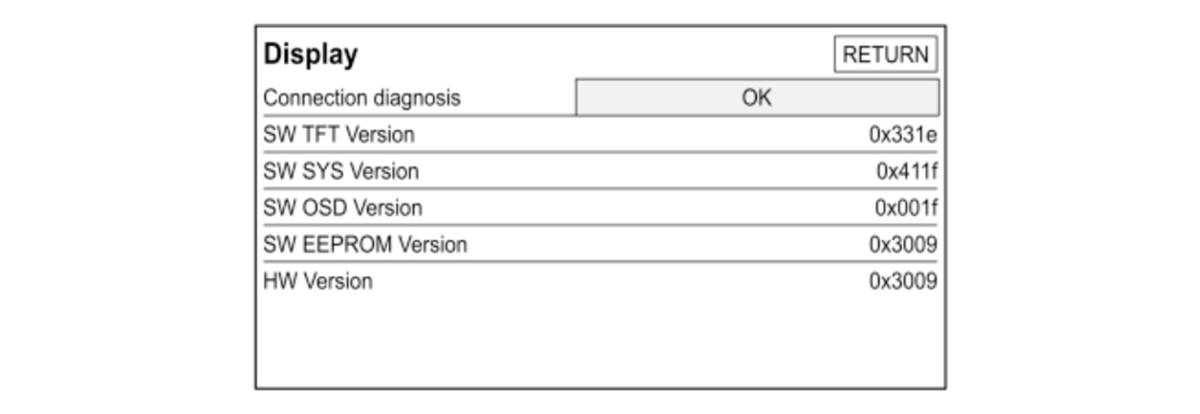

Display

This diagnosis checks the digital bus (LVDS) connection between the infotainment control unit and the center display unit.

When the Connection diagnosis is OK, the information of the center display unit is displayed.

Courtesy of HONDA, U.S.A., INC.

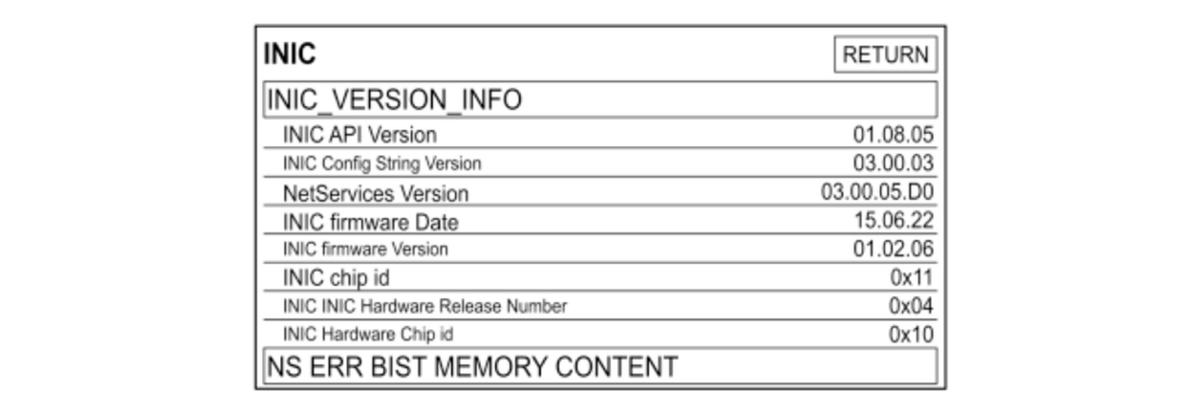

INIC

This diagnosis checks for problems in the INIC (Intelligent Network Interface Controller).

This screen contains result of diagnosis for MOST network:

RBD (ring break diagnosis)
SSO (sudden signal off test)

Courtesy of HONDA, U.S.A., INC.

Most Nodes

This diagnosis checks the connection of each MOST connection unit. When the connection diagnosis is OK, displays the information of each unit.

If the Connection diagnosis shows NOT OK, see Most Bus Diagnostics Mode - Refer to: Audio and Visual System Most Bus Diagnostics Mode or Audio and Visual System Error Codes .

Select the item you want to check, and the test begins. To return to the previous screen, select the RETURN icon.

Most Nodes
METER (HUD) (Gauge Control Module)	AMPLIFIER (Stereo Amplifier)
REMOTE TUNER (Tuner Unit)	BD (not used)
CD (not used)	RCU (not used)
TAU (not used)	CECU (not used)

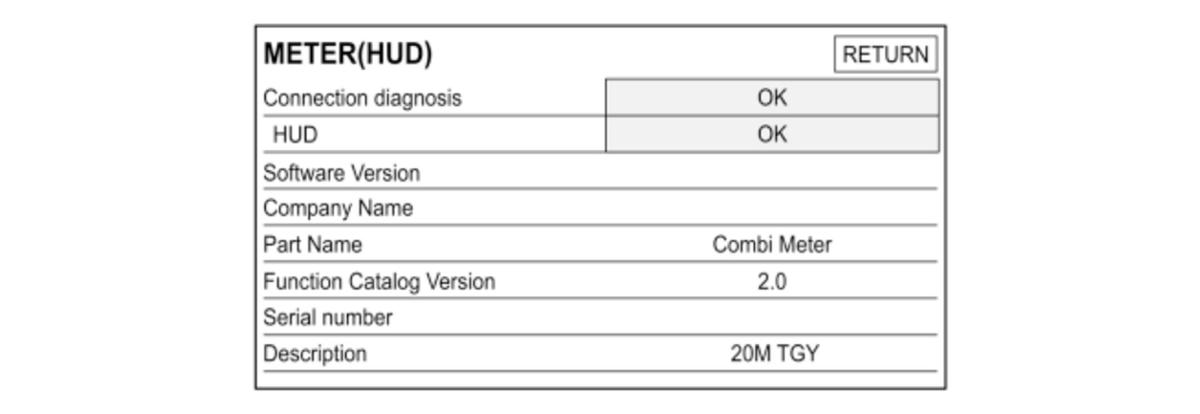

METER (HUD)

Courtesy of HONDA, U.S.A., INC.

CAN Gateways

NOTE: This diagnosis must have the engine running.

This diagnosis checks whether the infotainment control unit has received specific B-CAN or F-CAN data using the MOST bus.

If OK, an error is not detected between the B-CAN bus or the F-CAN bus and the infotainment control unit via the gateway.
If NOT OK, an error is detected on the gateway or each F-CAN or B-CAN data.

Select the item you want to check, and the test begins. To return to the previous screen, select the RETURN icon.

CAN Gateways
GATEWAY STATUS	FRAME
BODY	CLIMATE CONTROL
VEHICLE DIAGNOSTICS

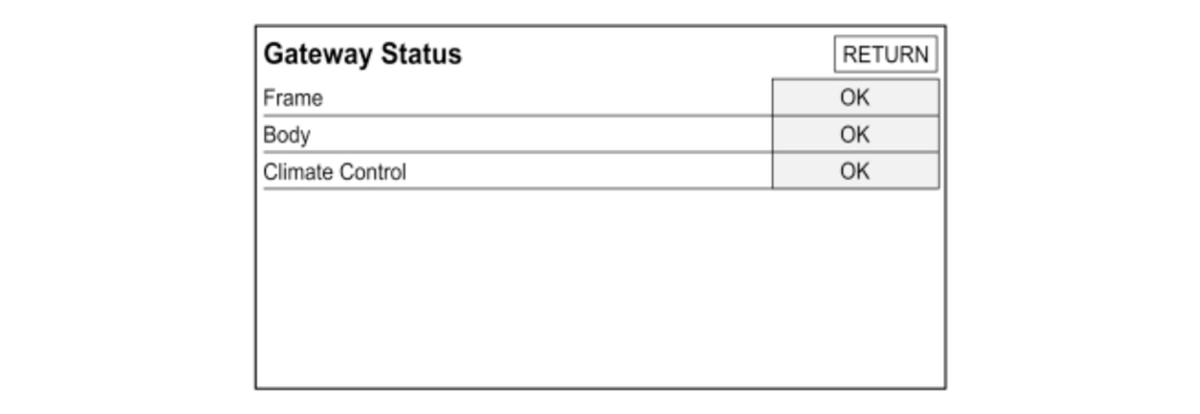

Gateway Status

Courtesy of HONDA, U.S.A., INC.

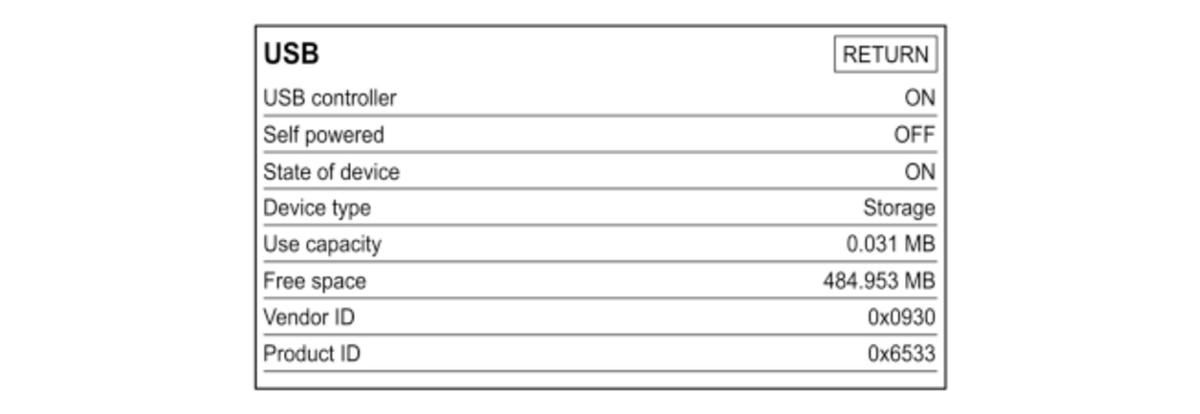

USB

This diagnosis displays the USB device status that is connected to the infotainment control unit.

If the USB memory device is connected to USB port A, the screen displays the USB controller status, the self powered status, and the device status.

When you connect a USB mass storage device, you can see the capacity used and the amount of free space available.

Courtesy of HONDA, U.S.A., INC.

TCU (With AcuraLink)

This diagnosis checks the telematics control unit connection.

If the Connection diagnosis shows NOT OK, go to AcuraLink services do not work troubleshooting - Refer to: AcuraLink Symptom Troubleshooting - AcuraLink services do not work or AcuraLink Symptom Troubleshooting - AcuraLink prompts or operator voice is weak or cannot be heard .

Courtesy of HONDA, U.S.A., INC.

TCU Diag (With AcuraLink)

This diagnosis shows the telematics control unit information via the USB between the infotainment control unit and the telematics control unit.

These diagnosis checks the telematics control unit status.

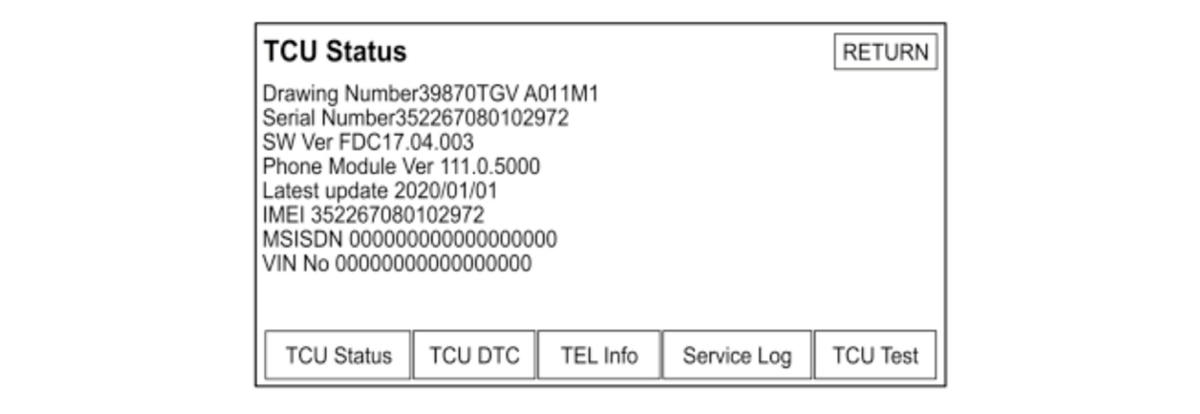

TCU Status: Displays telematics control unit information.
TCU DTC: Checks the telematics system DTCs. Go to AcuraLink General Troubleshooting Information .
TEL Info: Displays the phone module information.
Service Log: Displays the event log data (Type, Data, Time, Code) of the telematics control unit.
TCU Test: Checks the SMS function. Go to AcuraLink Self-Diagnostic Function .

Courtesy of HONDA, U.S.A., INC.

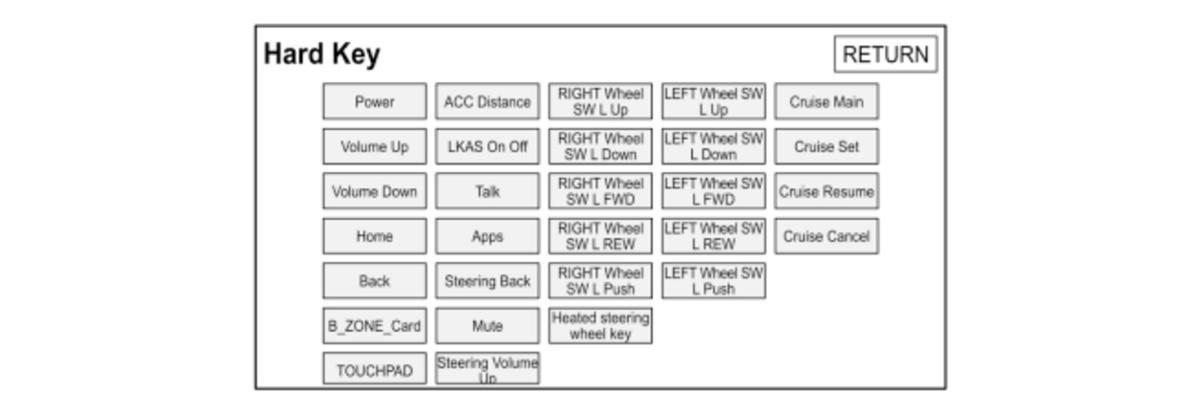

Hard Key

This diagnosis checks each keys on the touchpad unit, volume and seek switch, audio remote-HFL switch, and the ACC combination switch.

To complete the test, operate each keys. As each function is tested, the corresponding button on the display should highlight. If the test cannot be completed, the corresponding icon on the Hard Key menu screen shows red.

UNIT	KEY	If the KEY(s) does not Respond
Volume and seek switch	Power	Refer to appropriate Audio And Visual System Symptom Troubleshooting - Volume And Seek Switch Does Not Work Properly (Touchpad Unit Buttons Work).
	Volume Up
	Volume Down
Touchpad unit	Home	Intermittent failure Faulty infotainment control unit Faulty touchpad unit
	Back
	B-ZONE Card (Menu)
	TOUCHPAD
Audio remote-HFL switch	Talk	If any button of the audio remote-HFL switch does not respond, replace the audio remote-HFL switch . If all buttons of the audio remote-HFL switch do not respond, Audio And Visual System Symptom Troubleshooting - Audio Remote-Hfl Switch Does Not Work Properly (Touchpad Unit Buttons Work) .
	Apps
	Steering Back
	Mute
	Steering Volume Up
	LEFT Wheel SW (L Up, L Down, L FWD, L REW, L Push)
	Heated steering wheel key	Go to heated steering wheel switch test . Faulty heated steering wheel control unit.
ACC combination switch	ACC Distance	Go to ACC combination switch test .
	LKAS On Off
	Cruise Main
	Cruise Set
	Cruise Resume
	Cruise Cancel
	RIGHT Wheel SW (L Up, L Down, L FWD, L REW, L Push)	Faulty wire harness between the audio remote-HFL switch and the ACC combination switch Faulty ACC combination switch

Courtesy of HONDA, U.S.A., INC.

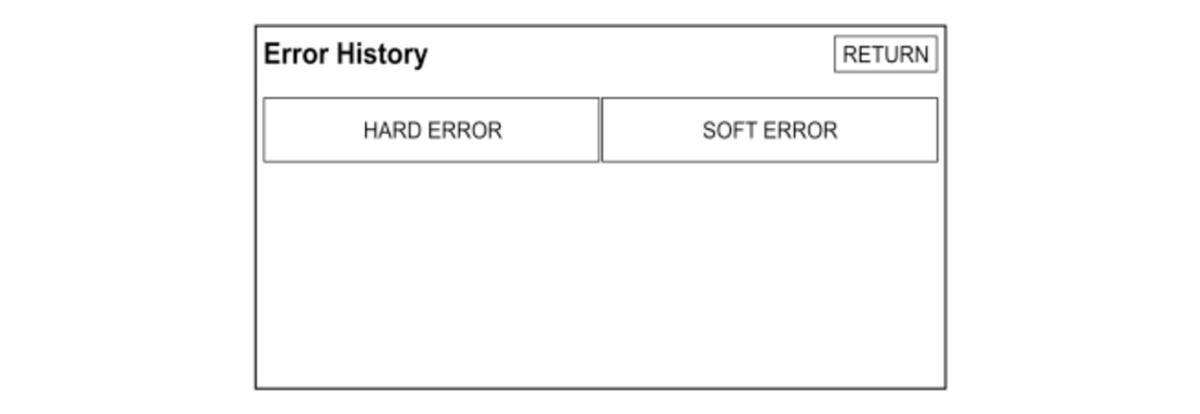

Error History

If you select the HARD ERROR or the SOFT ERROR, you can see the error information. Refer to How to Check for Error History to use this diagnosis .

Courtesy of HONDA, U.S.A., INC.

AM/FM/HD Radio

NOTE: For factory use only. Do not alter any settings unless directed.

This diagnosis displays the tuner unit status and check the function. If the AM/FM Available shows NOT OK, substitute a known-good tuner unit, and recheck .

Courtesy of HONDA, U.S.A., INC.

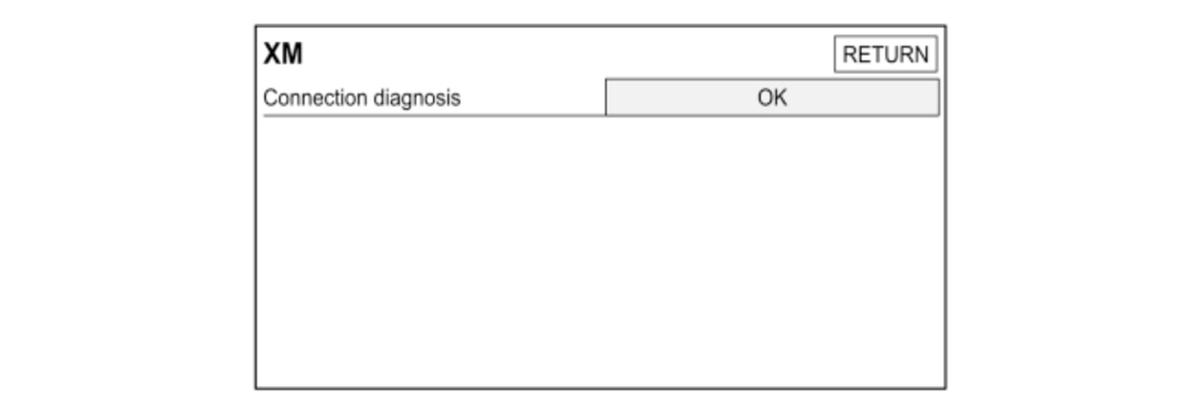

XM (With XM)

This diagnosis checks the XM tuner connection. The XM tuner is built into the tuner unit.

If the Connection diagnosis shows NOT OK, substitute a known-good tuner unit, and recheck .

Courtesy of HONDA, U.S.A., INC.

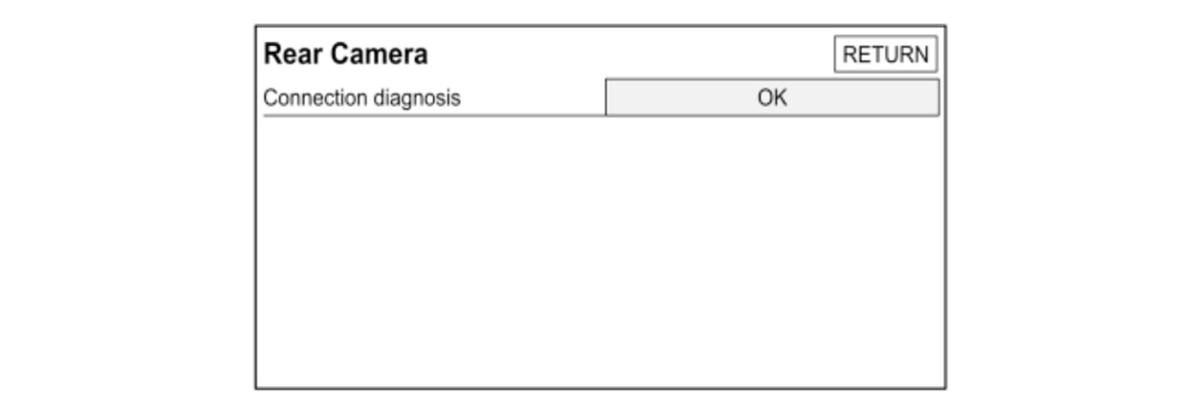

Rear Camera (Without Multi View Camera System)

This diagnosis checks the rearview camera connection.

If the Connection diagnosis shows NOT OK, refer to appropriate Audio And Visual System Symptom Troubleshooting - Rearview Camera Image Does Not Come On.

Courtesy of HONDA, U.S.A., INC.

MVC (Multi View Camera) (With Multi View Camera System)

This diagnosis checks the multi view camera unit connection.

If the Connection diagnosis shows NOT OK, go to Multi View Camera System troubleshooting .

Courtesy of HONDA, U.S.A., INC.

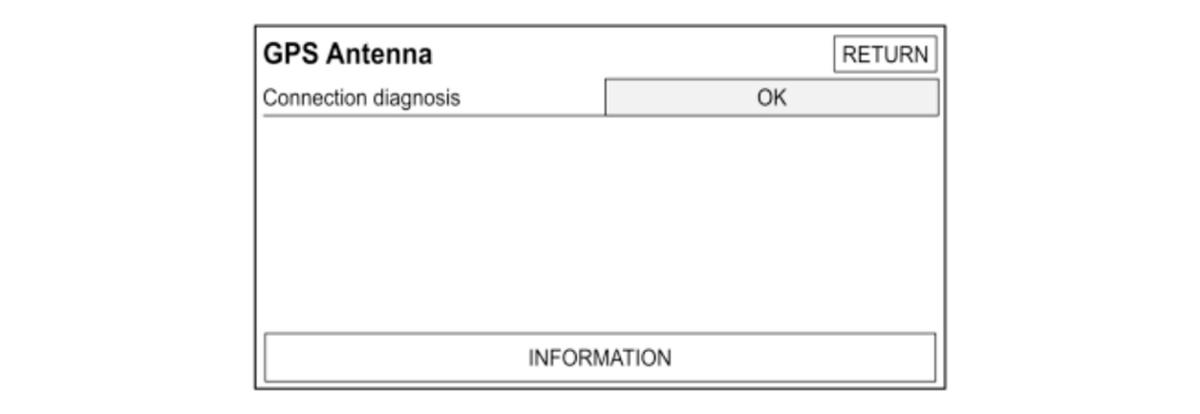

GPS Antenna

This diagnosis checks the roof antenna (GPS) connection.

If the Connection diagnosis shows NOT OK, the GPS antenna may be faulty. refer to appropriate Audio And Visual System Symptom Troubleshooting - No Gps Reception Or Interference.

Select the INFORMATION icon to see the GPS information screen.

Courtesy of HONDA, U.S.A., INC.

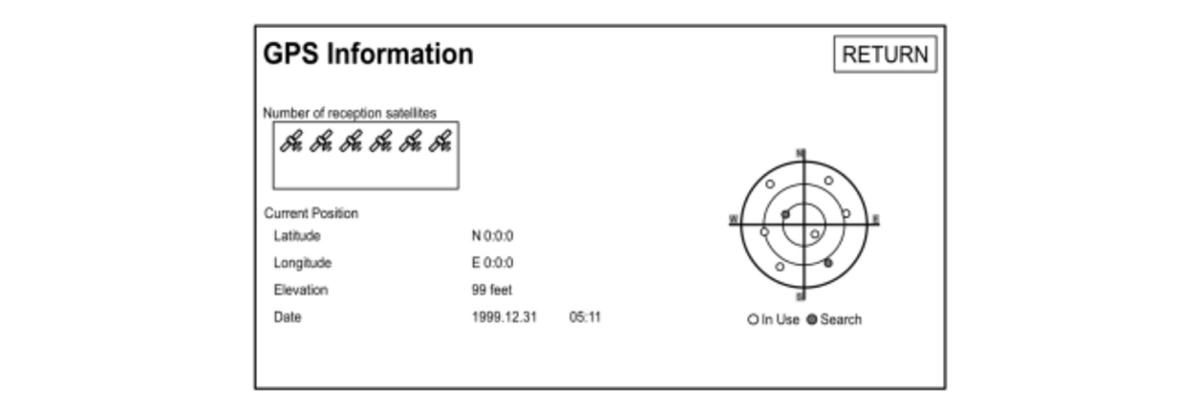

The GPS information screen shows the current status of GPS reception. The circular diagram shows the current location of the GPS satellites (yellow numbers) as they would appear in the sky. The outer circle represents the horizon (0 degrees elevation). The middle and inner circles represents 30 and 60 degrees respectively. The very center of the diagram (90 degrees elevation) is directly overhead. Nearby obstructions, like tall buildings will block satellites in that direction. That is why it is necessary to be in an open area to effectively troubleshoot GPS reception issues.

NOTE: When you use this screen for troubleshooting, park the vehicle outside, away from buildings, tall trees, and hightension wires for at least 10 minutes with the engine running.

The Number of reception satellites box shows the number of acquired satellites (maximum of 12). It should contain three or more icons.
The Current Position shows latitude, longitude, and elevation (in feet). If there are less than four satellites, the elevation can be grossly inaccurate.
The Date field shows the current date and time that is received from the GPS satellite.

Courtesy of HONDA, U.S.A., INC.

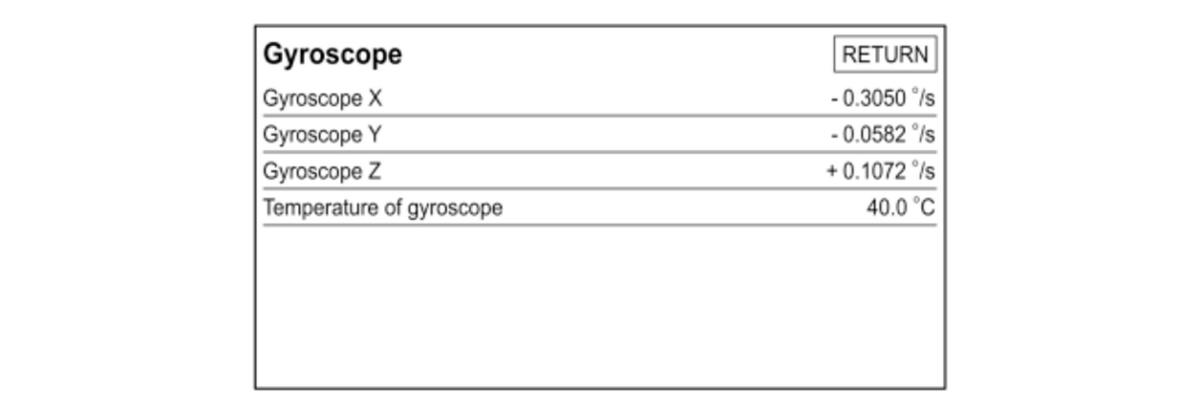

Gyroscope

This diagnosis checks the gyro sensor in the infotainment control unit. This devices detect how the vehicle moves, and repositions the vehicle position icon on the map screen.

Courtesy of HONDA, U.S.A., INC.

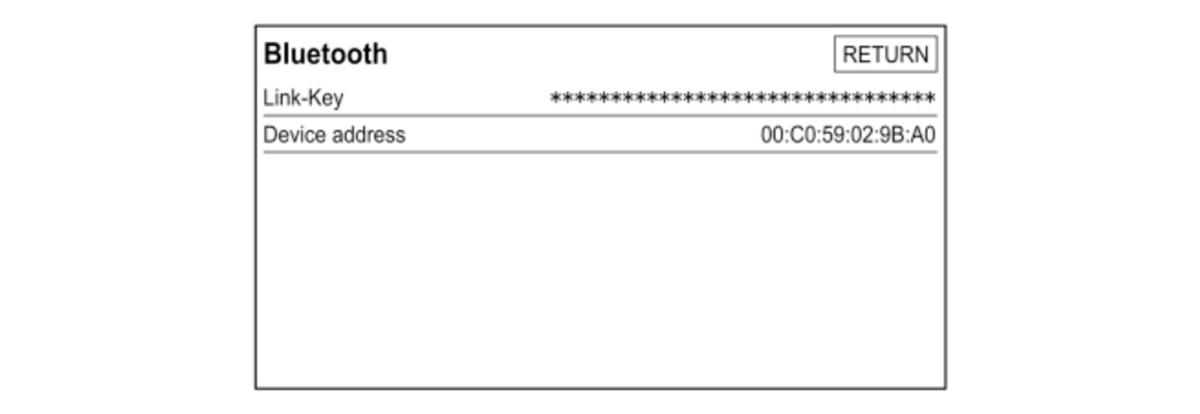

Bluetooth

This diagnosis checks for problems in the Bluetooth module. When the diagnosis is OK, displays the information of the Bluetooth module.

NOTE: Link-Key indicates when linking a Bluetooth cell phone to the infotainment control unit.

Courtesy of HONDA, U.S.A., INC.

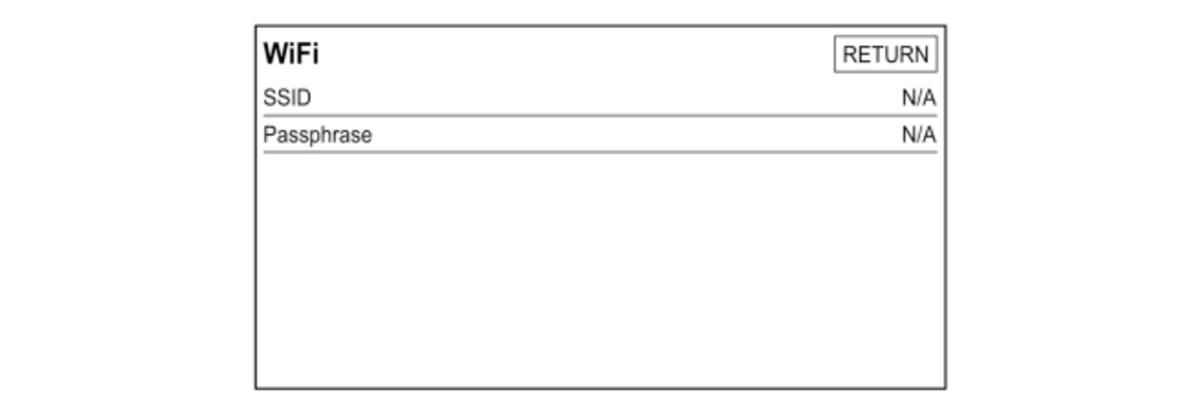

WIFI

This diagnosis checks for problems in the Wi-Fi module. When the diagnosis is OK, displays the information of the Wi-Fi module.

NOTE: These items indicate when linking a Wi-Fi device or a Wi-Fi access point to the infotainment control unit.

Courtesy of HONDA, U.S.A., INC.

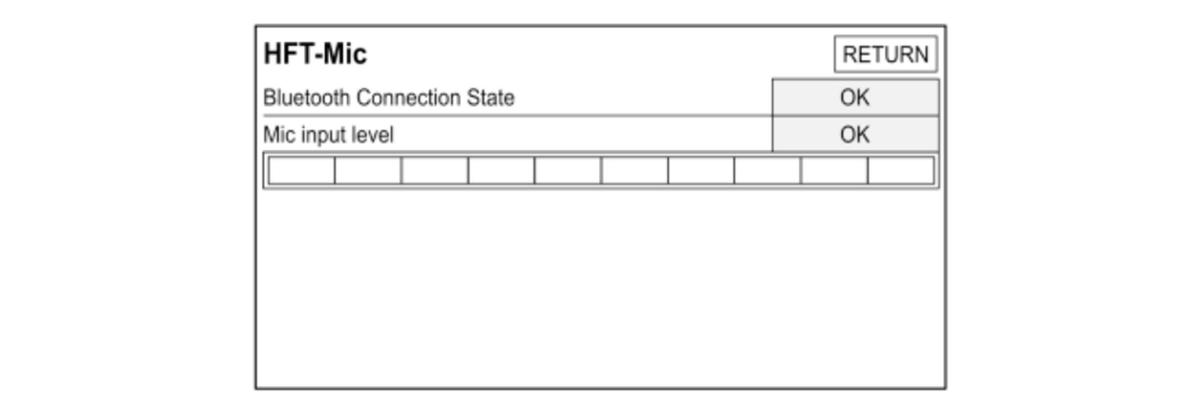

HFT-Mic

This diagnosis allows you to test the microphone. To properly check the microphone, make sure you are sitting in the driver's seat.

NOTE: Before this diagnosis, check the response of the TALK button on the audio remote-HFL switch by the Hard Key diagnosis.

If the Bluetooth Connection State shows NG, replace the infotainment control unit .
Press the TALK button, and within 5 seconds in a normal voice say \"testing\" toward the microphone in the roof module. The Mic Level indicator on the screen should momentarily turn green. The test is set to OK by indicating green more than 6 steps. If there is no Mic Level movement when you speak, refer to appropriate Audio And Visual System Symptom Troubleshooting - Microphone Does Not Recognize Driver's Or Front Passenger's Voice (Usa/Canada Models).

Courtesy of HONDA, U.S.A., INC.

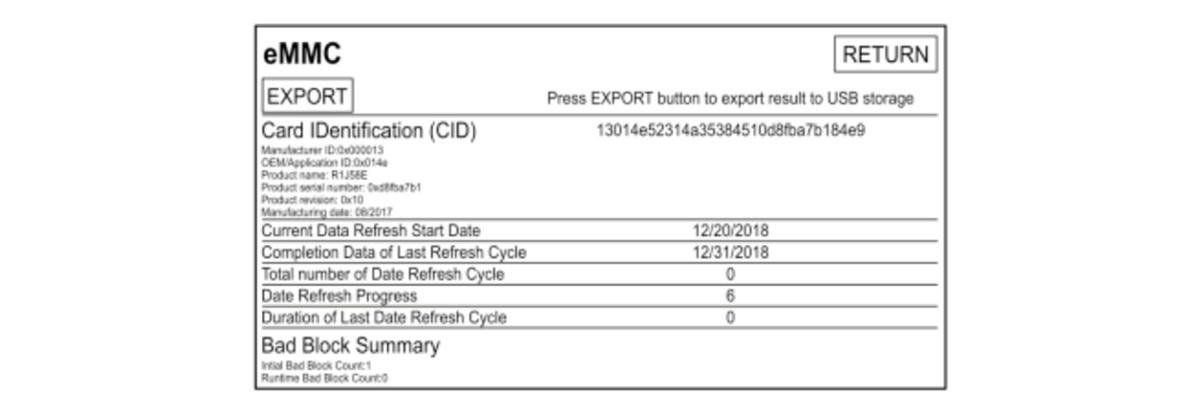

EMMC

This diagnosis checks connection to the EMMC (Embedded Multi Media Card). When you start this diagnosis, the infotainment control unit may freeze or delay up to a minute while the diagnosis runs.

The diagnostics result can be exported to the USB memory that connected to USB port A.

Courtesy of HONDA, U.S.A., INC.

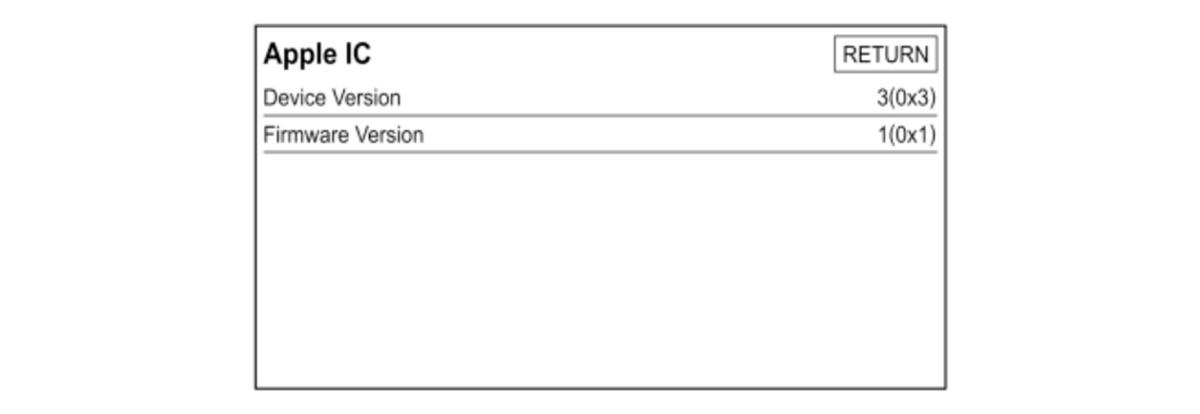

Apple IC

This diagnosis checks for problems in the Apple IC. When the diagnosis is OK, displays the information of the Apple IC.

Courtesy of HONDA, U.S.A., INC.

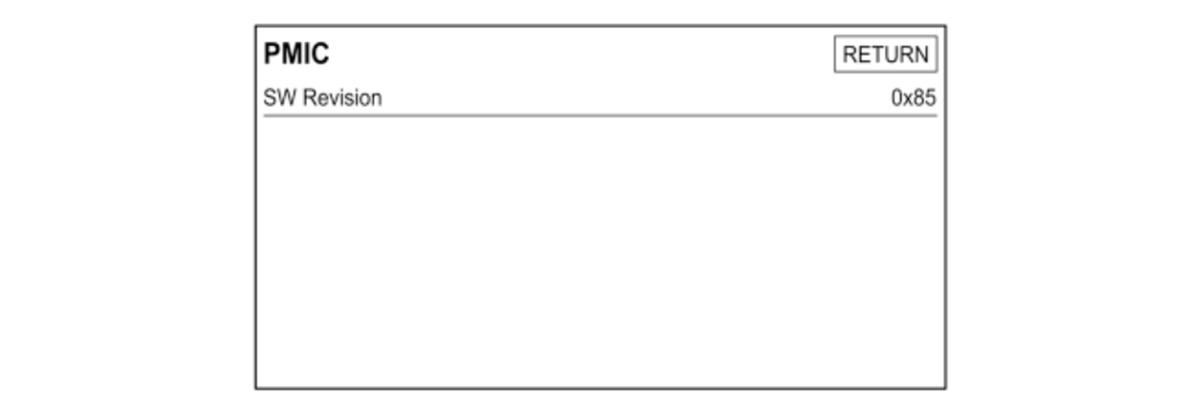

PMIC

This diagnosis checks for problems in the PMIC. When the diagnosis is OK, displays the information of the PMIC.

Courtesy of HONDA, U.S.A., INC.

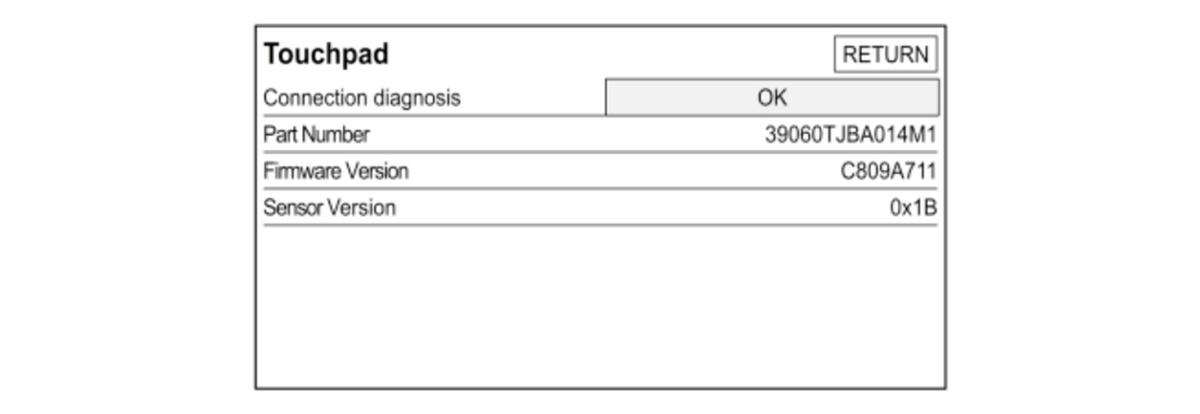

Touchpad

This diagnosis checks the digital bus (RS485) connection between the infotainment control unit and the touchpad unit.

When the Connection diagnosis is OK, displays the information of the touchpad unit.

Courtesy of HONDA, U.S.A., INC.
