Immobilizer/Security Indicator Test (2024 2025): Test

How to use this manual .

1. Immobilizer/Security Indicator - Test

   ? Preconditions

   • Center Console Center Panel Removed - Refer to: Electrical Component Locator and Service Information - Dashboard/Steering Hanger Beam Area Components

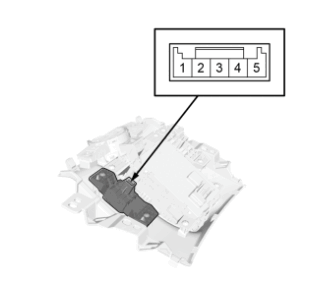

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the indicator according to the table. (Figure 1 and 2)

     NOTICE:

     • When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
     • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

   Result

   • If the result is not as specified, replace the immobilizer/security indicator - Refer to: Electrical Component Locator and Service Information - Dashboard/Steering Hanger Beam Area Components .
