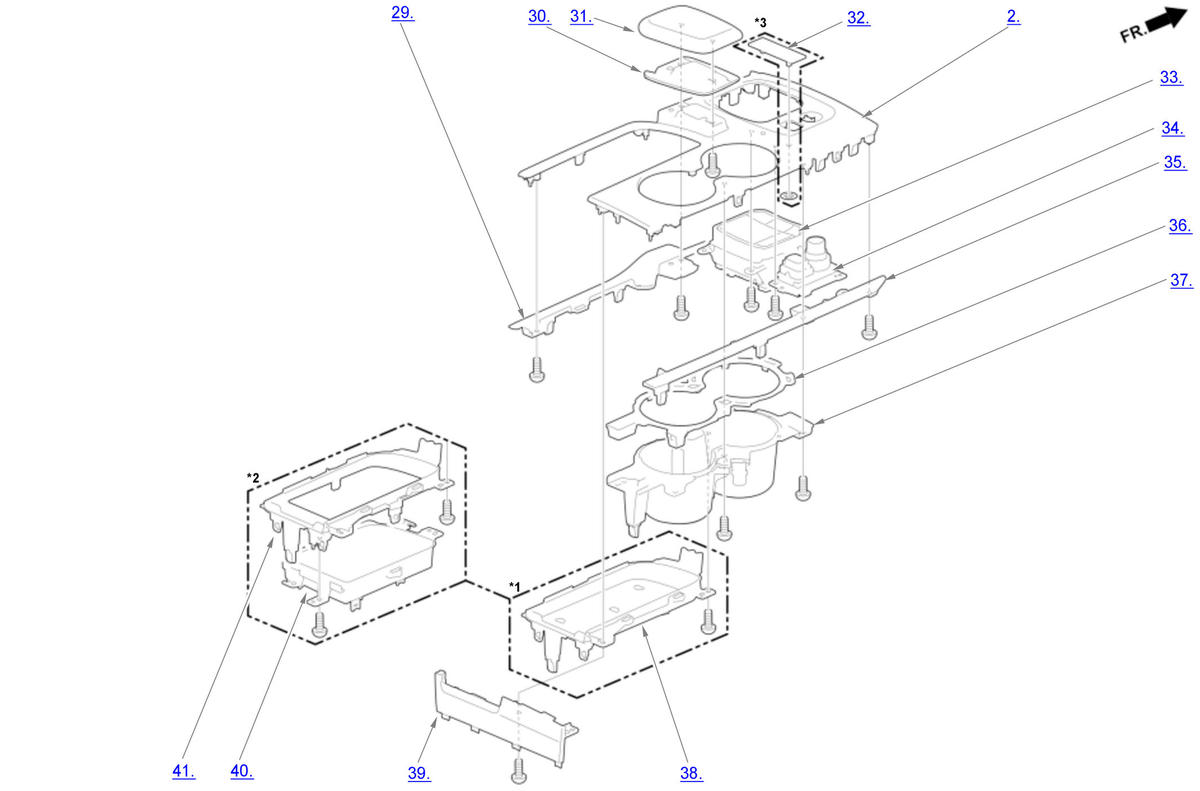

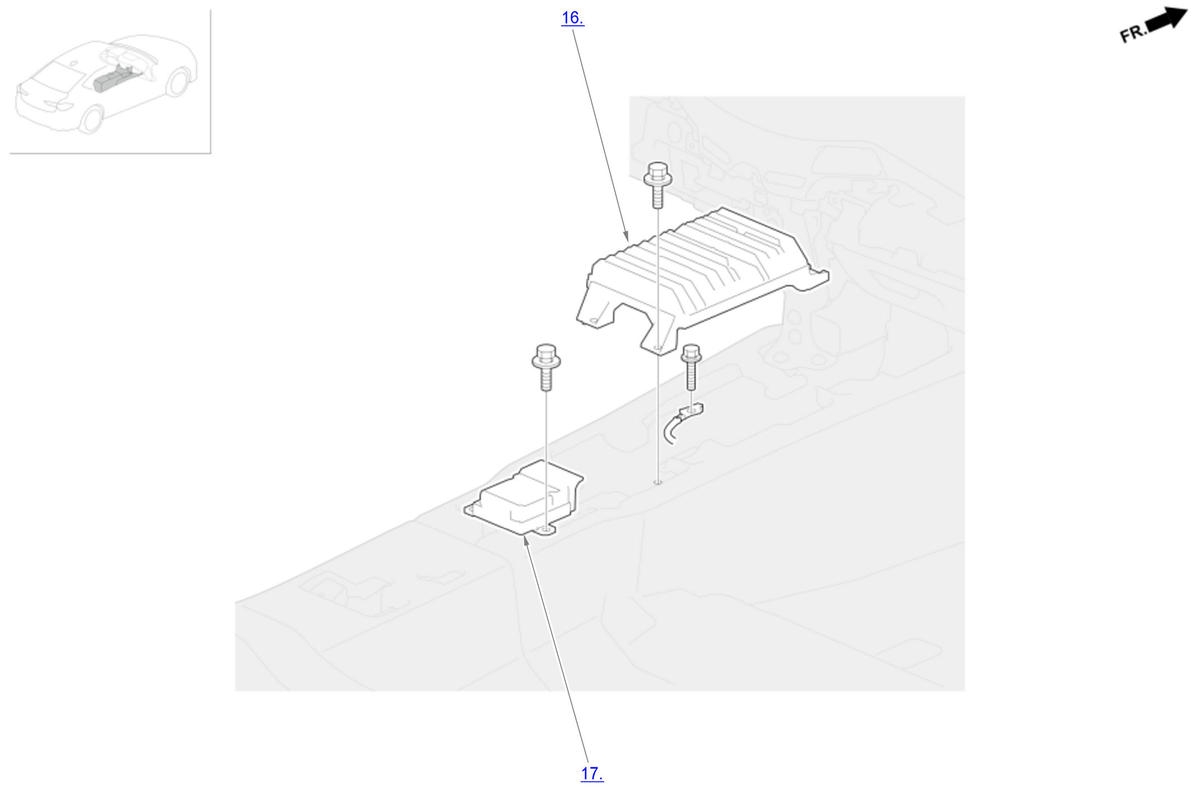

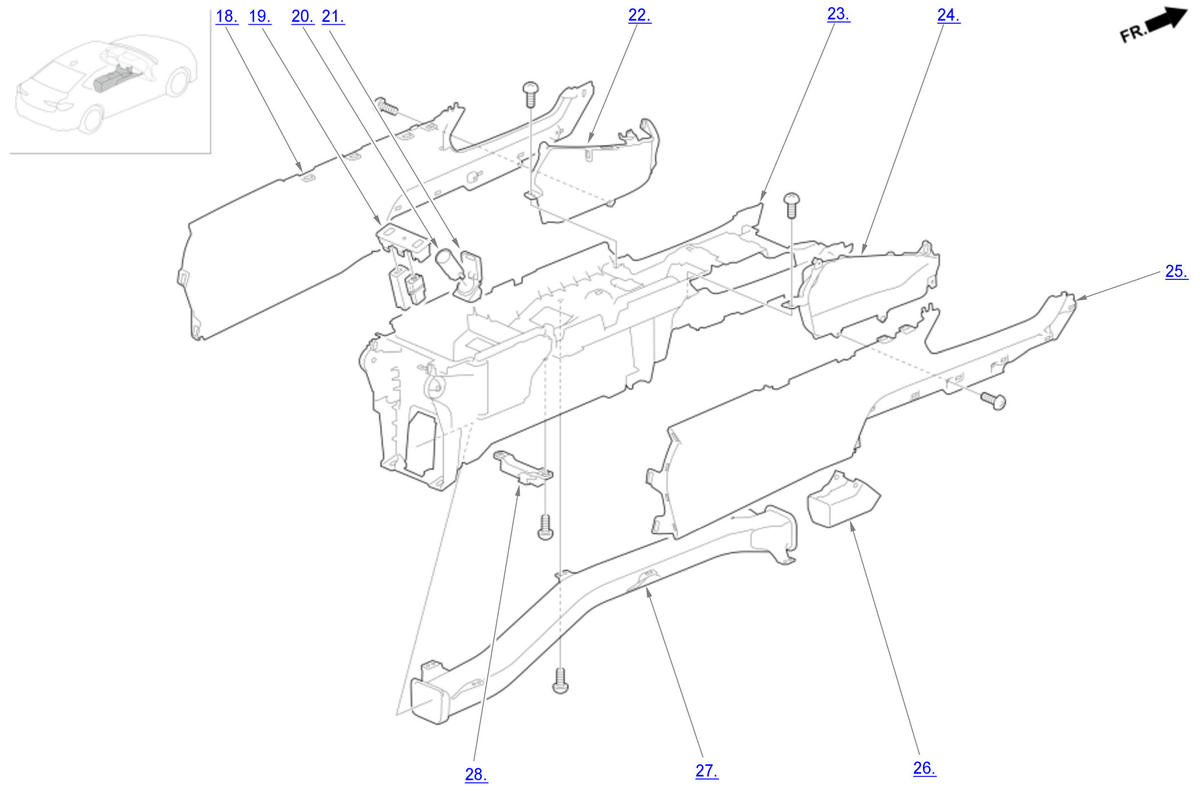

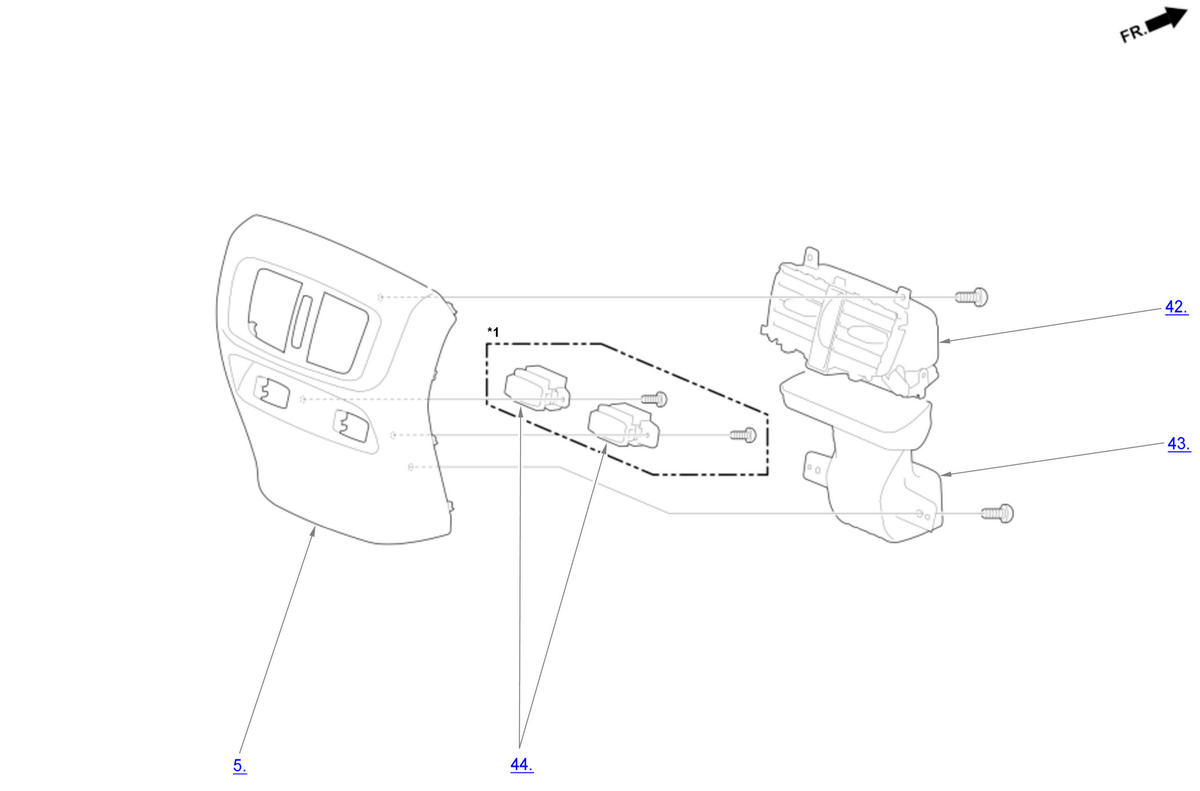

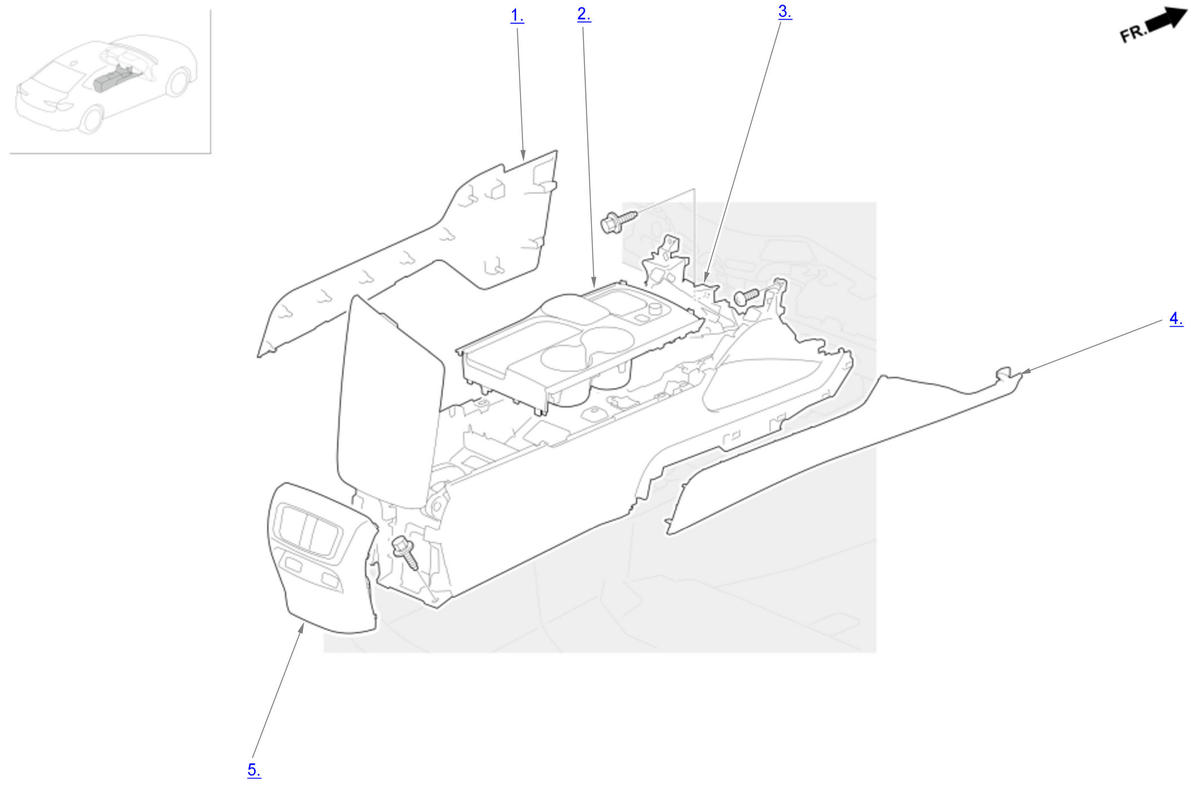

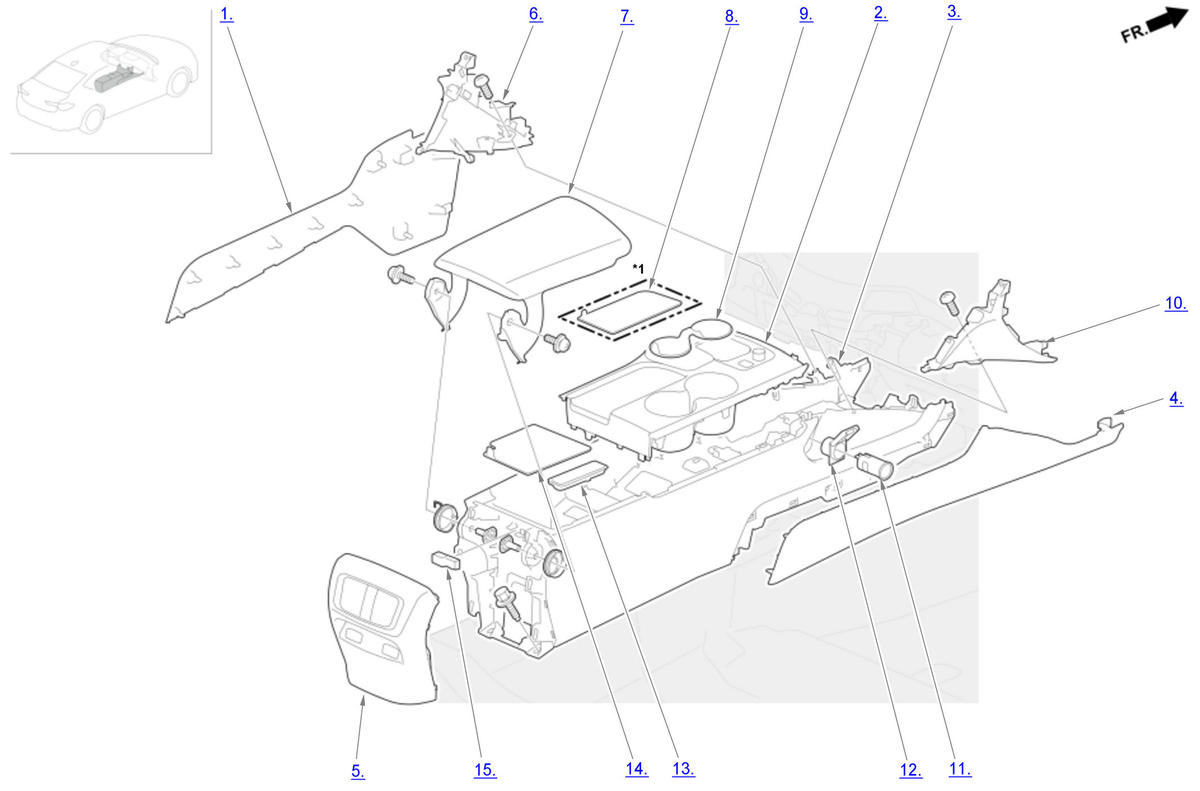

Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: With phone tray mat |
| *1: Without wireless charger unit *2: With wireless charger unit *3: For some models |
| *1: With rear seat heater |
Center Console Area Components
| Component Name | Callout |
|---|---|
| Driver's Center Console Cover | 1 |
| Center Console Panel | 2 |
| Center Console | 3 |
| Passenger's Center Console Cover | 4 |
| Center Console Rear Panel | 5 |
| Driver's Upper Pocket | 6 |
| Center Console Armrest | 7 |
| Phone Tray Mat | 8 |
| Cup Holder Mat | 9 |
| Passenger's Upper Pocket | 10 |
| Front Console Accessory Power Socket | 11 |
| Front Housing | 12 |
| Coin Pocket Mat | 13 |
| Center Console Box Mat | 14 |
| Ambient Light | 15 |
| Stereo Amplifier | 16 |
| SRS Unit | 17 |
| Driver's Center Console Panel | 18 |
| USB Holder | 19 |
| Rear Console Accessory Power Socket | 20 |
| Rear Housing | 21 |
| Driver's Lower Pocket | 22 |
| Center Console Box | 23 |
| Passenger's Lower Pocket | 24 |
| Passenger's Center Console Panel | 25 |
| Center Console Joint Duct | 26 |
| Center Console Duct | 27 |
| Front Interior LF Antenna | 28 |
| Driver's Trim | 29 |
| Palmrest Cover | 30 |
| Palmrest | 31 |
| Emblem Plate | 32 |
| Touchpad Unit | 33 |
| VOL and Seek Switch | 34 |
| Passenger's Trim | 35 |
| Cup Holder Trim | 36 |
| Cup Holder | 37 |
| Phone Tray Substrate | 38 |
| Center Console Back Cover | 39 |
| Wireless Charger Unit | 40 |
| Wireless Charger Unit Tray Substrate | 41 |
| Rear Vent | 42 |
| Rear Duct | 43 |
| Rear Seat Heater Switch | 44 |
