Exploded View

For replacement of components listed below, see Repair Procedure .

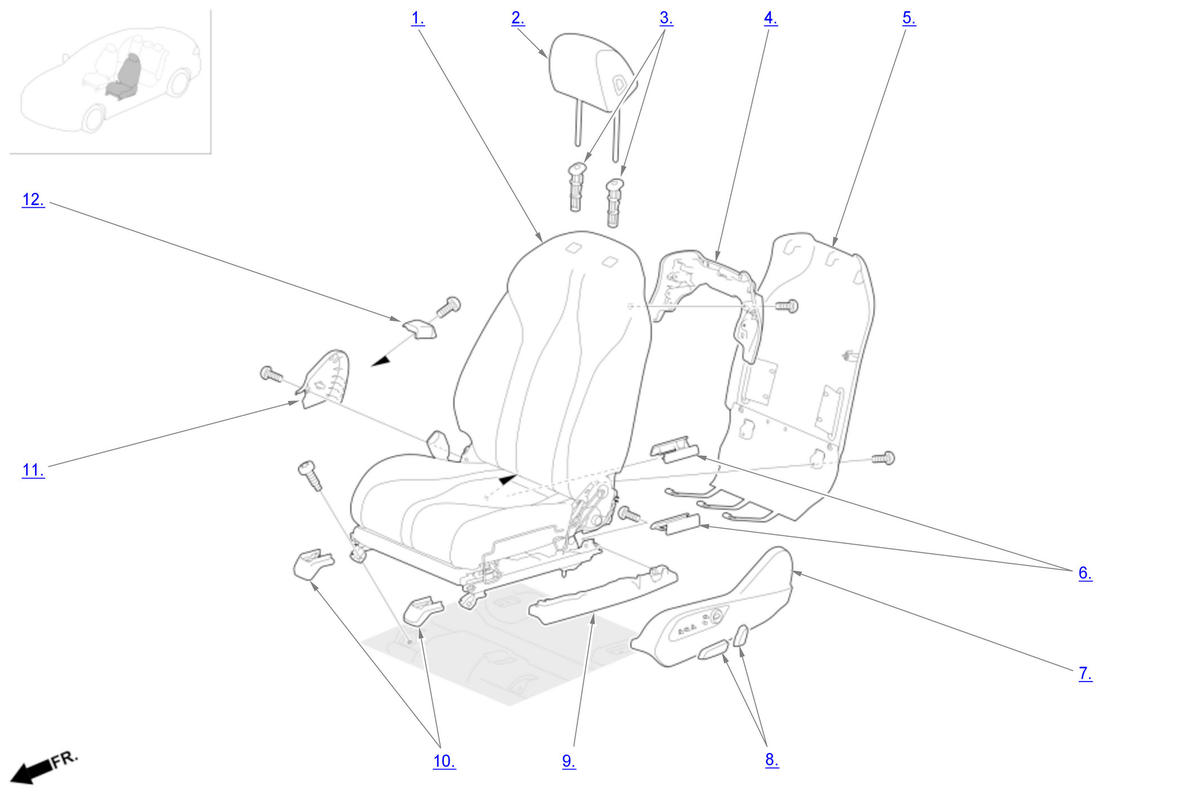

GHH561383Courtesy of HONDA, U.S.A., INC.

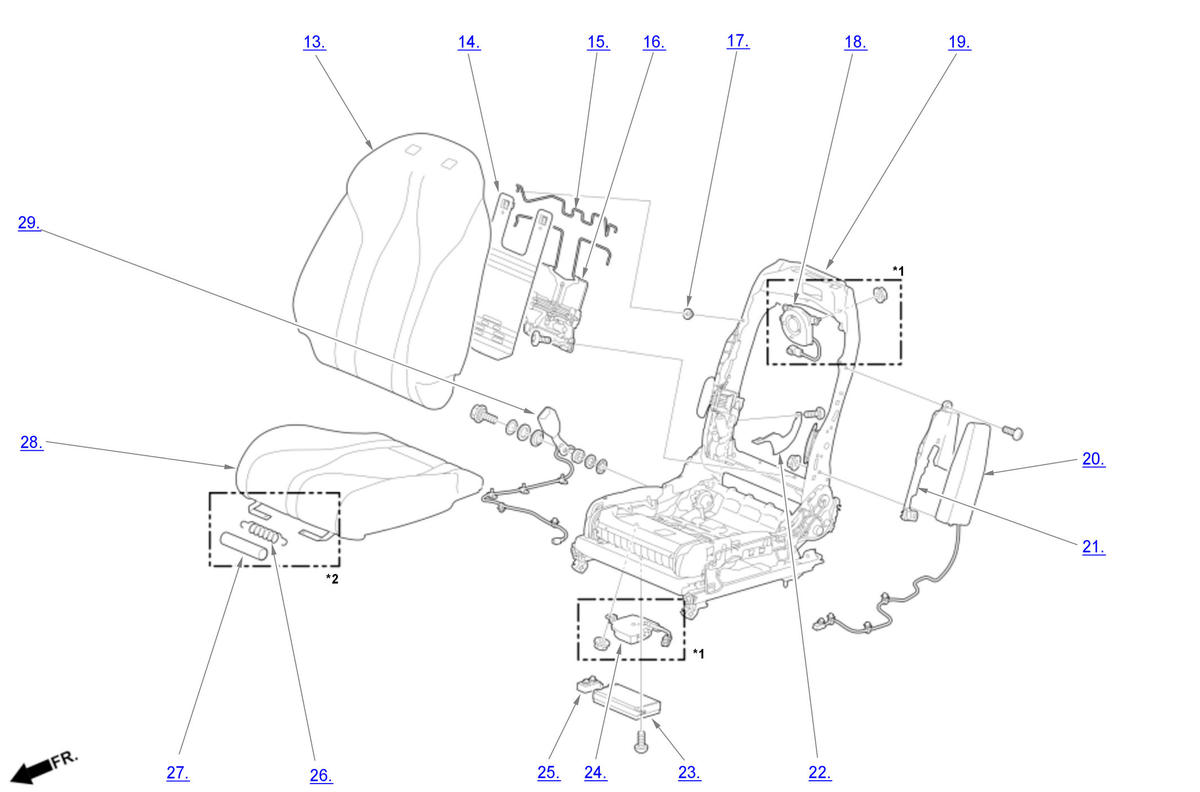

GHH561384Courtesy of HONDA, U.S.A., INC.
*1: With ventilated seat
*2: With 16-way power seat

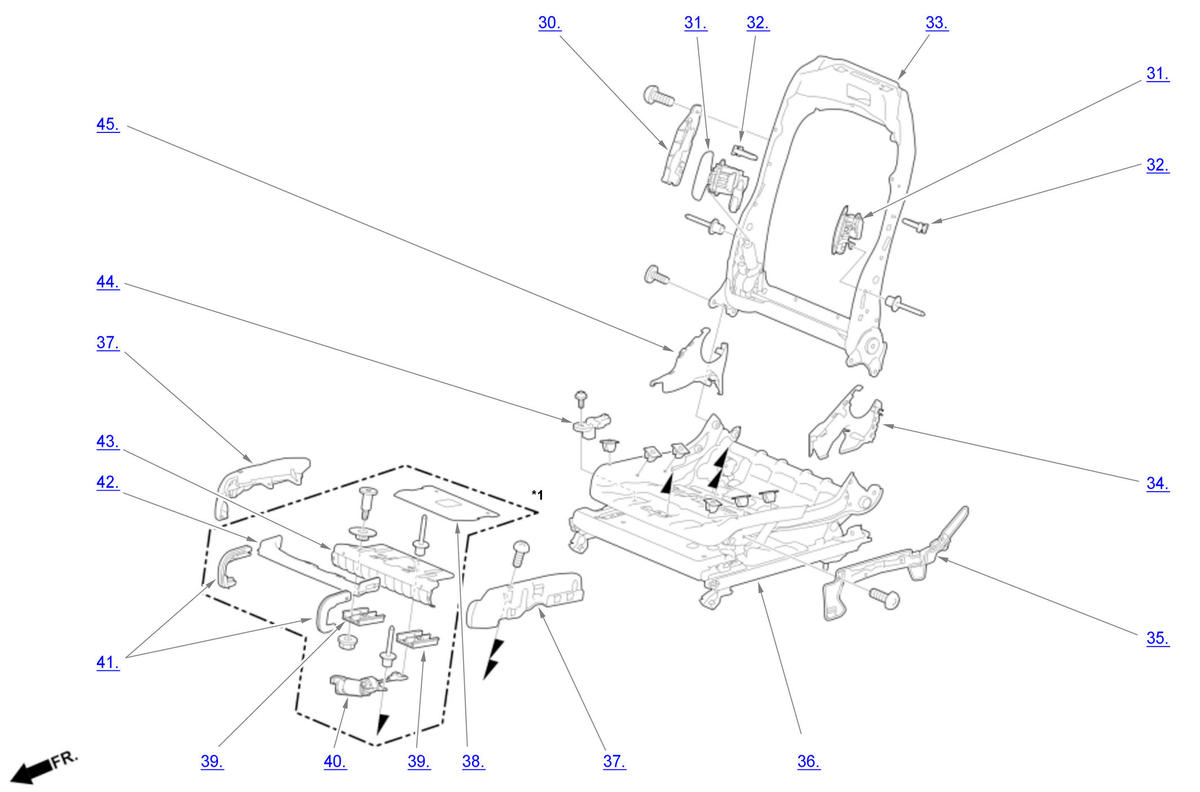

GHH561385Courtesy of HONDA, U.S.A., INC.
*1: With 16-way power seat

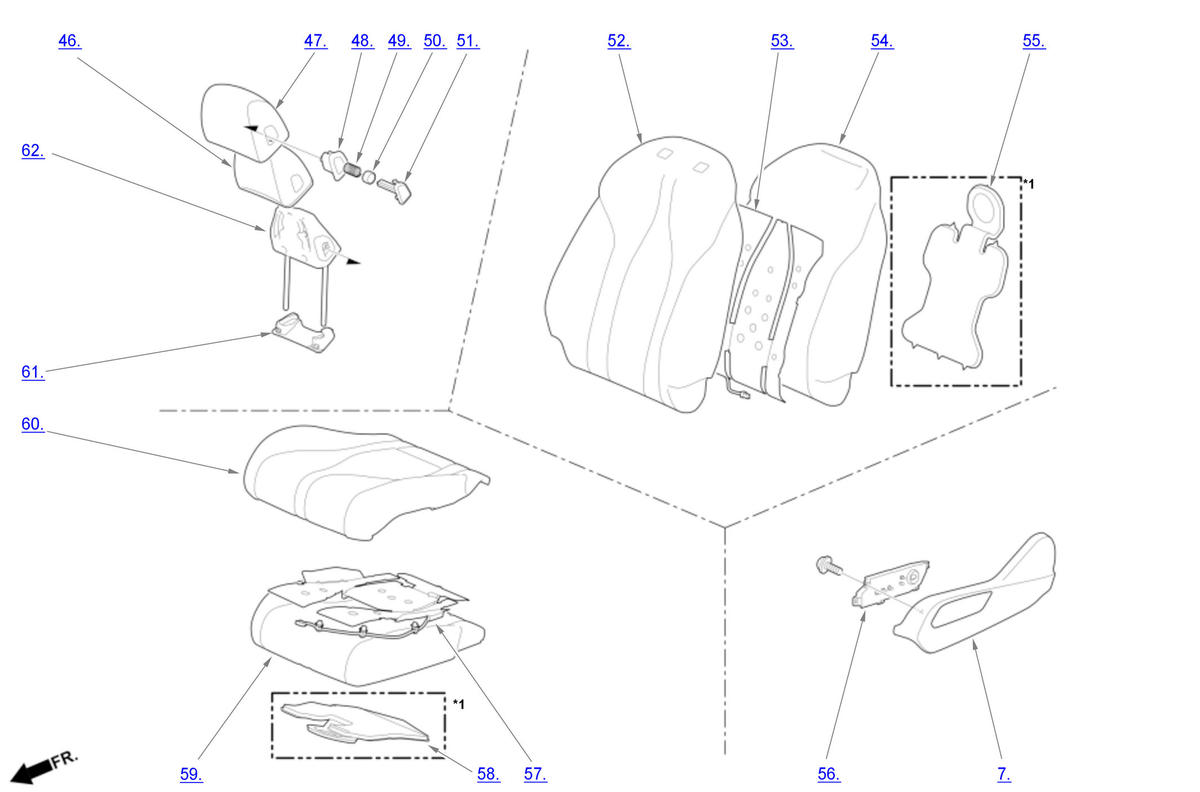

GHH561386Courtesy of HONDA, U.S.A., INC.
*1: With ventilated seat
Front Seat Area Components

Component Name Callout
Driver's Seat 1
Head Restraint 2
Head Restraint Guide 3
Driver's Seat-Back Inner Cover 4
Driver's Seat-Back Outer Panel 5
Driver's Seat Rear Foot Cover 6
Driver's Seat Outer Recline Cover 7
Knobs 8
Upper Rail Outer Cover 9
Driver's Seat Front Foot Cover 10
Driver's Seat Inner Recline Cover 11
Upper Rail Inner Cover 12
Driver's Seat-Back Cover/Pad 13
Lumbar Support Mat 14
Lumbar Support Upper Wire 15
Driver's Seat Lumbar Support 16
Lumbar Support Upper Wire Bushing 17
Driver's Seat-Back Blower Motor 18
Seat Frame 19
Left Side Airbag 20
Left Side Airbag Holder 21
Height Motor Cover 22
Power Seat Control Unit 23
Driver's Seat Cushion Blower Motor 24
Ventilated Seat Control Unit or Seat Heater Control Unit 25
Spring 26
Tube 27
Driver's Seat Cushion Cover/Pad 28
Driver's Seat Belt Buckle 29
Seat-Back Bolster Cover 30
Bolster Motor 31
Lumbar Support Lower Wire Clip 32
Driver's Seat-Back Frame 33
Recline Outer Cover 34
Driver's Seat Cushion Outer Bracket 35
Driver's Seat Cushion Frame 36
Driver's Seat Cushion Bolster Cover 37
Power Thigh Support Plate 38
Power Thigh Support Carrier Slider 39
Power Thigh Support Motor 40
Carrier Side Cover 41
Power Thigh Support Carrier Cover 42
Power Thigh Support 43
Driver's Seat Position Sensor 44
Recline Inner Cover 45
Head Restraint Trim Pad 46
Head Restraint Trim Cover 47
Head Restraint Button Trim 48
Head Restraint Button Spring 49
Head Restraint Button Spring Cover 50
Head Restraint Adjust Button 51
Driver's Seat-Back Cover 52
Driver's Seat-Back Heater 53
Driver's Seat-Back Pad 54
Driver's Seat-Back Ventilation Bag 55
Driver's Power Seat Adjustment Switch/Knob/Outer Recline Cover 56
Driver's Seat Cushion Heater 57
Driver's Seat Cushion Ventilation Bag 58
Driver's Seat Cushion Pad 59
Driver's Seat Cushion Cover 60
Head Restraint Under Trim 61
Head Restraint Frame 62
