Inspection Outline

The components to be tested are indicated by a dotted line.

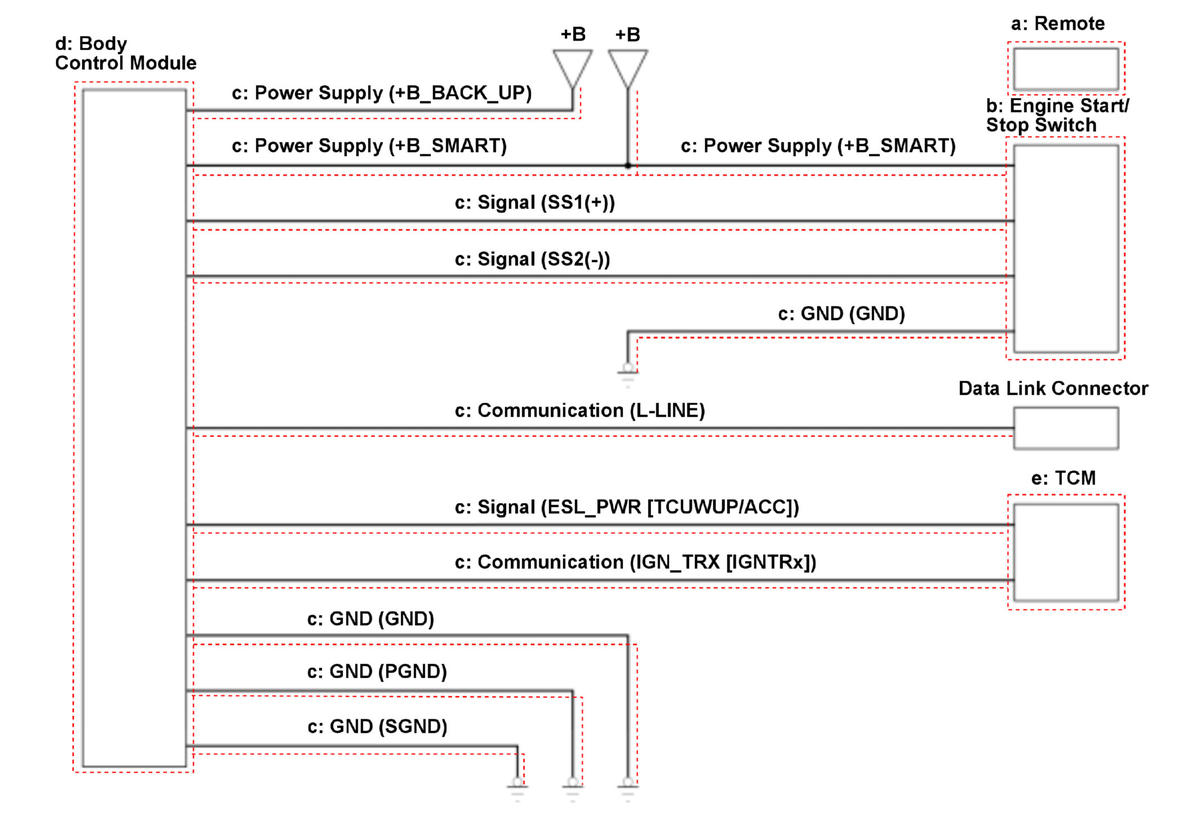

GHH487388

Courtesy of HONDA, U.S.A., INC.

Troubleshoot any DTCs listed or indicated systems below first.
- Keyless Access System [Keyless Access Control Unit], [Backup Control Unit], [Power Control Unit]: Go to the indicated DTC's troubleshooting .

NOTE: For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.

(Application 1) Do the HDS [Self Check]
- The system communicate with the HDS:
- The system does not communicate with the HDS:

(Application 2) Reboot the HDS and select YES when asked if the vehicle has keyless access system, this selects the forced ON mode
- The system changes to forced ON mode:
- The system does not change to forced ON mode:

Inspection Items		Work Items	Application 1		Application 2
Inspection Items		Work Items
a	Remote	Do the Keyless Access Remote Test	o	o	o	o
b	Engine Start/Stop Switch	Do the Engine Start/Stop Switch Test	o	o	o	o
c	External Circuit	+B_SMART, SS1(+), SS2(-), GND Circuit Inspection		o
		+B_BACK_UP, +B_SMART, GND, PGND, SGND Circuit Inspection	o	o		o
		IGN_TRX [IGNTRx], ESL_PWR [TCUWUP/ACC] Circuit Inspection	o	o		o
		L-LINE Circuit Inspection		o
d	Body Control Module	Body Control Module Inspection	o	o	o	o
e	TCM	TCM Inspection	o	o	o	o
