Front Lighting Control Unit Connector for Inputs and Outputs
| Connector Index |
| Left Headlight 8P Connector |
| Right Headlight 8P Connector |

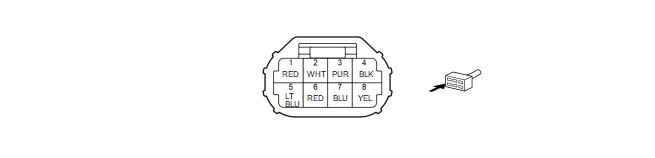

Left Headlight Connector (8P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
+B_BACK_UP |
Power source for left front lighting control unit |
| 2 |
BB-CAN_H |
Communication line |
| 3 |
L_TURN |
Detects L_TURN signal |
| 4 |
GND |
Ground for left front lighting control unit |
| 5 |
+B_LCM_L |
Power source for left front lighting control unit |
| 6 |
BB-CAN_L |
Communication line |
| 7 |
IG1_OPTION |
IG1 power source |
| 8 |
H/L_ON_SW |
Detects H/L_ON_SW signal |

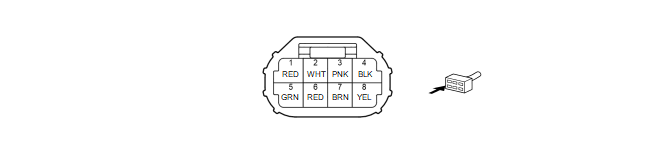

Right Headlight Connector (8P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
+B_BACK_UP |
Power source for right front lighting control unit |
| 2 |
BB-CAN_H |
Communication line |
| 3 |
R_TURN |
Detects R_TURN signal |
| 4 |
GND |
Ground for right front lighting control unit |
| 5 |
+B_LCM_R |
Power source for right front lighting control unit |
| 6 |
BB-CAN_L |
Communication line |
| 7 |
IG1_METER |
IG1 power source |
| 8 |
H/L_ON_SW |
Detects H/L_ON_SW signal |
