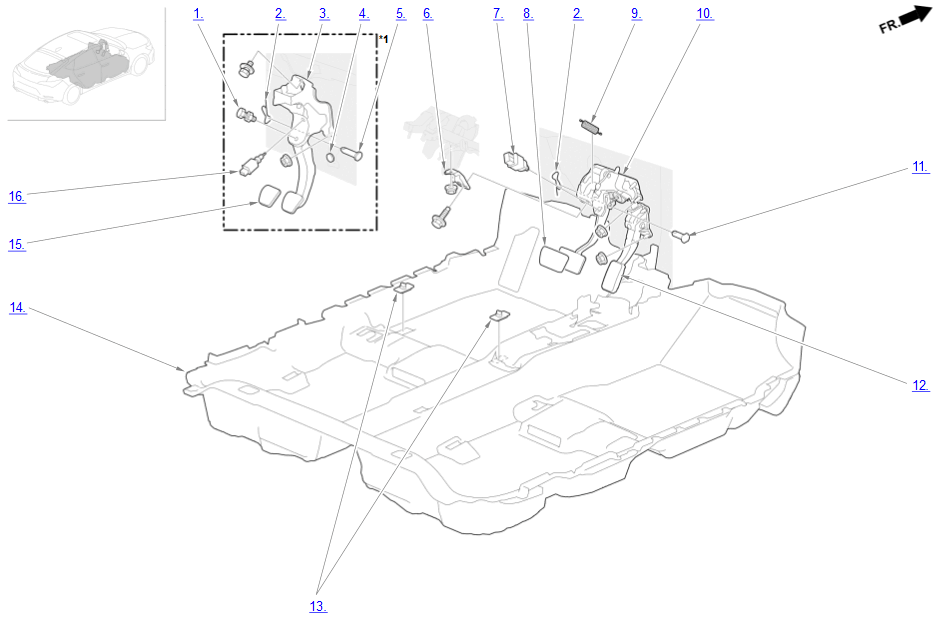

Exploded View
For replacement of components listed below, see Repair Procedure
*1: M/T
Pedals Area Components
| Component Name | Callout |
|---|---|
| Clutch Pedal Adjusting Bolt | 1 |
| Lock Pin | 2 |
| Clutch Pedal | 3 |
| Clutch Pedal Stopper | 4 |
| Clutch Pedal Pin | 5 |
| Brake Pedal Stay | 6 |
| Brake Pedal Position Switch | 7 |
| Brake Pedal Cover | 8 |
| Return Spring | 9 |
| Brake Pedal | 10 |
| Yoke Pin | 11 |
| Accelerator Pedal Module | 12 |
| Floor Mat Holder | 13 |
| Carpet | 14 |
| Clutch Pedal Cover | 15 |
| Clutch Pedal Position Switch A | 16 |
