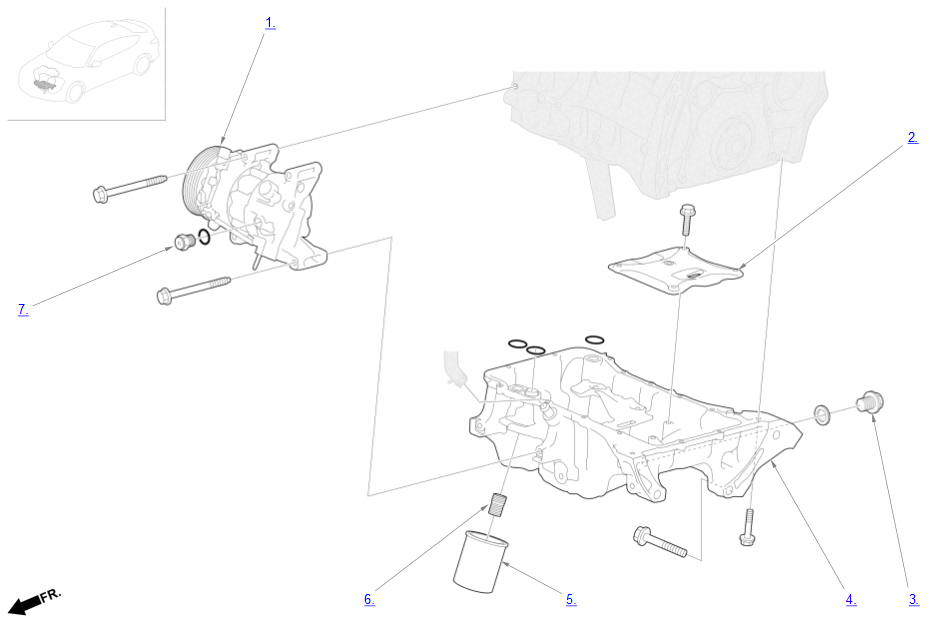

Exploded View
For replacement of components listed below, see Repair Procedure
A-C_Compressor-Engine_Oil_Pan_Area (1.5L_Engine) Components
| Component Name | Callout |
|---|---|
| A/C Compressor | 1 |
| Baffle Plate A | 2 |
| Drain Bolt | 3 |
| Oil Pan | 4 |
| Oil Filter | 5 |
| Oil Filter Feed Pipe | 6 |
| A/C Compressor Relief Valve | 7 |
