Exploded View
For replacement of components listed below, see Repair Procedure
Chain Case-Cam Chain Area (1.5L Engine) Components
| Component Name | Callout |
|---|---|

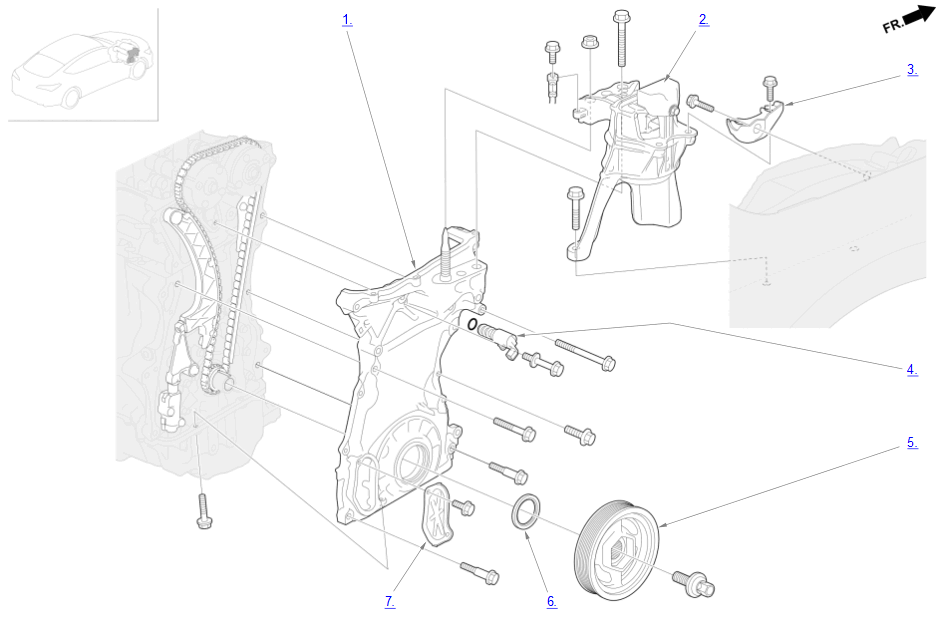

| Cam Chain Case | 1 |
| Side Engine Mount | 2 |
| Side Engine Mount Bracket | 3 |
| VTC Oil Control Solenoid Valve A | 4 |
| Crankshaft Pulley | 5 |
| Pulley End Crankshaft Oil Seal | 6 |
| Chain Case Cover | 7 |

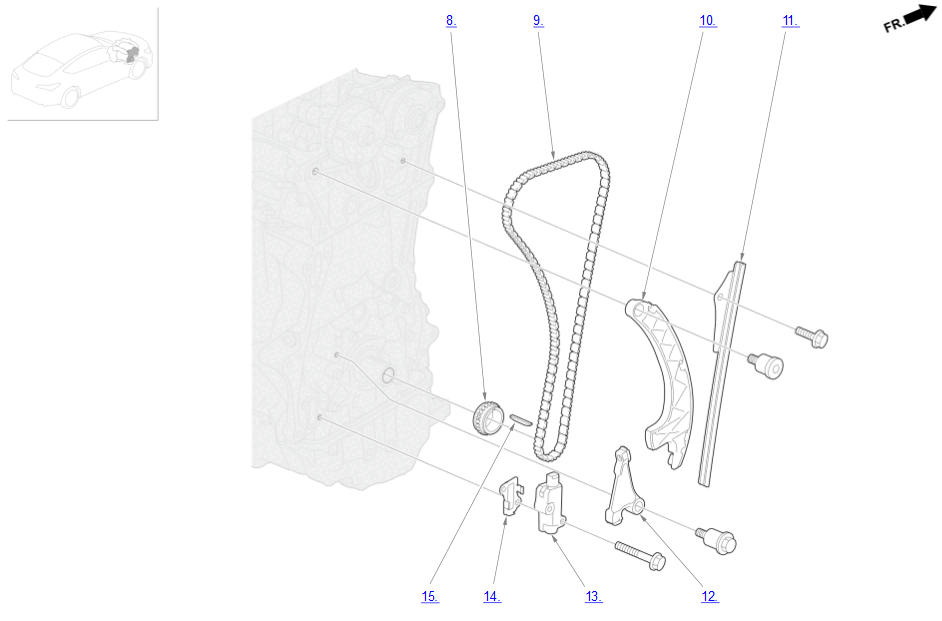

| Cam Chain Drive Sprocket | 8 |
| Cam Chain | 9 |
| Cam Chain Tensioner Arm | 10 |
| Cam Chain Guide | 11 |
| Cam Chain Tensioner Sub Arm | 12 |
| Cam Chain Auto-Tensioner | 13 |
| Cam Chain Auto-Tensioner Filter | 14 |
| Key | 15 |
