Exploded View

For replacement of components listed below, see Repair Procedure

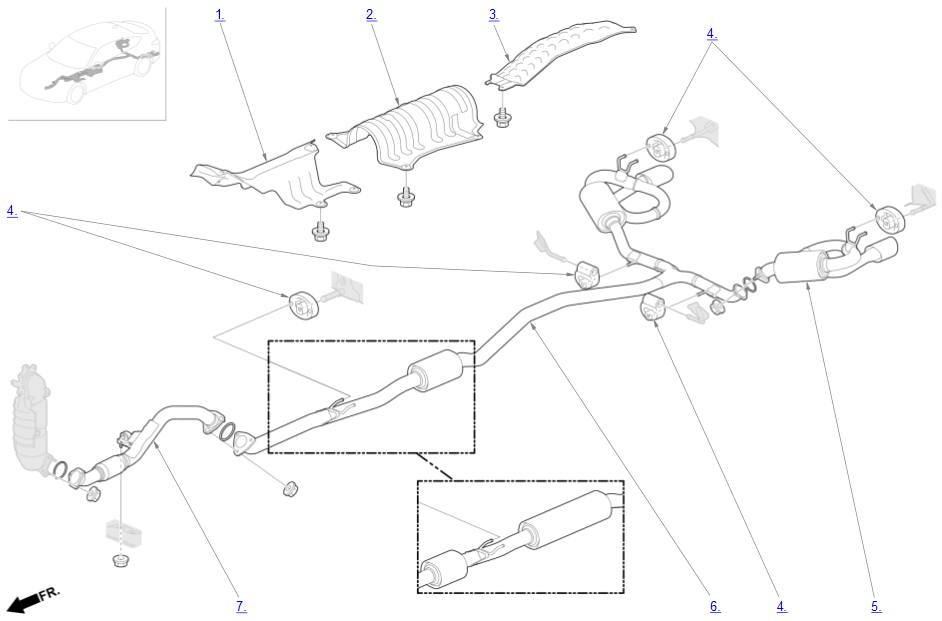

GHH654550Courtesy of HONDA, U.S.A., INC.

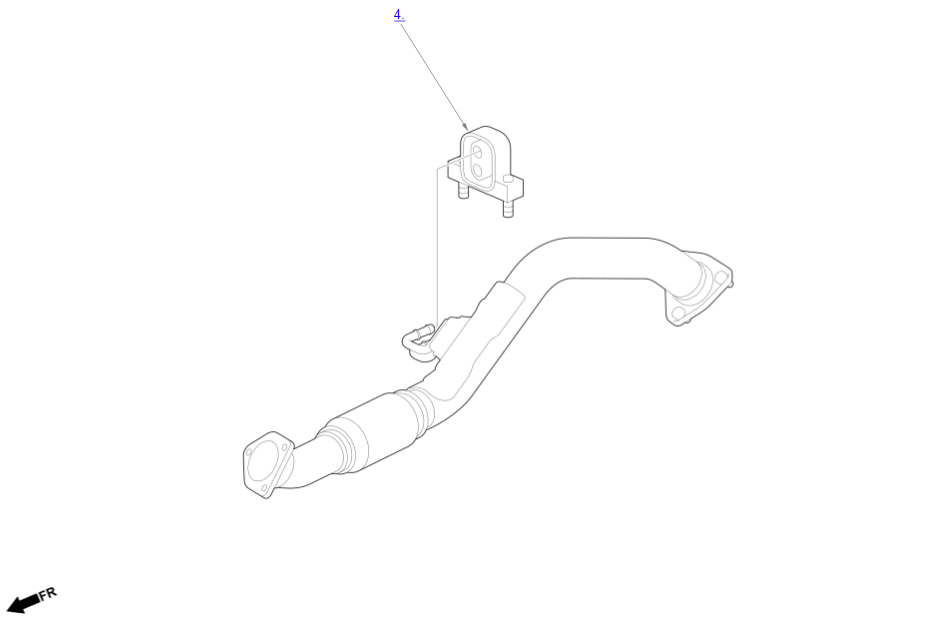

GHH654551Courtesy of HONDA, U.S.A., INC.
Exhaust Pipe/Muffler Area (1.5L Engine) Components

Component Name Callout
Floor Heat Baffle Plate A 1
Floor Heat Baffle Plate B 2
Fuel Tank Heat Baffle 3
Rubber Mount 4
Left Muffler 5
Muffler 6
Exhaust Pipe A 7
