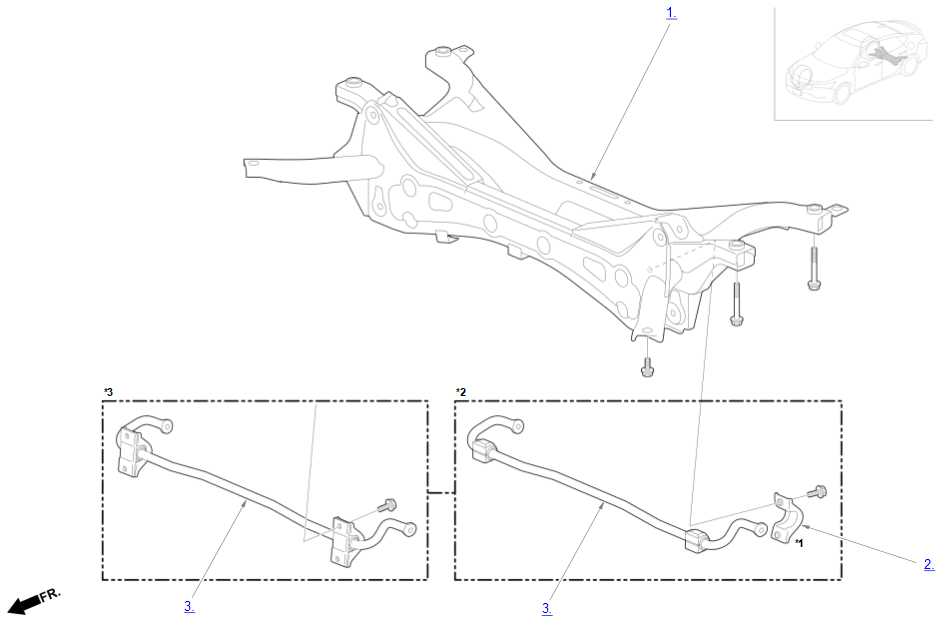

Exploded View
For replacement of components listed below, see Repair Procedure
*1: Part(s) are shown for one side only as the procedure is the same for both sides.
*2: Type A
*3: Type B
Rear Subframe Area Components
| Component Name | Callout |
|---|---|
| Rear Subframe | 1 |
| Bushing Holder | 2 |
| Rear Stabilizer Bar | 3 |
