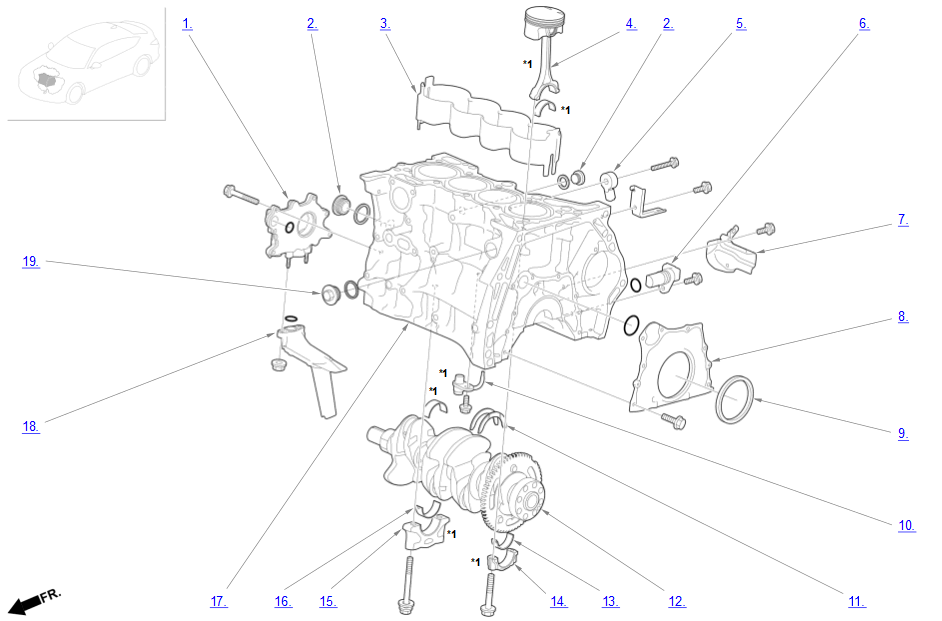

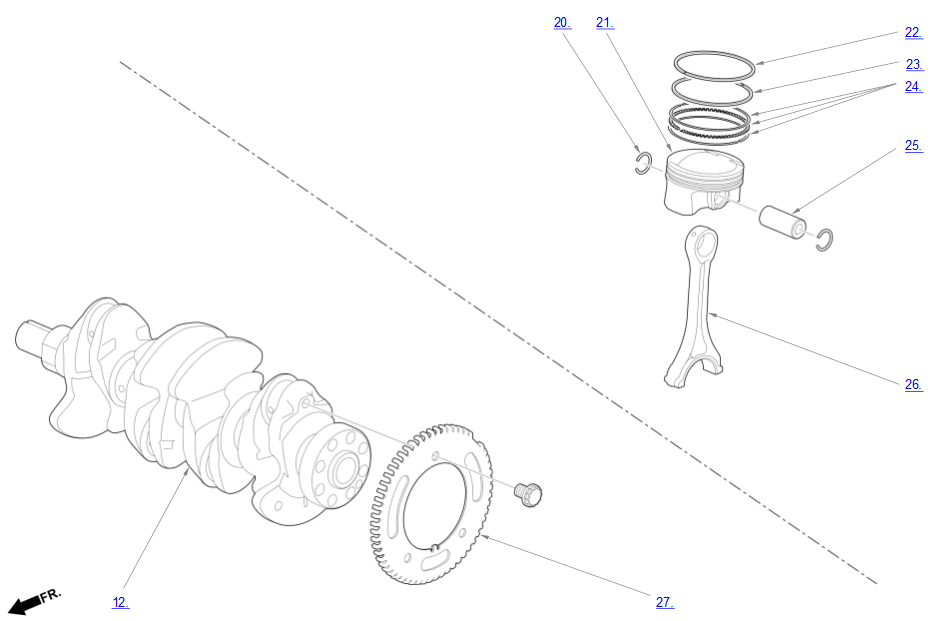

Exploded View
For replacement of components listed below, see Repair Procedure
*1: In the illustration, other parts are omitted because the component parts and the removal/installation procedure are the same.
Engine Block/Crankshaft Area (1.5L Engine) Components
| Component Name | Callout |
|---|---|
| Engine Oil Pump | 1 |
| Sealing Bolt | 2 |
| Cooling Control Spacer | 3 |
| Piston/Connecting Rod Assembly | 4 |
| Knock Sensor | 5 |
| Crankshaft Position (CKP) Sensor | 6 |
| CKP Sensor Cover | 7 |
| Oil Seal Case | 8 |
| Transmission End Crankshaft Oil Seal | 9 |
| Oil Jet | 10 |
| Thrust Washer | 11 |
| Crankshaft | 12 |
| Connecting Rod Bearing | 13 |
| Connecting Rod Cap | 14 |
| Main Bearing Cap | 15 |
| Main Bearing | 16 |
| Engine Block | 17 |
| Oil Strainer | 18 |
| Drain Bolt | 19 |
| Snap Ring | 20 |
| Piston | 21 |
| Top Ring | 22 |
| Second Ring | 23 |
| Oil Ring | 24 |
| Piston Pin | 25 |
| Connecting Rod | 26 |
| CKP Pulse Plate | 27 |
