BSI Radar Unit Connector for Inputs and Outputs

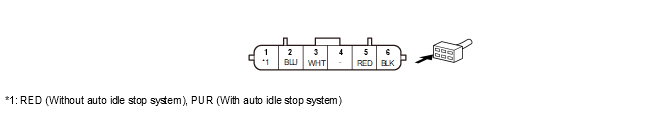

Left Side BSI Radar Unit Connector (6P) (female terminals)
| Terminal number | Terminal name | Description |
| 1 | IG1_OPTION *1 | Detects ignition signal |
| IG1_RELAY2 *2 | ||
| 2 | BSI_L_IND | Drives the left BSI alert indicator |
| 3 | BB-CAN_H | B-CAN communication (high) circuit |
| 4 | Not used | - |
| 5 | BB-CAN_L | B-CAN communication (low) circuit |
| 6 | GND | Ground circuit for the BSI radar unit |
*1: Without auto idle stop system
*2: With auto idle stop system

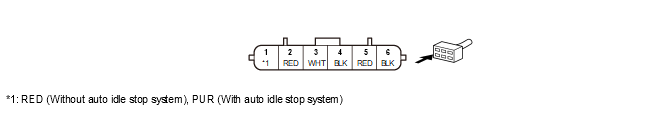

Right Side BSI Radar Unit Connector (6P) (female terminals)
| Terminal number | Terminal name | Description |
| 1 | IG1_OPTION *1 | Detects ignition signal |
| IG1_RELAY2 *2 | ||
| 2 | BSI_R_IND | Drives the right BSI alert indicator |
| 3 | BB-CAN_H | B-CAN communication (high) circuit |
| 4 | GND | Ground circuit for the BSI radar unit |
| 5 | BB-CAN_L | B-CAN communication (low) circuit |
| 6 | GND | Ground circuit for the BSI radar unit |
*1: Without auto idle stop system
*2: With auto idle stop system
