ANC/Active Sound Control Microphone Connector for Inputs and Outputs
| Connector Index |
|---|
| Front HFL-ANC/Active sound control Microphone Connector (8P) |
| Middle ANC/Active sound control Microphone Connector (2P) |
| Rear ANC/Active sound control Microphone Connector (2P) |
NOTE:
The ANC/active sound control microphone, front HFL-ANC/active sound control microphone, and HFL microphone are the same parts.

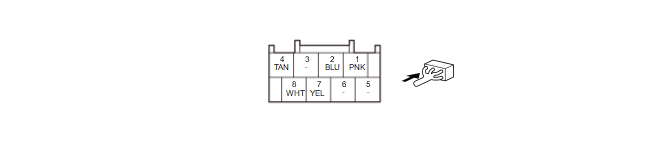

Front HFL-ANC/Active sound control Microphone Connector (8P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | MIC_GND | Ground for HFL microphone |
| 2 | MIC+ | Outputs sound signal to audio unit |
| 3 | Not used | --- |
| 4 | MIC_PWR | Power source from audio unit |
| 5 | Not used | --- |
| 6 | Not used | --- |
| 7 | HFT_MUTE | Inputs HFL microphone directivity switching signal |
| 8 | ANC_F_MIC+8V | Outputs front ANC/active sound control microphone signal |

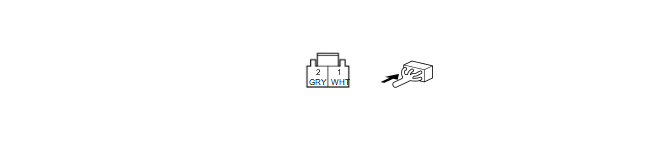

Middle ANC/Active sound control Microphone Connector (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | ANC_M_MIC+8V | Output sound signal from middle ANC/active sound control microphone |
| 2 | SH_ANC_M_MIC | Shield for terminal No. 1 |

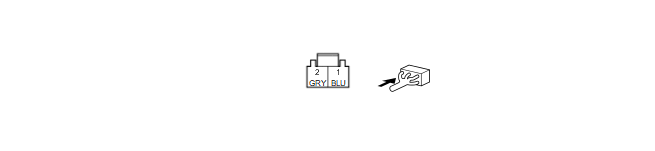

Rear ANC/Active sound control Microphone Connector (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | ANC_R_MIC+8V | Output sound signal from rear ANC/active sound control microphone |
| 2 | SH_ANC_R_MIC | Shield for terminal No. 1 |
