Audio Remote-HFL Switch Connector for Inputs and Outputs

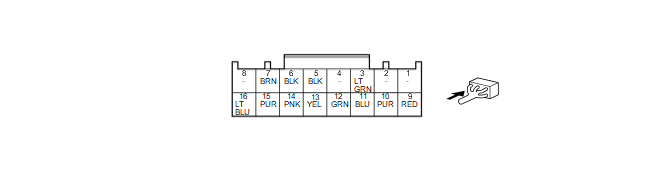

Audio Remote-HFL Switch Connector (16P) (female terminals)

GHH651593Courtesy of HONDA, U.S.A., INC.
Cavity Terminal Name Description
1 Not used ---
2 Not used ---
3 *1 LIN(AUDIO-HSW) Communication signal for heated steering wheel control unit
4 Not used ---
5 *1 GND(AUDIO-HSW) Ground for heated steering wheel control unit
6 GND(C/REEL-AUDIO) Ground for audio remote-HFL switch (G011)
7 *2 GND(AUDIO_CRUISE_or_PADDLE_UP) Ground for ACC combination switch or paddle shifter (upshift switch) *2
8 Not used ---
9 ILM+(AUDIO-CRUISE) Outputs illumination signal for cruise control combination switch or ACC combination switch
10 +B Continuous power source
11 LIN(C/REEL-AUDIO) Communication signal for gauge control module
12 *3 WHEEL_VCC Power source for right selector wheel
13 *3 WHEEL(F) Inputs right selector wheel control signal
14 *3 WHEEL(D) Inputs right selector wheel control signal
15 *3 WHEEL_PUSH Inputs right selector wheel control signal
16 ILM-(AUDIO-CRUISE) Illumination control signal for cruise control combination switch or ACC combination switch

*1: With heated steering wheel

*2: With paddle shifter

*3: With right selector wheel
