Automatic Lighting Control Unit-Sensor Connector for Inputs and Outputs

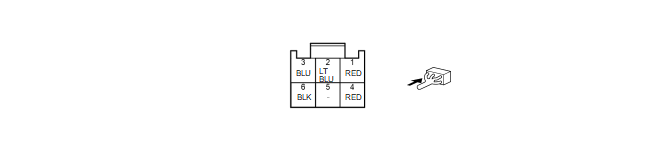

Automatic Lighting Control Unit-Sensor Connector (6P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | BB-CAN_H | Communication line |
| 2 | BB-CAN_L | Communication line |
| 3 | AUTO_LIGHT_BACKUP | Outputs AUTO_LIGHT_BACKUP signal |
| 4 | +B_BACK_UP | Power source for automatic lighting control unit |
| 5 | Not used | --- |
| 6 | GND | Ground for automatic lighting control unit |
