Cylinder Head Assembly Component Location Index (1.5L Engine)

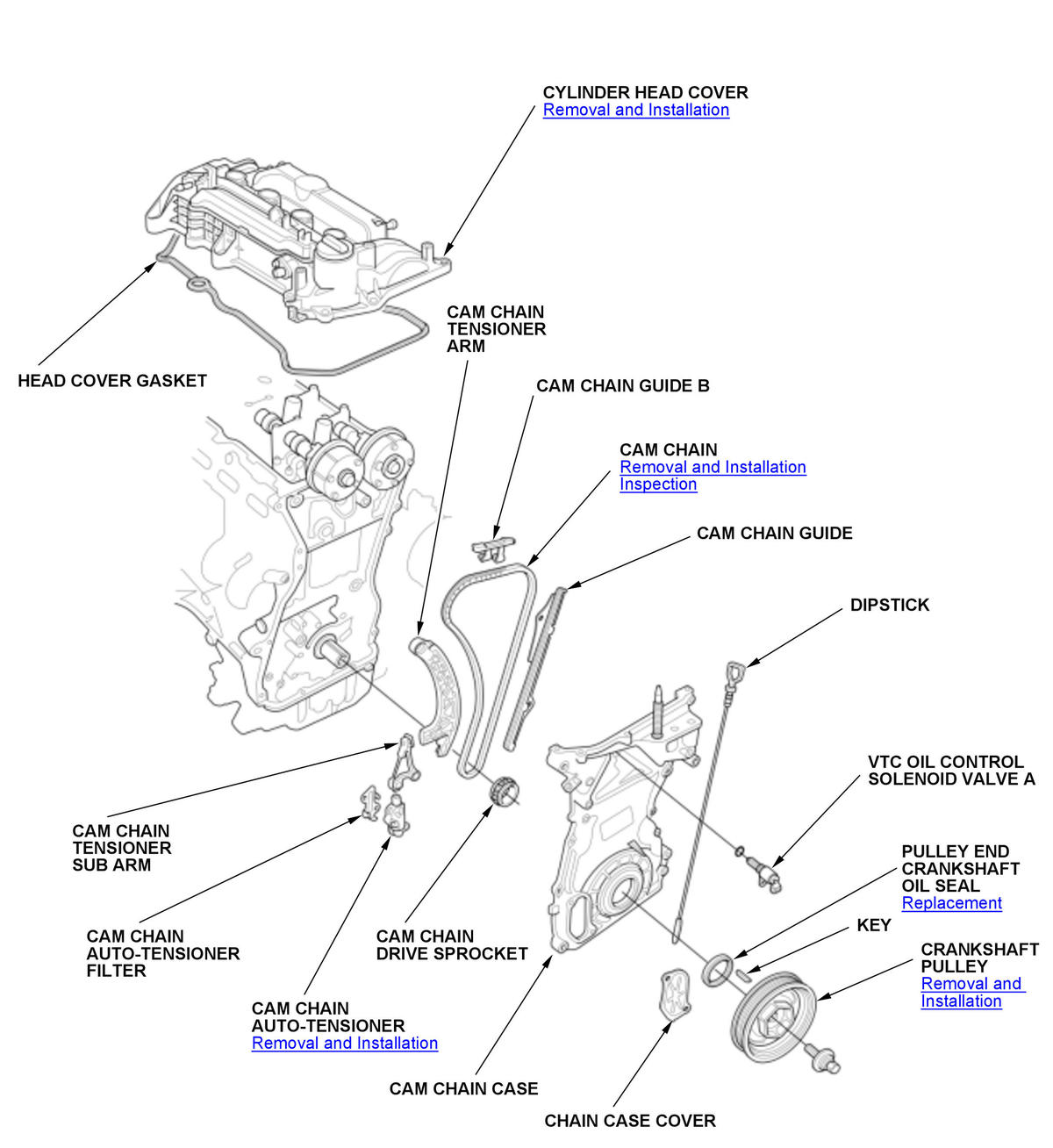

GHH530710Courtesy of HONDA, U.S.A., INC.

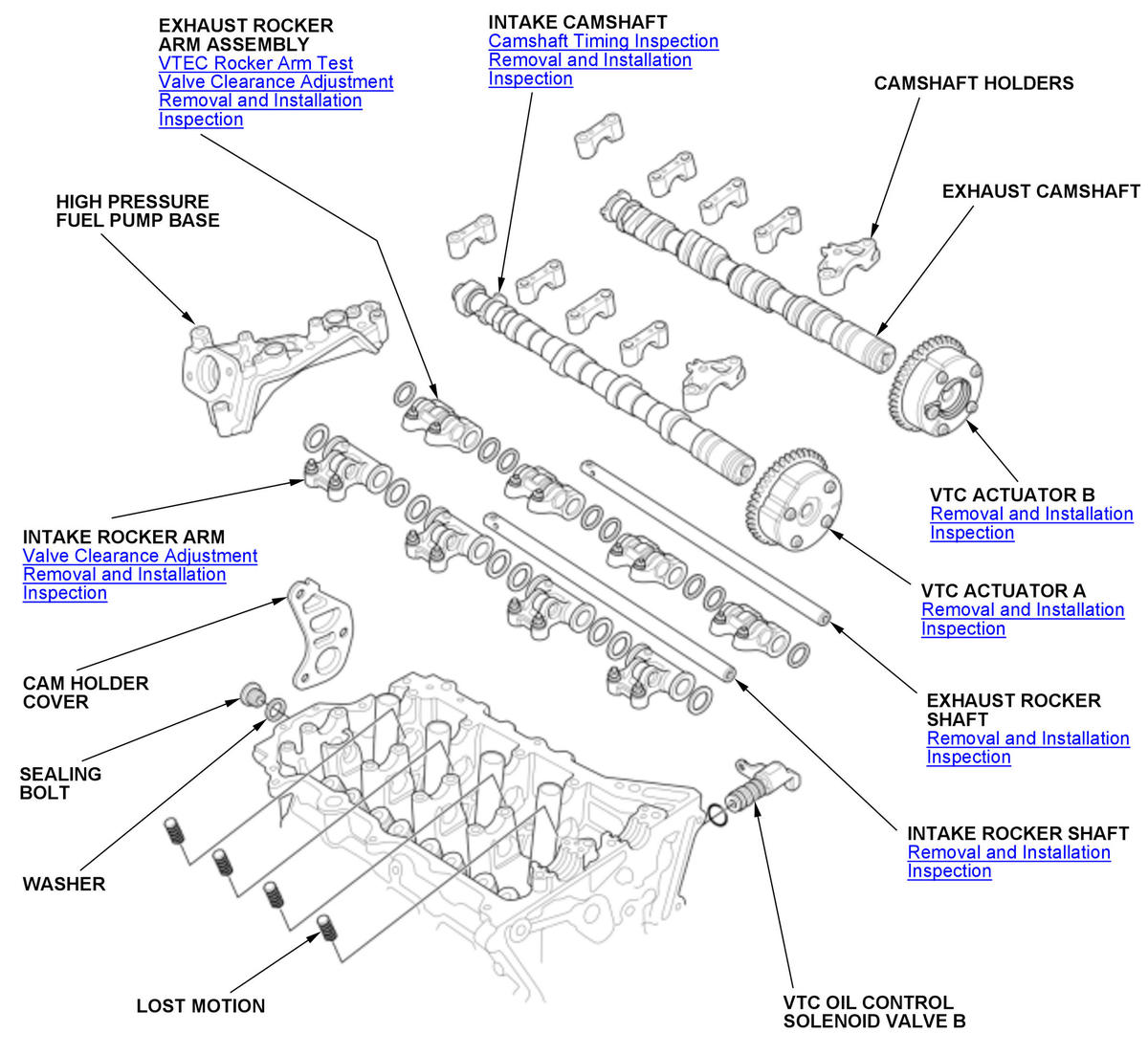

GHH530711Courtesy of HONDA, U.S.A., INC.

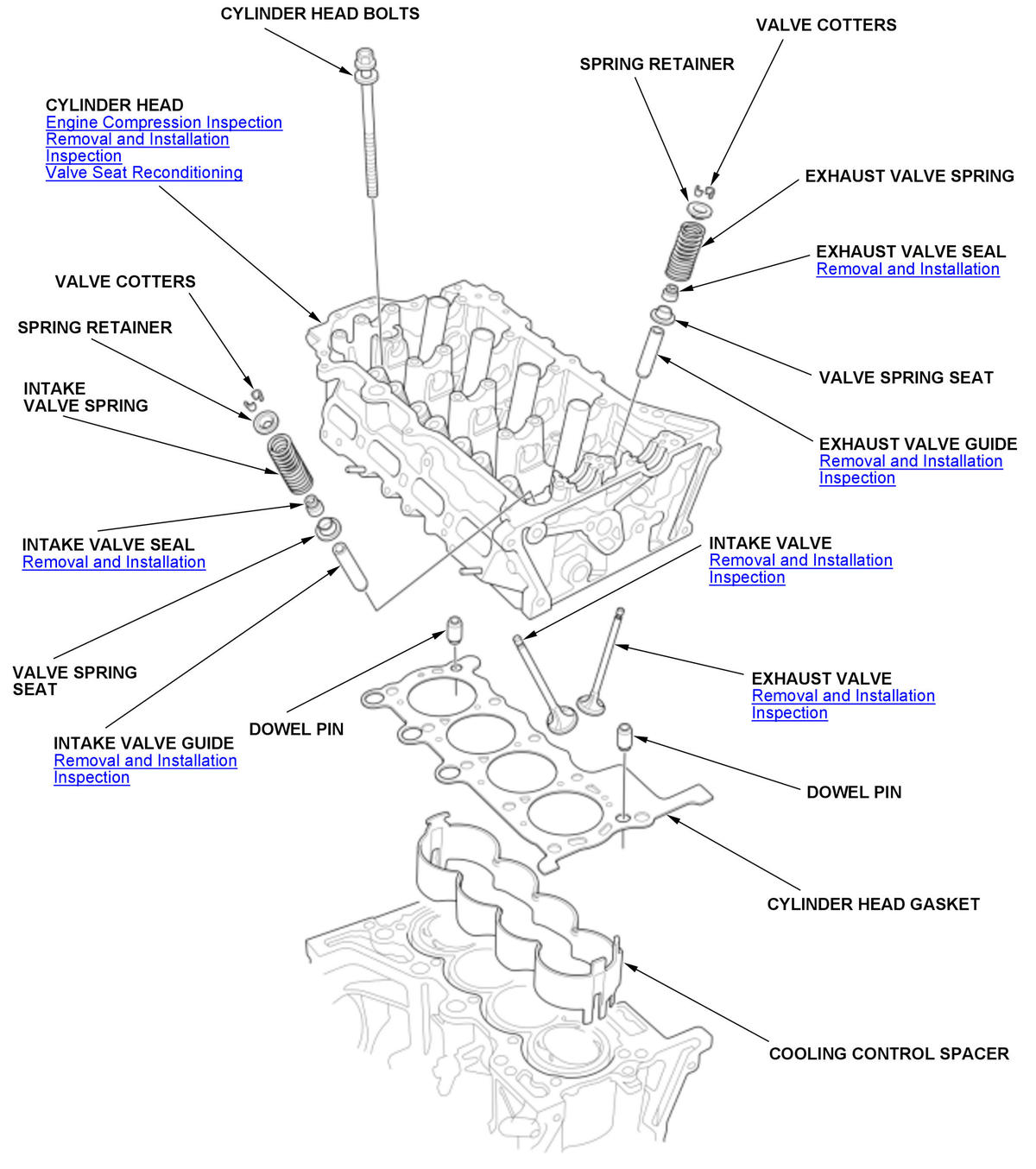

GHH530712Courtesy of HONDA, U.S.A., INC.
