DTC Advanced Diagnostics: P0236 (2.0L Engine) (2024 2025)
DTC P0236 : Turbocharger Boost Sensor Circuit Range/Performance Problem
General Description

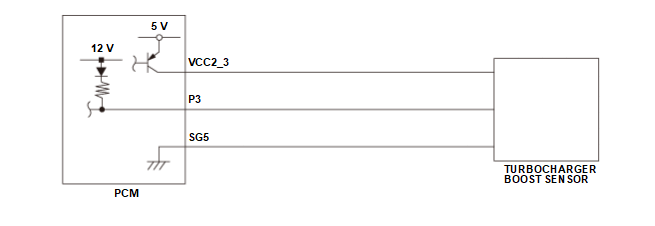

The powertrain control module (PCM) monitors the pressure signal of the turbocharger boost sensor. During the range check, the turbocharger booster sensor will be monitored if it is within a physically possible range. If the turbocharger boost sensor output pressure is a specified value, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 1 second or more |
| DTC Type | One drive cycle, MIL on |
Enable Conditions
Continuous check
| Condition | Minimum | Maximum |
|---|---|---|
| Engine speed [Engine Speed] | 80 rpm | - |
| Turbocharger boost sensor output voltage [TC Boost Pressure Sensor] | 0.16 V | 4.91 V |
| Other | Above enable conditions are met for at least 0.2 seconds | |
Check in post drive
| Condition | Minimum | Maximum |
|---|---|---|
| Engine speed [Engine Speed] | - | 400 rpm |
[ ]: HDS Parameter
Malfunction Threshold
- Continuous check
The turbocharger boost sensor output pressure is greater than 406.297 kPa (3, 047.48 mmHg, 119.9795 inHg), or less than 30 kPa (225 mmHg, 8.8 inHg).
- Check in post drive
The turbocharger boost sensor output pressure is greater than 511.992 kPa (3, 840.25 mmHg, 151.1912 inHg).
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Turbocharger boost sensor failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
