DTC Advanced Diagnostics: P2126 (2.0L Engine) (2024 2025)
DTC P2126 : Accelerator Pedal Position (APP) Sensor B (Throttle Position (TP) Sensor E) Out of Range
General Description

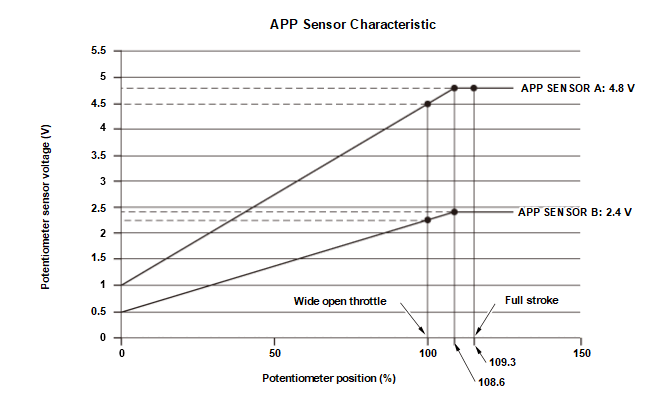

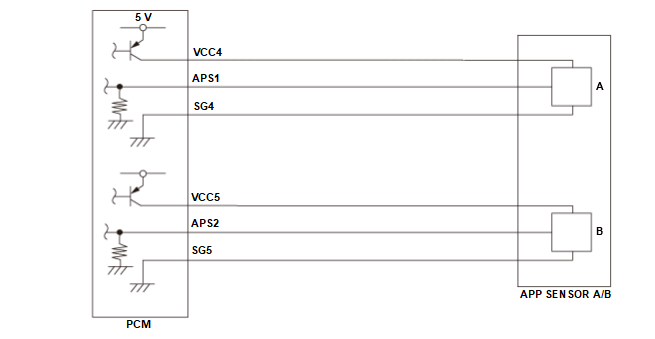

Accelerator pedal position (APP) sensor A and accelerator pedal position (APP) sensor B determine the position of the accelerator pedal. At the same mechanical position the signal voltage of APP sensor B is always by factor 2 smaller than the voltage of APP sensor A. By different checks it is guaranteed that on account of a single fault, the pedal value cannot be higher than the corresponding mechanical position of the accelerator pedal. Circuit continuity check and synchronization check are done at the powertrain control module (PCM). For the physical range check, the voltage of both APP sensors is compared with an upper and lower thresholds. If the voltage value is not within a specified range, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 0.2 seconds or more |
| DTC Type | Two drive cycles, MIL on |
Enable Conditions
| Condition | ||
|---|---|---|
| Vehicle | ON mode | |
Malfunction Threshold
The APP sensor B output voltage [APP Sensor B Voltage] is 0.46 V or less, or 2.40 V or more for at least 0.2 seconds.
[ ]: HDS Parameter
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- APP sensor B failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC, the freeze data, and the on-board snapshot are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
