A/C Compressor Variable Capacity Control Solenoid Test: Test

How to use this service information .

1. A/C Compressor Variable Capacity Control Solenoid - Test

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

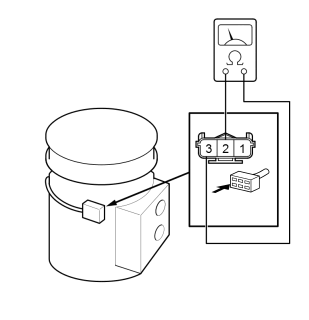

   • Measure the resistance of the variable capacity control solenoid.

   Specifications

   Object	Standard Value
   Variable Capacity Control Solenoid	9.6-11.6 Ω  at 68 deg.F (20 deg.C)*1
   	10.1-11.1 Ω  at 68 deg.F (20 deg.C)*2

   *1: Except Type S

   *2: Type S

   Result

   • If the measurement is not within specifications, replace the A/C compressor - Refer to: A/C Compressor/Engine Oil Pan Area (2.0L Engine) (2024 2025) or A/C Compressor/Engine Oil Pan Area (1.5L Engine) .
