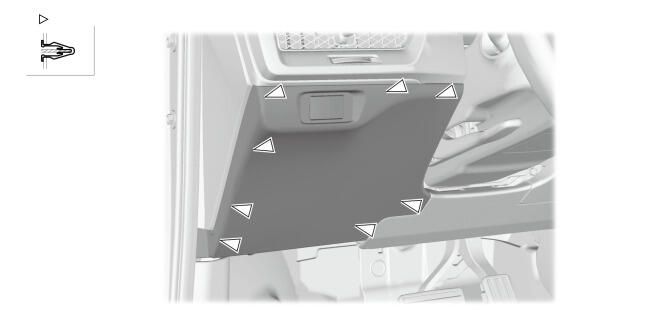

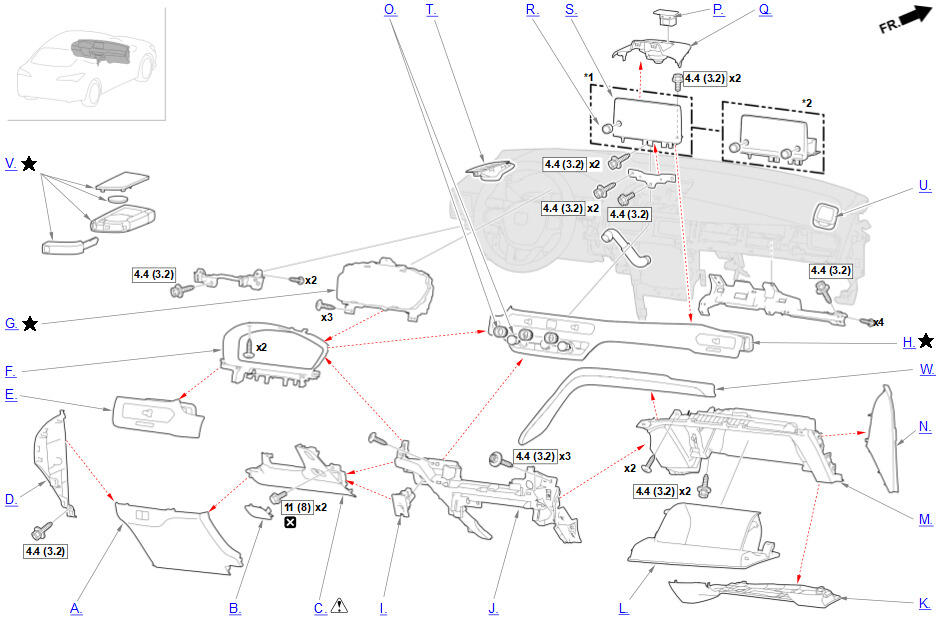

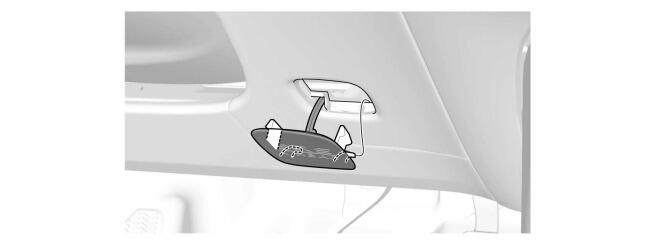

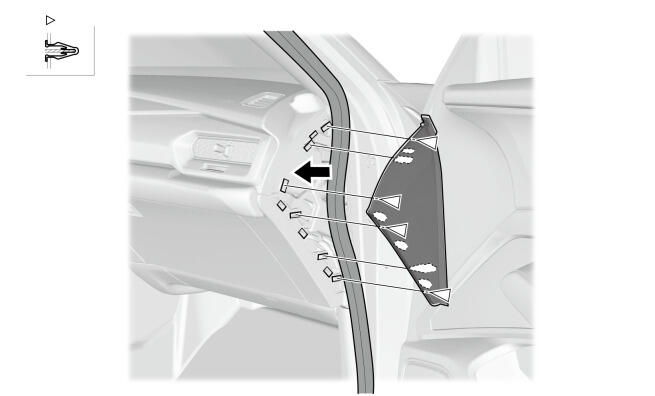

1. A.-

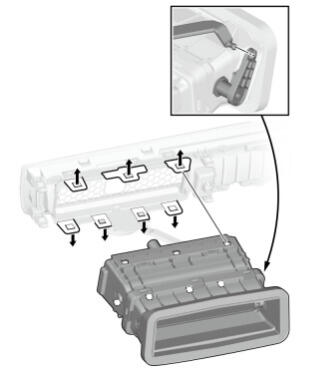

   Courtesy of HONDA, U.S.A., INC.

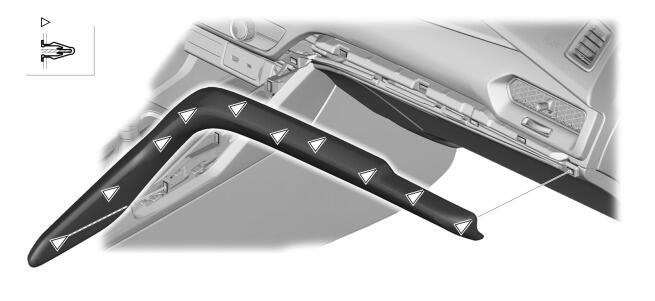

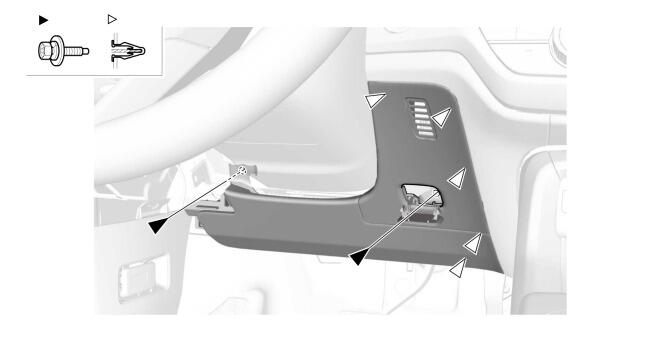

2. B.-

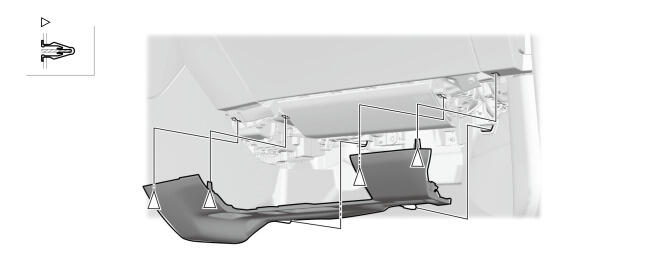

   Courtesy of HONDA, U.S.A., INC.

3. C.-
   WARNING:

   • Review the precautions and procedures before doing repairs or service .
   • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

   NOTICE:

   If you are replacing the driver's knee airbag after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal or SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.

   Preconditions

   • 12 Volt Battery Negative Terminal Disconnect

   Sub-Procedure

   ■ Removal

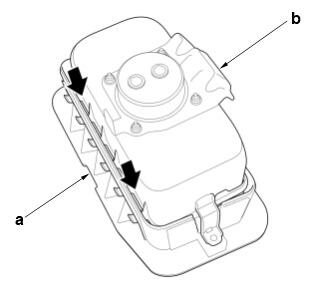

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

   ■ Installation

   NOTICE:

   Before installing the driver's dashboard lower cover, make sure the SRS indicator works normally.

   After Installation

   1. 12 Volt Battery Negative Terminal Reconnect

   2. Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

4. D.-

   Sub-Procedure

   ■ Removal

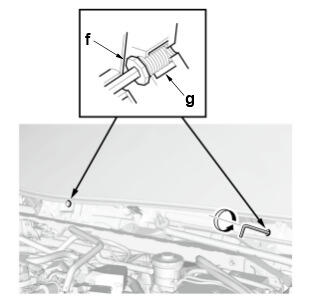

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

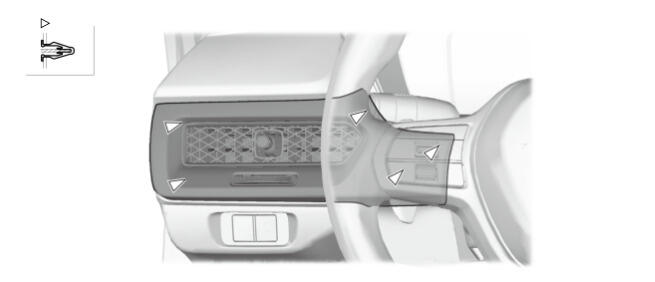

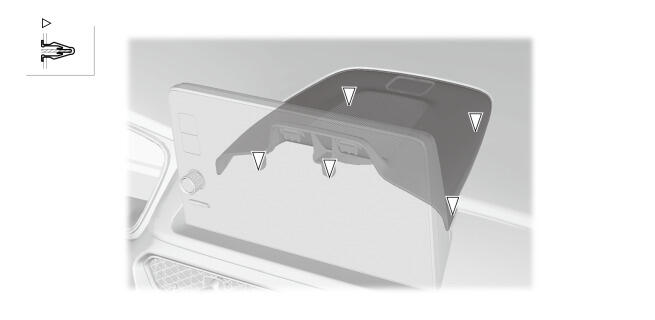

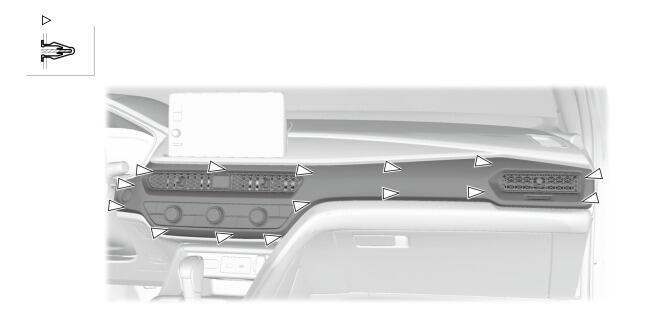

5. E.-

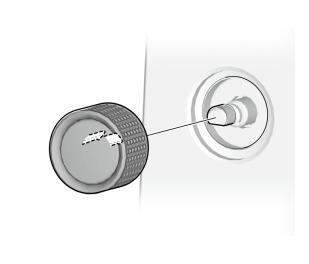

   Courtesy of HONDA, U.S.A., INC.

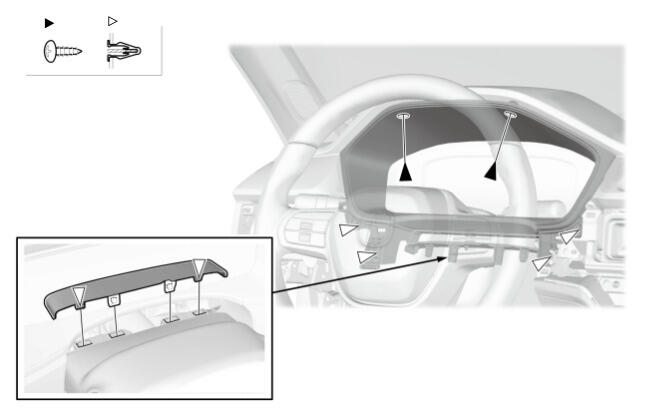

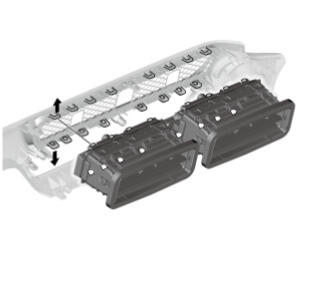

6. F.-

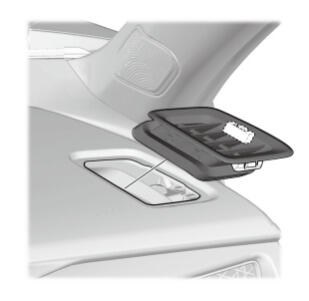

   Courtesy of HONDA, U.S.A., INC.

7. G.-

   Sub-Procedure

   ■ Removal

   • Gauge Control Module Rewriting - Refer to: Gauge Control Module Update or Rewriting the ODO Data and Transferring the Service Reminder System Data to a New Gauge Control Module
   • • -

       If you are replacing the gauge control module, make sure to read the data off the old gauge control module.

   After Installation

   • After installing the gauge control module, perform the self-diagnostic function to check the operation of the indicators.
   • Gauge Control Module Transfer
   • • -

       After replacing, write the ODO value data onto the new gauge control module, refer to transferring the ODO Data onto a New Gauge Control Module Procedure (Transferring) - Refer to: Gauge Control Module Update or Rewriting the ODO Data and Transferring the Service Reminder System Data to a New Gauge Control Module .

     • -

       If the data transfer fails, refer to the instructions to release the locked ODO value - Refer to: Gauge Control Module Update or Rewriting the ODO Data and Transferring the Service Reminder System Data to a New Gauge Control Module .

   • Gauge Control Module Update - Refer to: Gauge Control Module Update or Rewriting the ODO Data and Transferring the Service Reminder System Data to a New Gauge Control Module (When replacing the gauge control module)

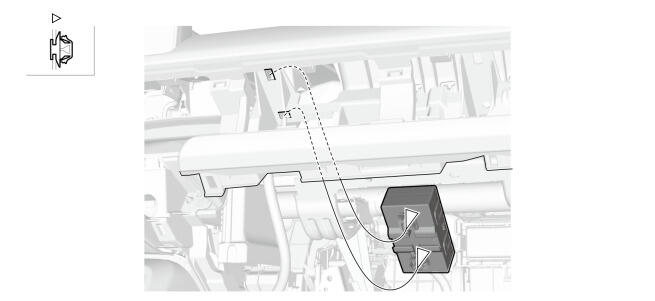

8. H.-

   Sub-Procedure

   ■ Removal

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

   After Installation

   • Do the Self-Diagnostic Function with the HDS, the climate control unit .

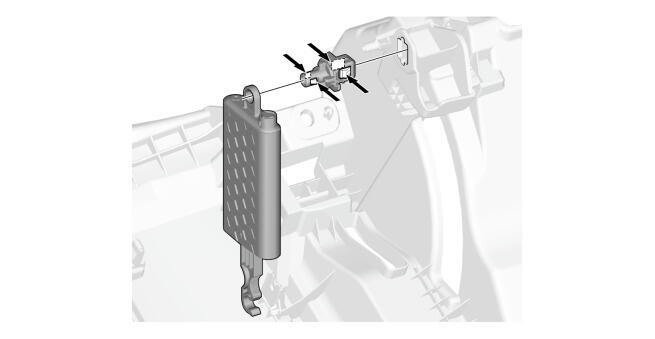

9. I.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   ■ Removal

   • Refer to the figure.
10. J.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Center Console - Refer to: Center Console Area (M/T) or Center Console Area (CVT)

    Sub-Procedure

    ■ Removal

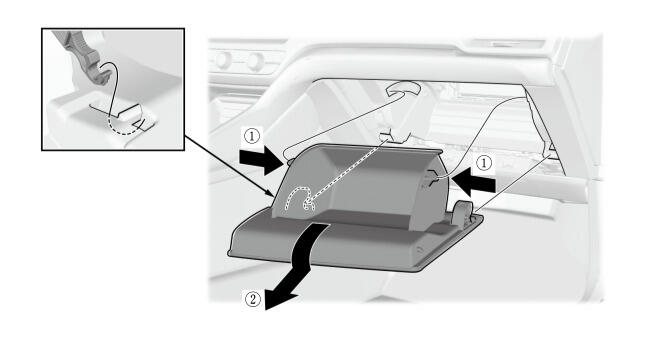

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

11. K.-

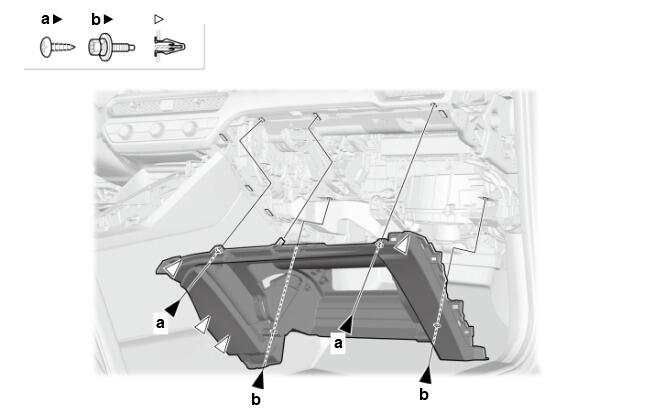

    Courtesy of HONDA, U.S.A., INC.

12. L.-

    Sub-Procedure

    ■ Removal

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

13. M.-

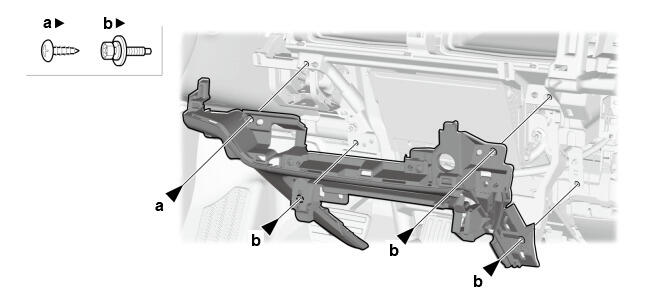

    Courtesy of HONDA, U.S.A., INC.

14. N.-

    Sub-Procedure

    ■ Removal

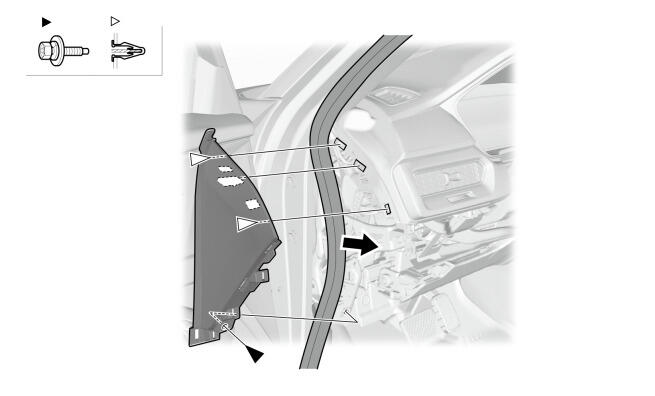

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

15. O.-

    Courtesy of HONDA, U.S.A., INC.

16. P.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

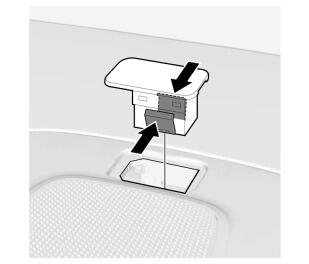

    • Refer to the figure.
17. Q.-

    Courtesy of HONDA, U.S.A., INC.

18. R.-

    Courtesy of HONDA, U.S.A., INC.

19. S.-

    Courtesy of HONDA, U.S.A., INC.

20. T.-

    Courtesy of HONDA, U.S.A., INC.

21. U.-

    Courtesy of HONDA, U.S.A., INC.

22. V.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

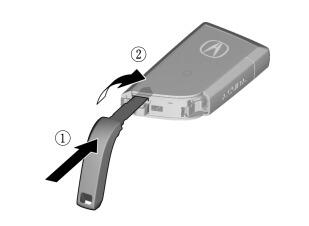

    ■ Removal

    • Refer to the figure.

    Remote Battery Specifications

    Type
    CR2032

    After Installation

    • Keyless access system registration (When replacing the remote)
23. W.-

    Courtesy of HONDA, U.S.A., INC.

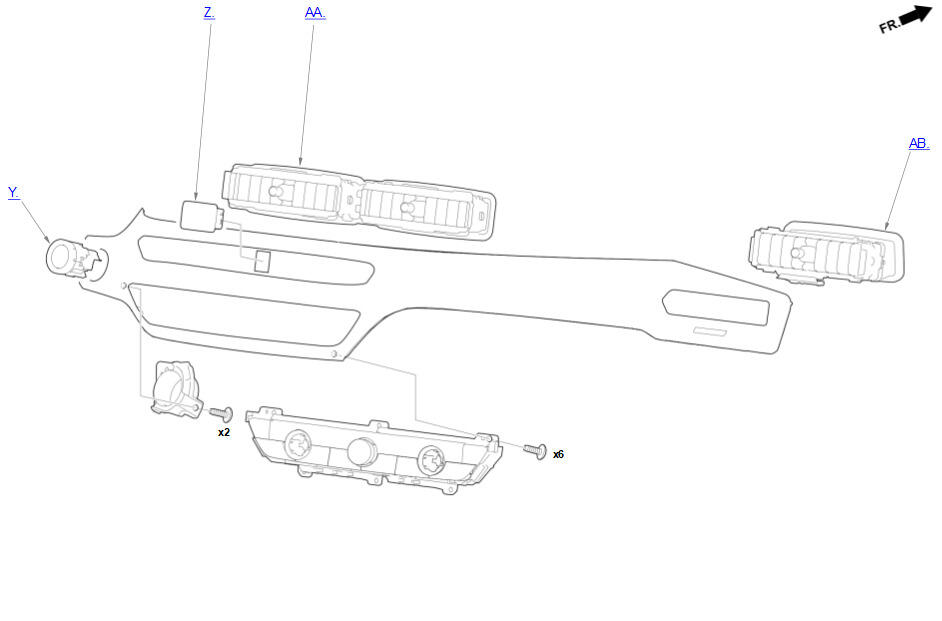

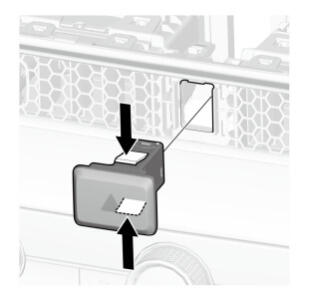

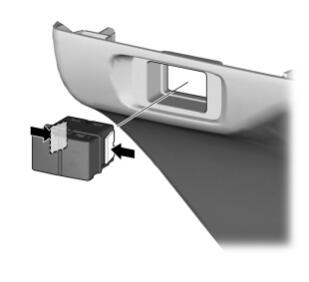

24. X.-
    NOTE:

    Position of the switch is different depending on the model.

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

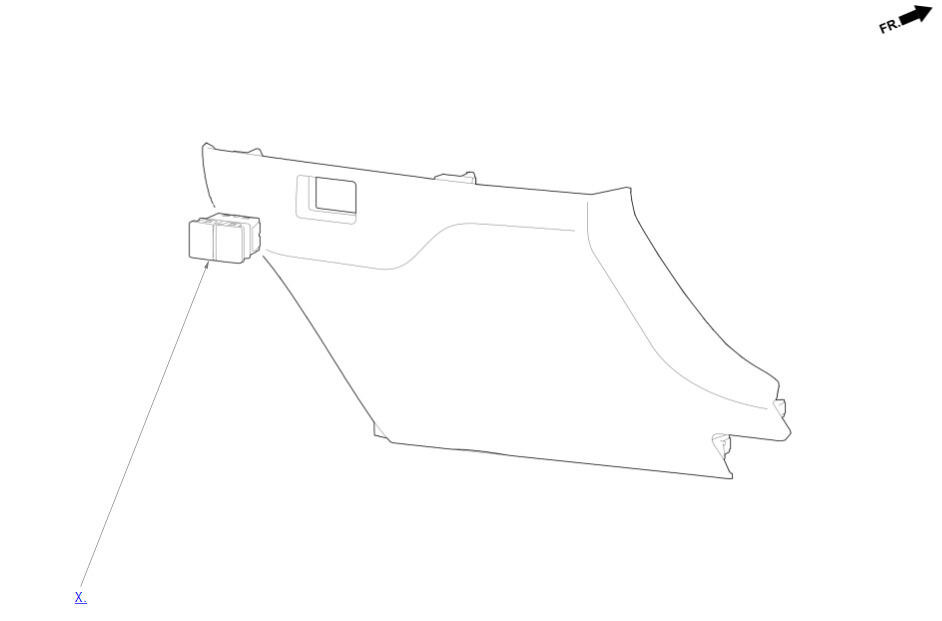

    ■ Removal

    • Refer to the figure.

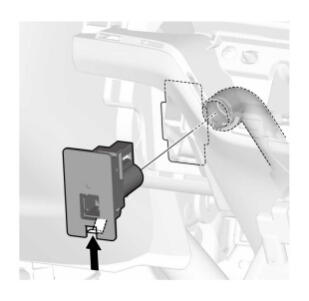

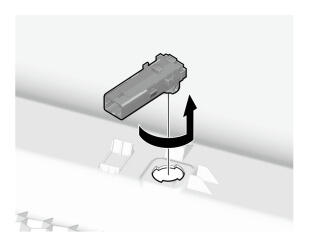

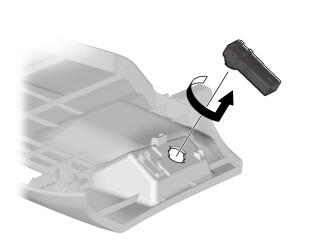

25. Y.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

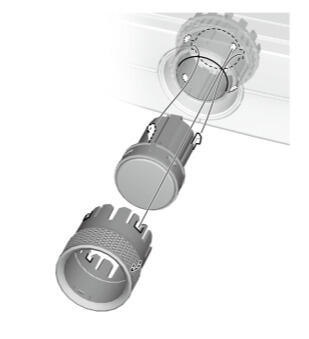

    • Refer to the figure.

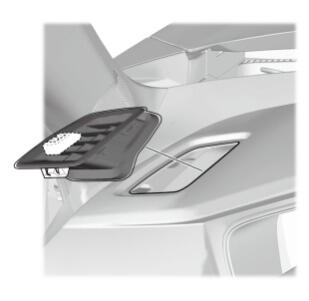

26. Z.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

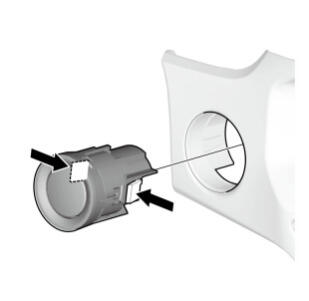

    • Refer to the figure.
27. AA.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

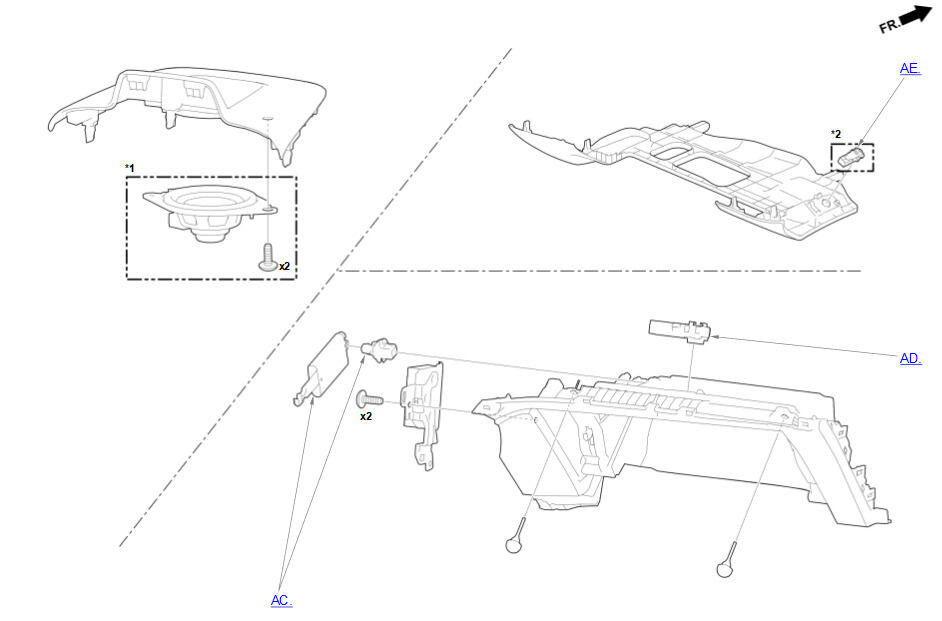

    • Refer to the figure.
28. AB.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

    • Refer to the figure.
29. AC.-

    Sub-Procedure

    ■ Removal

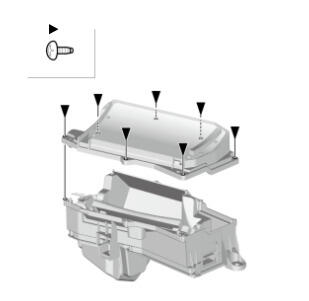

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

30. AD.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

    • Refer to the figure.
31. AE.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

    • Refer to the figure.

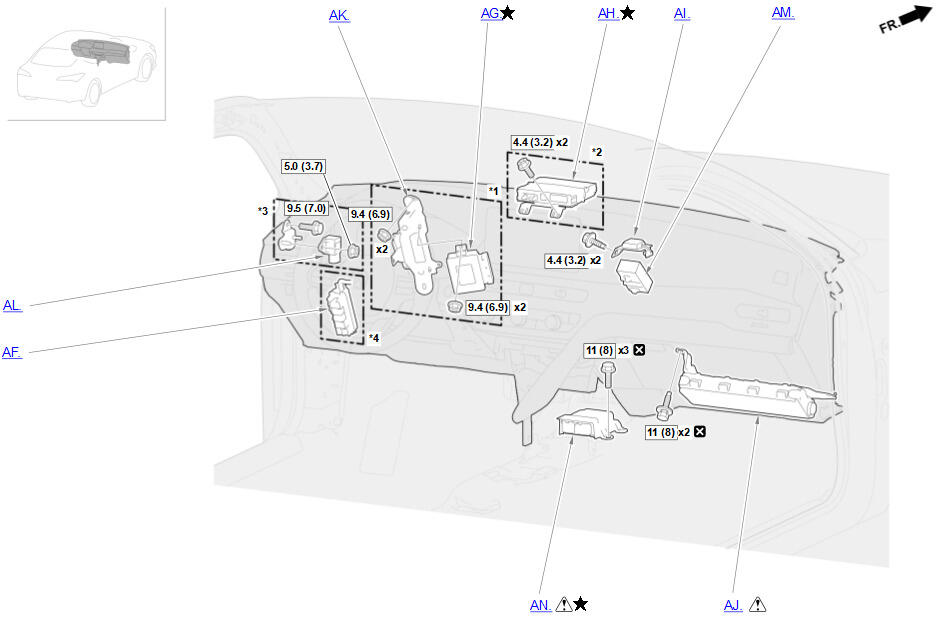

32. AF.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

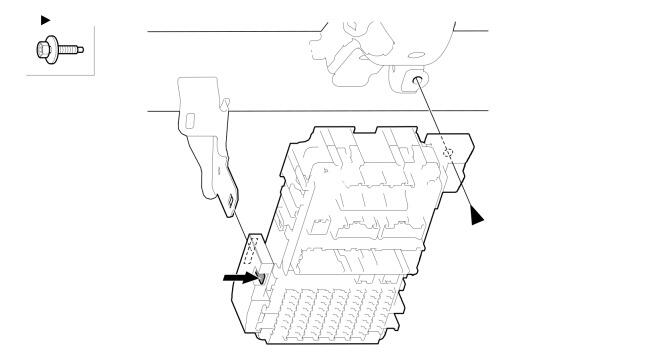

    • Refer to the figure.

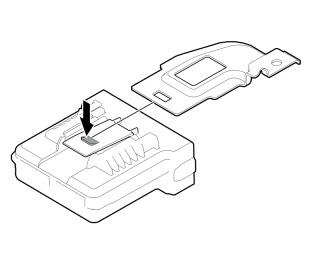

33. AG.-

    After Installation

    • Electric Vacuum Pump Control Unit Update (When replacing the electric vacuum pump control unit)

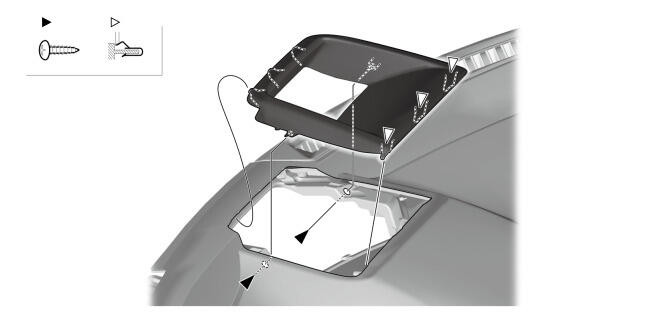

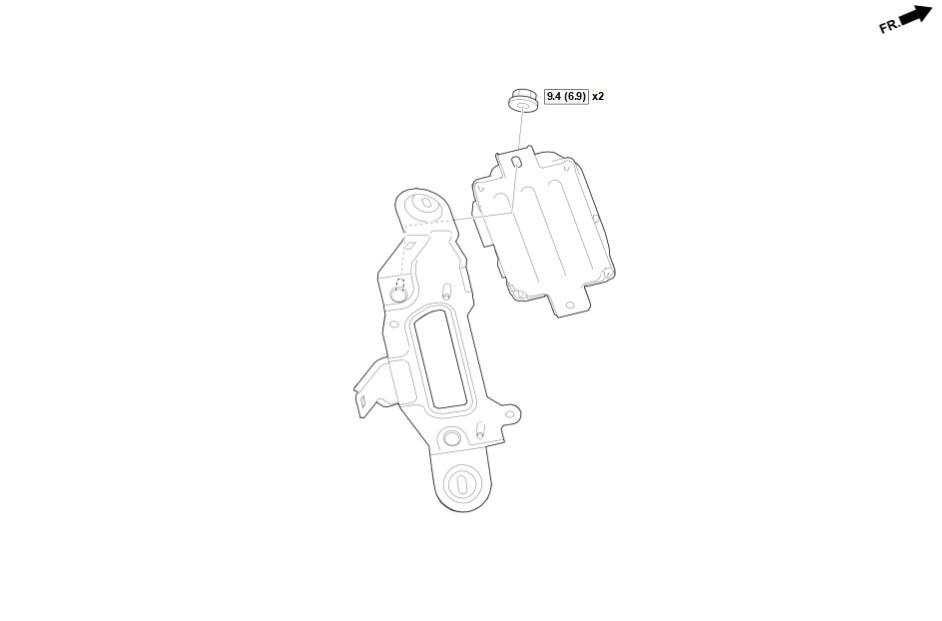

34. AH.-
    NOTE:

    Never swap a telematics control unit from another vehicle even for testing purposes.

    Key Information

    Do the following before starting your work.

    Remove:

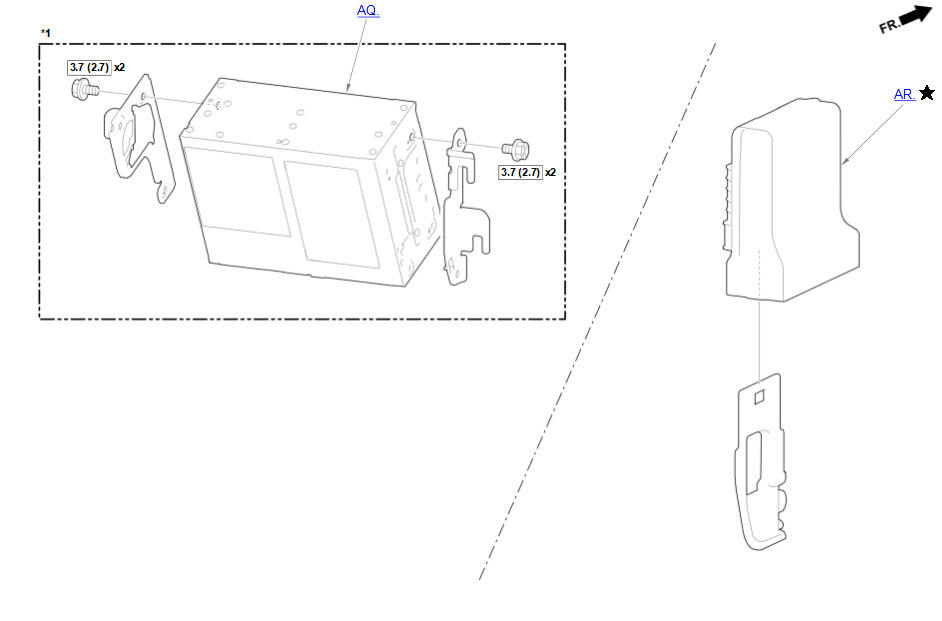

    • Center Display Unit

    After Installation

    • AcuraLink System Registration (When replacing the telematics control unit)
35. AI.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Center Display Unit (Display Audio Type)
    • Audio Unit
36. AJ.-
    WARNING:

    • Review the precautions and procedures before doing repairs or service .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    NOTICE:

    If you are replacing the front passenger's knee airbag after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal or SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnect

    Key Information

    Do the following before starting your work.

    Remove:

    • Passenger's Dashboard Undercover

    Sub-Procedure

    ■ Installation

    NOTICE:

    Before installing the passenger's dashboard undercover, make sure the SRS indicator works normally.

    After Installation

    1. 12 Volt Battery Negative Terminal Reconnect

    2. Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

37. AK.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Body Control Module
38. AL.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Under-Dash Fuse/Relay Box
39. AM.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Glove Box Back Cover
    • Dashboard Center Trim

    Sub-Procedure

    ■ Removal

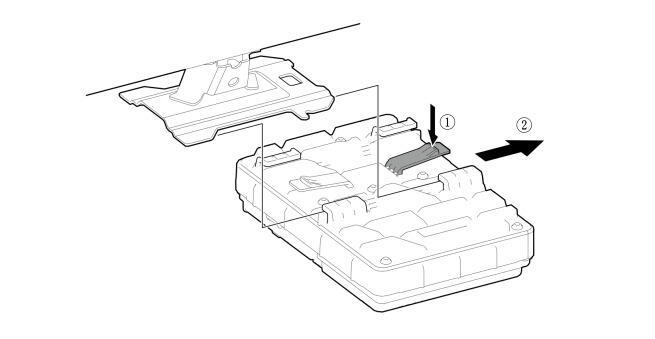

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

40. AN.-
    WARNING:

    • Review the precautions and procedures before doing repairs or service .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    NOTICE:

    Be careful not to bump (by impact wrench, hammer, etc.) the area around the SRS unit.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected

    Key Information

    Do the following before starting your work.

    Remove:

    • Center Console - Refer to: Center Console Area (M/T) or Center Console Area (CVT)
    • HVAC Stay

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Installation

    NOTICE:

    Before installing the center console, make sure the SRS indicator works normally.

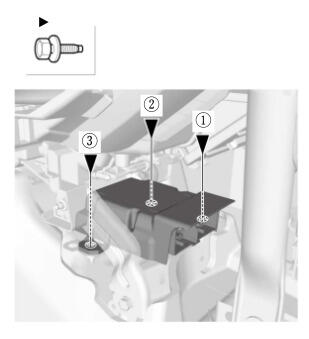

    Tightening Procedure

    Step	Operation	Object	Specification
    1	Tighten	All Bolts	-> ->

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect
    • ECU Key Write (When replacing the SRS unit)
    • SRS Unit Update (When replacing the SRS unit)
    • Yaw Rate-Acceleration Neutral Position Memorization (When replacing the SRS unit)
    • Front Passenger's Weight Sensor Initialization - Refer to: Front Passenger's Weight Sensor Output Check After a Vehicle Collision or Front Passenger's Weight Sensor Initialization or Front Passenger's Weight Sensor Operation Check After Replacing Front Passenger's Seat Component(s) (When replacing the SRS unit)
    • Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

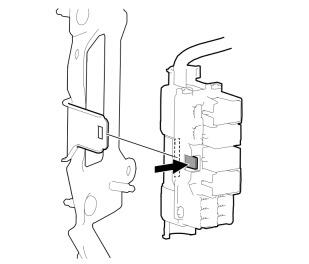

41. AO.-

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected

    Key Information

    Do the following before starting your work.

    Remove:

    • DC-DC Converter

    Sub-Procedure

    ■ Removal

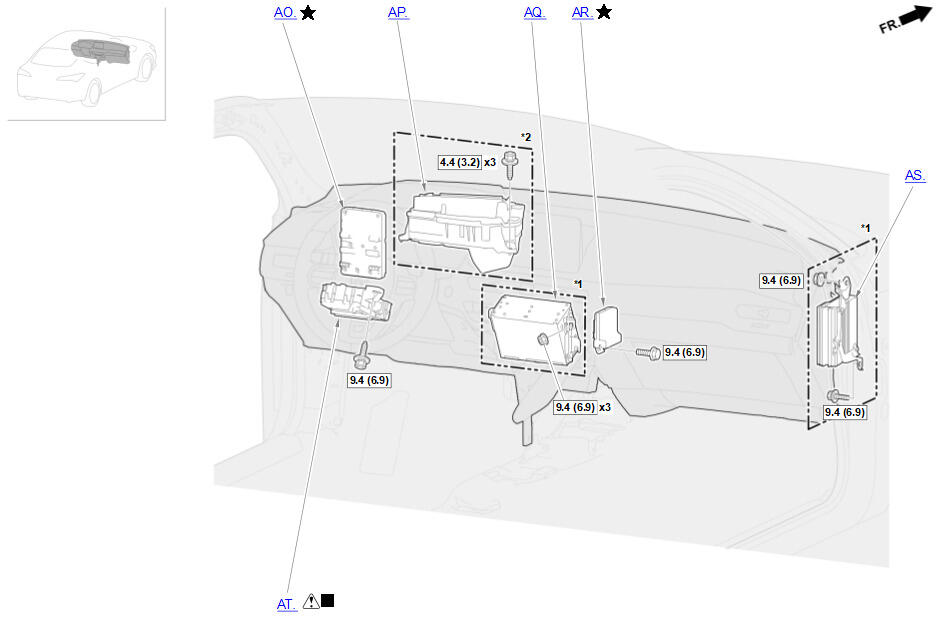

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

    After Installation

    NOTE:

    When replacing the body control module, do this procedure.

    • 12 Volt Battery Negative Terminal Reconnect
    • Keyless Access System Registration (When replacing the body control module)
    • Body Control Module Update (When replacing the body control module)
42. AP.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Dashboard

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

    • Refer to the figure.
43. AQ.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Center Lower Cover
44. AR.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Glove Box Back Cover

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

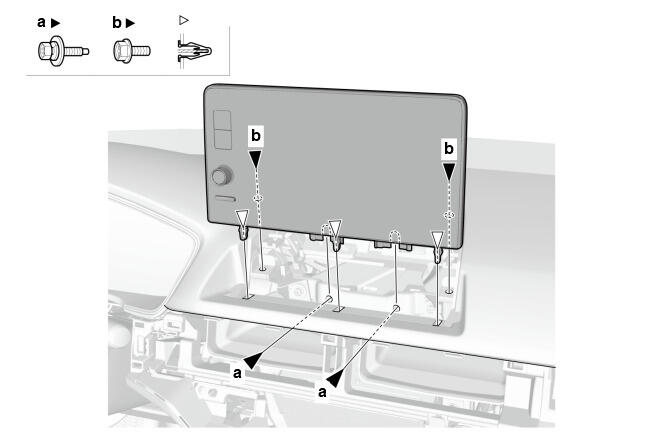

    • Refer to the figure.

    After Installation

    • CAN Gateway Update (When replacing the CAN gateway)
45. AS.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Glove Box Back Cover
    • Blower Unit
46. AT.-
    WARNING:

    • SRS components are located in this area. Before doing repairs or service:
    • • -

        Review the SRS component locations .

    • • -

        Review the precautions and procedures .

    Key Information

    Do the following before starting your work.

    Remove:

    • Driver's Dashboard Lower Cover

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected

    Sub-Procedure

    ■ Removal

    • Carefully remove the relays using the relay puller tool.
      NOTE:

      Do not use pliers. Pliers will damage the relays, which could cause the engine to stall, not start, or cause other functions to fail.

    Courtesy of HONDA, U.S.A., INC.

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect
    • Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

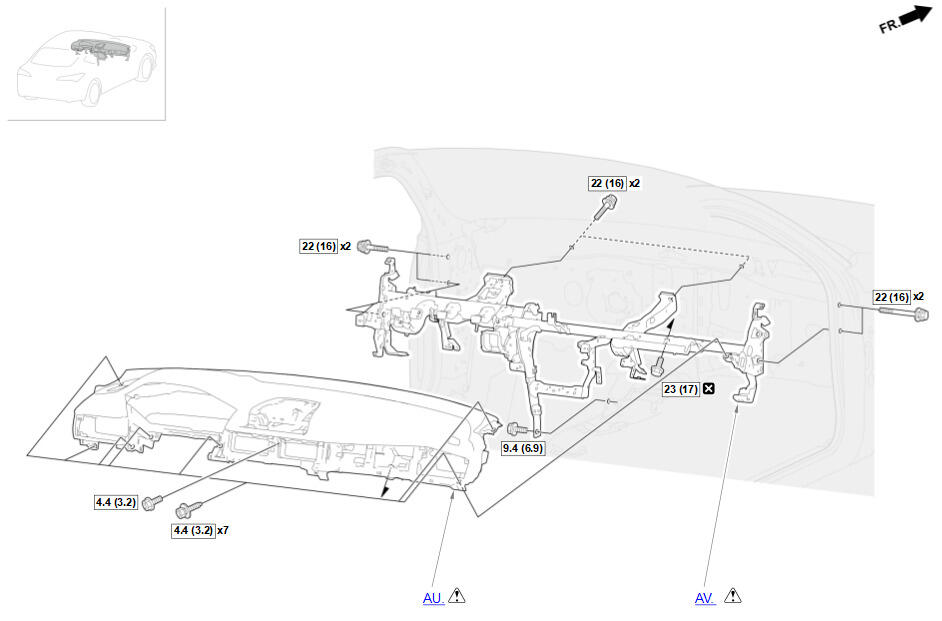

47. AU.-
    WARNING:

    • Review the precautions and procedures before doing repairs or service .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected

    Key Information

    NOTE:

    For the removal and installation procedure, refer to Dashboard Removal and Installation - Refer to: Dashboard/Steering Hanger Beam Removal and Installation or Dashboard Removal and Installation and the sub-procedure below.

    ■ Removal

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect
    • Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

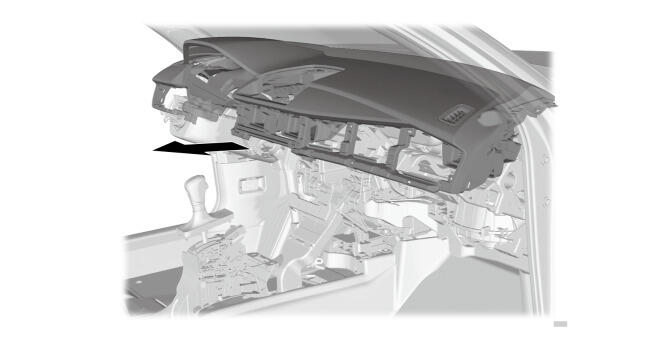

48. AV.-
    WARNING:

    • Review the precautions and procedures before doing repairs or service .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected
      NOTE:

      Wait at least 3 minutes before starting work.

    Key Information

    NOTE:

    For the removal and installation procedure, refer to Dashboard/Steering Hanger Beam Removal and Installation - Refer to: Dashboard/Steering Hanger Beam Removal and Installation or Dashboard Removal and Installation and the sub-procedure below.

    Sub-Procedure

    ■ Removal

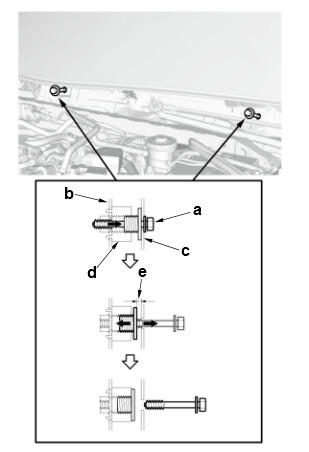

    1. Loosen the special bolts (a) until they disengage from the threads on the hanger beam (b), and engage the inside threads of the collar bolts (c). The thread lock on the special bolts makes the special bolts and the collar bolts turn together. (Figure 1 and 2)

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    Figure 2

    Courtesy of HONDA, U.S.A., INC.

    2. Continue to loosen the special bolts to turned the collar bolts into the fixed space adjusters (d) until the collar bolts engage the adjuster brackets. This creates a gap (e) between the collar bolts and the body. (Figure 1 and 2)

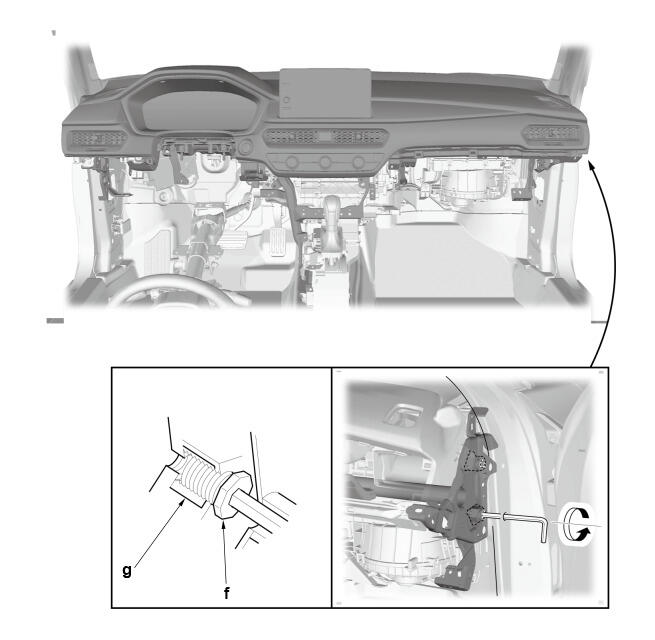

    3. Check that the collar bolts (f) are seated in the fixed space adjusters (g). (Figure 3 and 4)

    NOTE:

    If either collar bolt was not seated, replace the special bolts.

    Figure 3

    Courtesy of HONDA, U.S.A., INC.

    Figure 4

    Courtesy of HONDA, U.S.A., INC.

    Figure 5

    Courtesy of HONDA, U.S.A., INC.

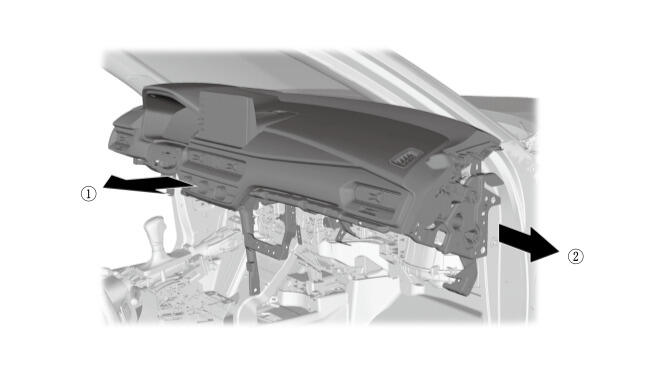

    4. Lift up the dashboard/steering hanger beam to release it from the guide pins on the body. (Figure 5)

    ■ Installation

    NOTE:

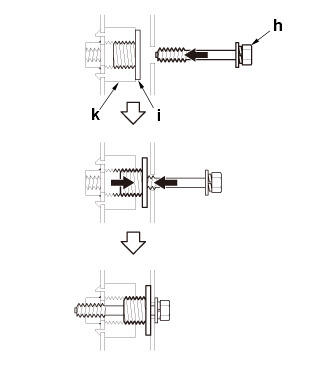

    • Before reinstalling the dashboard, screw the special bolt (h) into the collar bolt (i), and check that they turn together. If they do not turn together, replace the special bolt. (Figure 6)
    • Before reinstalling the dashboard, be sure the collar bolts can be screwed/unscrewed lightly by hand, and then screw them into the fixed space adjusters (k) fully by hand. Do not tighten them with any tools. (Figure 6)
    • Make sure the dashboard fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly.
    • After setting the dashboard in the body, reinstall all of the mounting bolts but do not tighten them.
    • Tighten the special bolts and the bolts to the specified torque.
    • As you tighten the bolts, the collar bolts screw out of the space adjuster until they contact the body. Continue tightening the special bolts to the specified torque.
    • If the bolt threads of the steering hanger beam are stripped, replace the bolts with one-size larger bolts (available as a service part), which are specifically designed to tighten the instrument panel to the specified torque setting.
    • Check for any DTCs that may have been set during repairs, and clear them.

    Figure 6

    Courtesy of HONDA, U.S.A., INC.

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect
    • Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

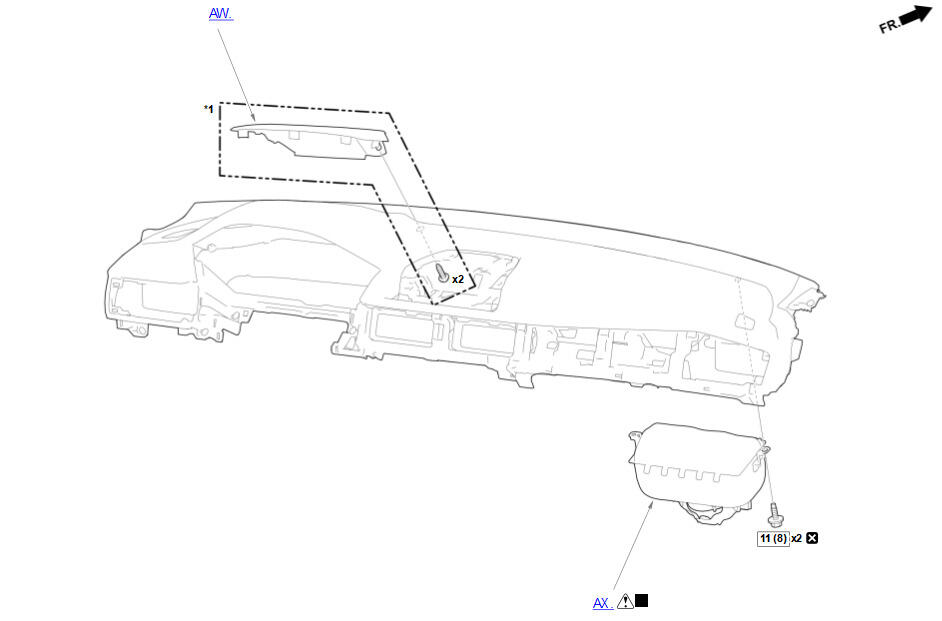

49. AW.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Dashboard

    Sub-Procedure

    ■ Removal

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

50. AX.-
    WARNING:

    • Review the precautions and procedures before doing repairs or service .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    NOTICE:

    If you are replacing the front passenger's airbag after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal or SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected

    Key Information

    Do the following before starting your work.

    Remove:

    • Dashboard

    Sub-Procedure

    ■ Removal

    NOTICE:

    • Take care not to damage the front passenger's airbag housing holes of the dashboard.
    • Do not use sharp edged tools to remove the front passenger's airbag.
    • Take care not to damage the front passenger's airbag.
    • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

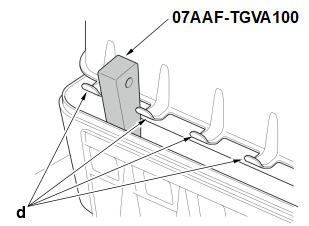

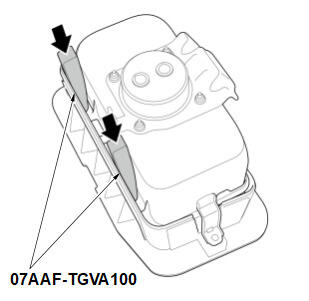

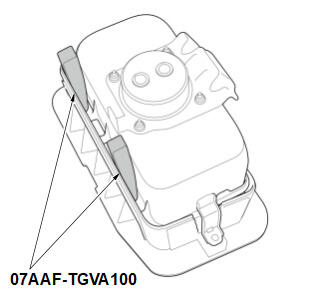

    1. Take two of the airbag cover remover, and insert them between the airbag holder (a) and airbag (b) as shown. (Figure 1, 2, and 3)

    NOTICE:

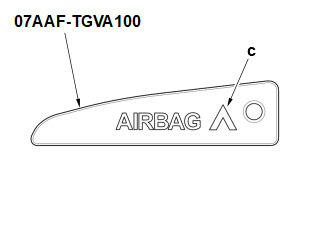

    • Note the orientation of the airbag cover remover. The arrow (c) should point to the airbag. (Figure 2)
    • Multiple (up to 5) airbag cover removers can be installed if necessary. (Figure 3)

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    Figure 2

    Courtesy of HONDA, U.S.A., INC.

    Figure 3

    Courtesy of HONDA, U.S.A., INC.

    Figure 4

    Courtesy of HONDA, U.S.A., INC.

    Figure 5

    Courtesy of HONDA, U.S.A., INC.

    2. Using your palms, push down on the airbag cover remover until the hooks (d) are disengaged. Then, remove the airbag. (Figure 4 and 5)

    ■ Installation

    NOTICE:

    • Make sure there are no objects between the airbag and the dashboard.
    • Make sure the airbag is fully seated, and make sure the dashboard is not deformed or damaged after the airbag is in place.
    • Make sure the hooks are set properly.
    • Before installing the glove box back cover, make sure the SRS indicator works normally.

    After Installation

    1. 12 Volt Battery Negative Terminal Reconnect

    2. Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
