Repair Procedure
How to use this service information .

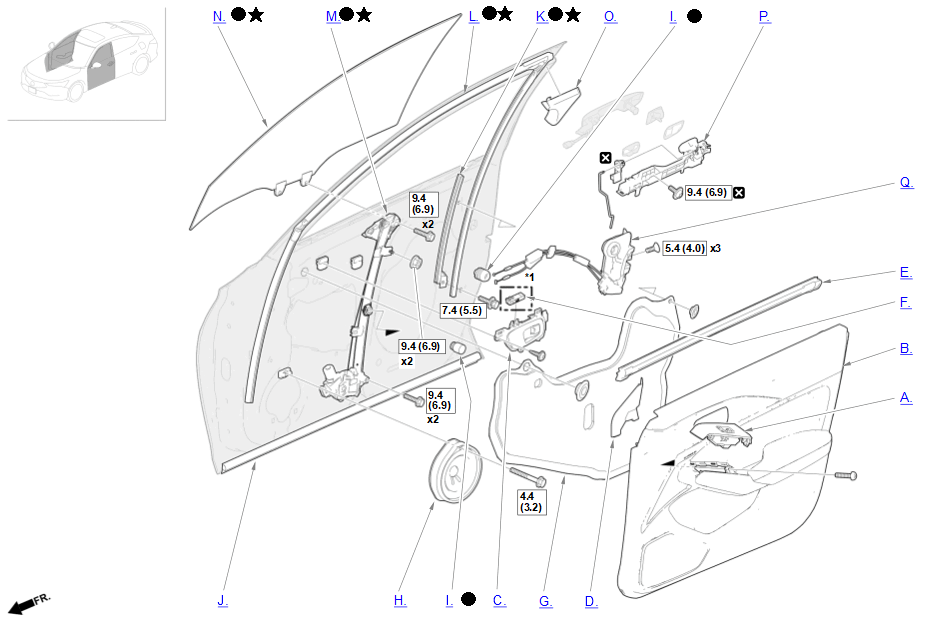

In the illustration, only one side is shown because the component parts and the removal/installation procedure are the same.
: Torque, N.m (lbf.ft)
: Replace
: Warning/Caution
: Inspection/Adjustment
*: Learning
: SPL Tool
: Required Removal
*1: With door inner handle light
: Torque, N.m (lbf.ft)
: Replace
: Warning/Caution
: Inspection/Adjustment
*: Learning
: SPL Tool
: Required Removal

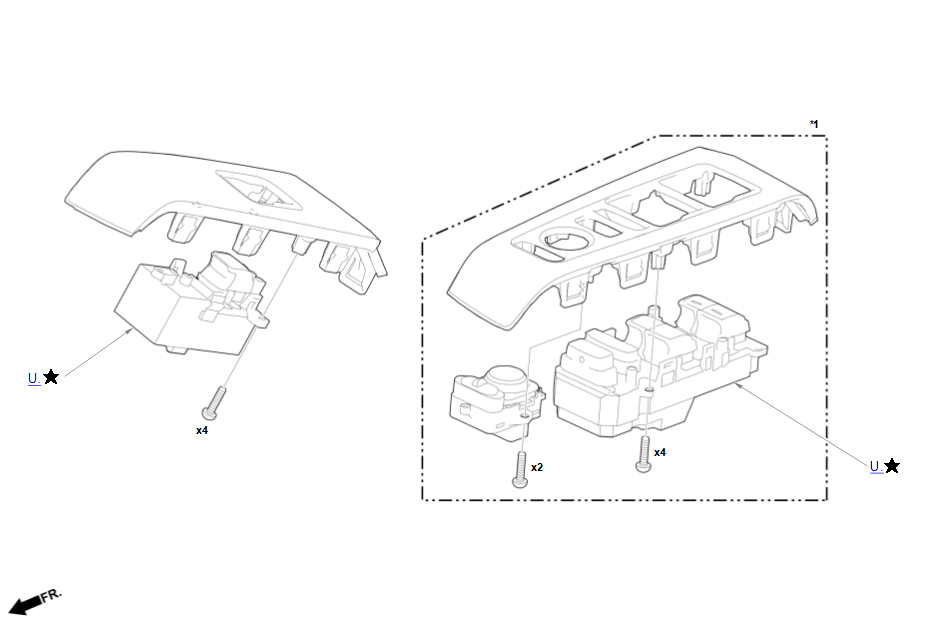

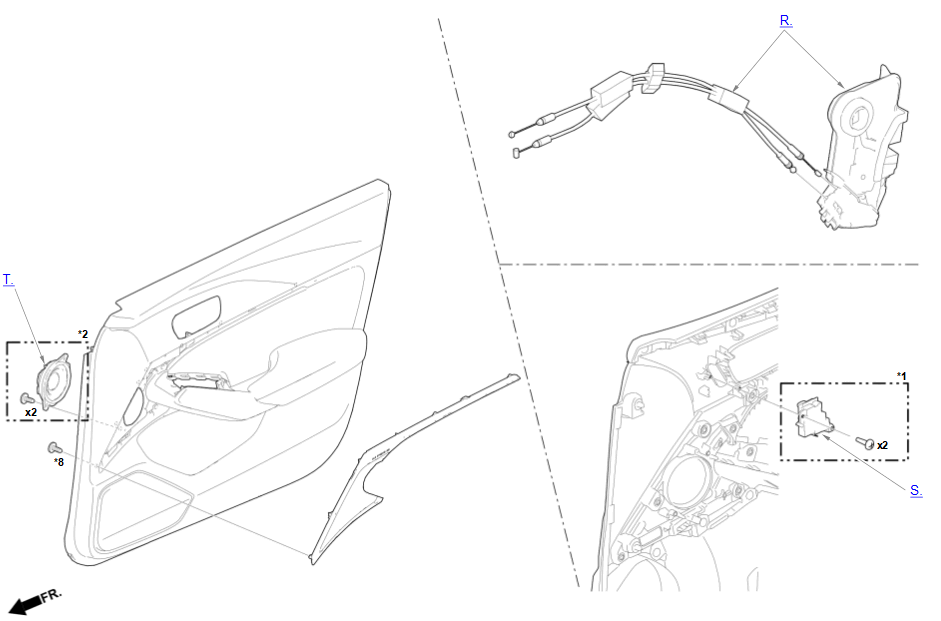

*1: With driving position memory system
*2: Display audio type
: Torque, N.m (lbf.ft)
: Replace
: Warning/Caution
: Inspection/Adjustment
*: Learning
: SPL Tool
: Required Removal
*1: Driver's side
- A.-
Sub-Procedure
■ Removal

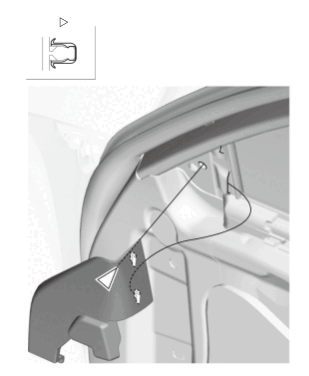

- Refer to the figure.

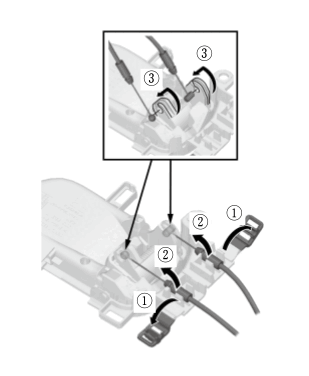

- B.-
Sub-Procedure
■ Removal
- Refer to the figure.
Tool Details

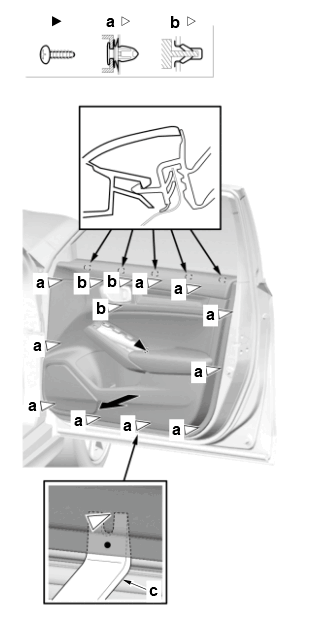

Name c Trim tool (Commercially available tool) - C.-
Sub-Procedure
■ Removal
- Refer to the figure.

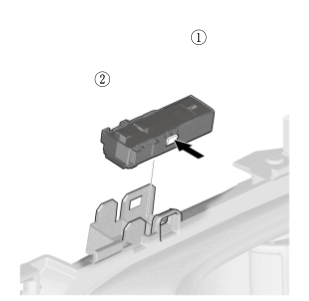

- D.-
- E.-
- F.-
Sub-Procedure
■ Removal
- Refer to the figure.
- G.-
Sub-Procedure
■ Removal
- Refer to the figure.
■ Installation

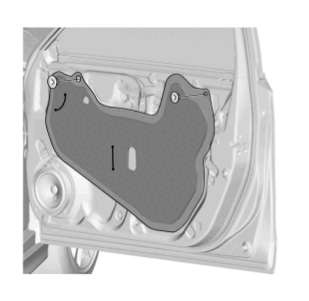

NOTE:If the front door plastic cover is damaged or torn, replace it with a new one.

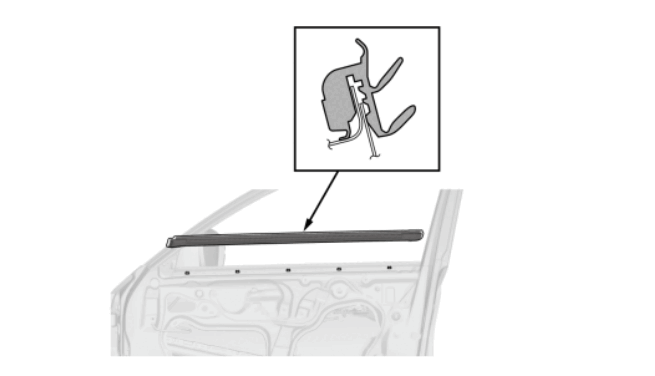

- H.-
Sub-Procedure
■ Removal
- Refer to the figure.
- I.-
After Installation
- J.-
- K.-
Sub-Procedure
■ Removal

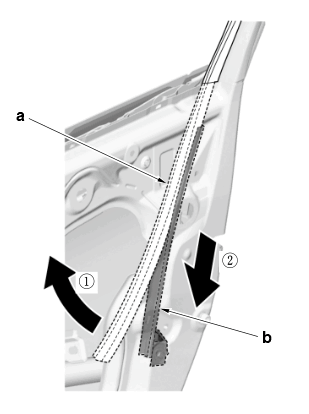

1. Remove the front door glass run channel (a) as needed.
2. Remove the front door center lower channel (b).
After Installation
- L.-
After Installation
- M.-
Sub-Procedure
Figure 1
Figure 2
■ Removal
1. Refer to figure 1.

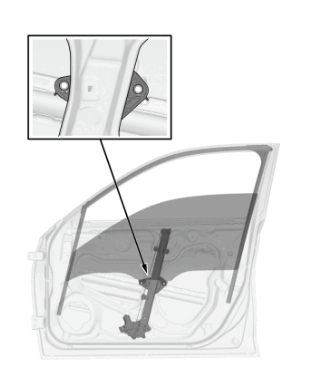

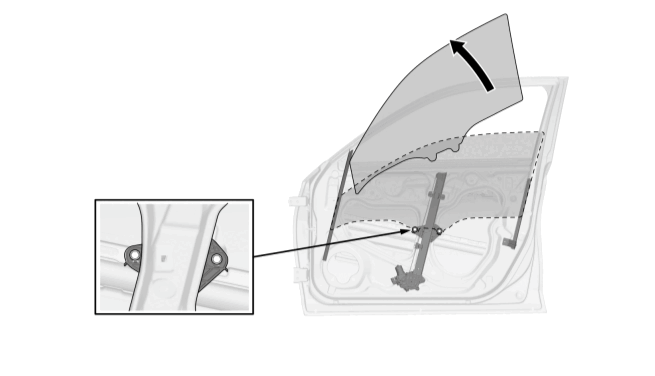

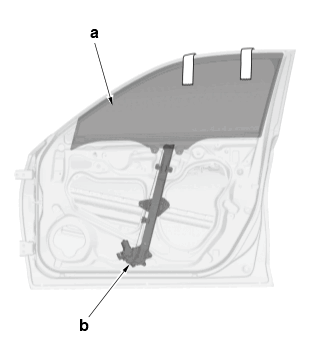

2. Pull the front door glass (a) up to the fully closed position and hold it so that it does not drop. (Figure 2)
3. Remove the front door regulator (b). (Figure 2)
Figure 3
■ Installation

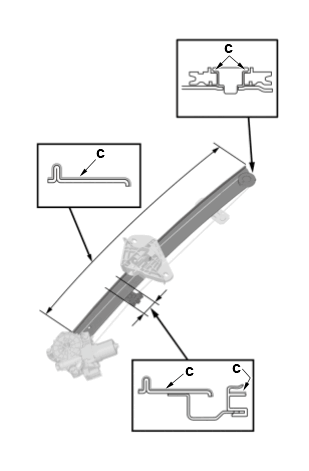

Lubricant Specifications (Figure 3)
Position Type c Multipurpose Grease After Installation
- N.-
Sub-Procedure
■ Removal
- Refer to the figure.
After Installation
- O.-
Sub-Procedure
■ Removal
- Refer to the figure.

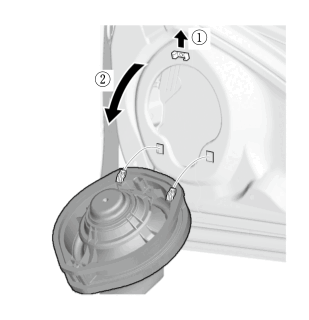

- P.-
Sub-Procedure
■ Removal
- Refer to the figure.
- Q.-
Sub-Procedure
■ Removal

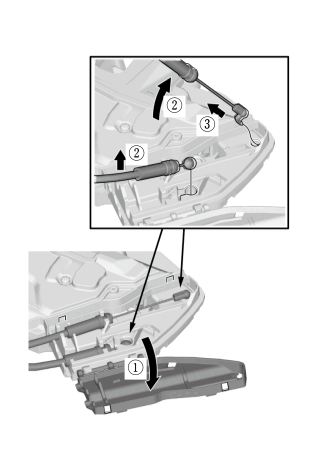

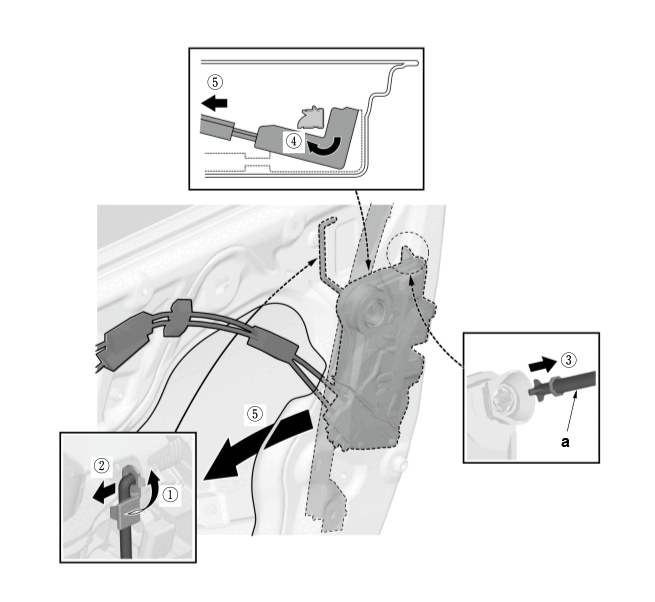

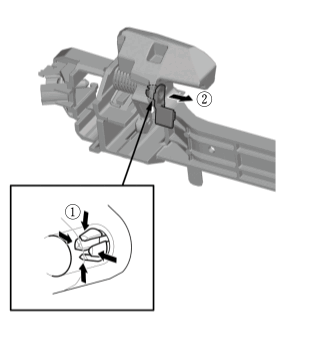

- Driver's side: Disconnect the lock cylinder rod (a). (Figure 1)
Figure 1
■ Installation
Lubricant Specifications (Figure 2)
Position Type b Multipurpose Grease Figure 2
- R.-
Sub-Procedure
■ Removal
- Refer to the figure.

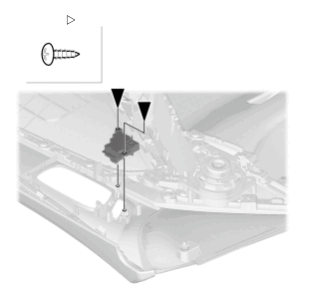

- S.-

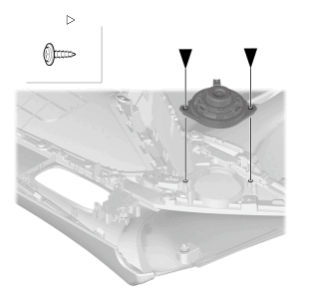

- T.-

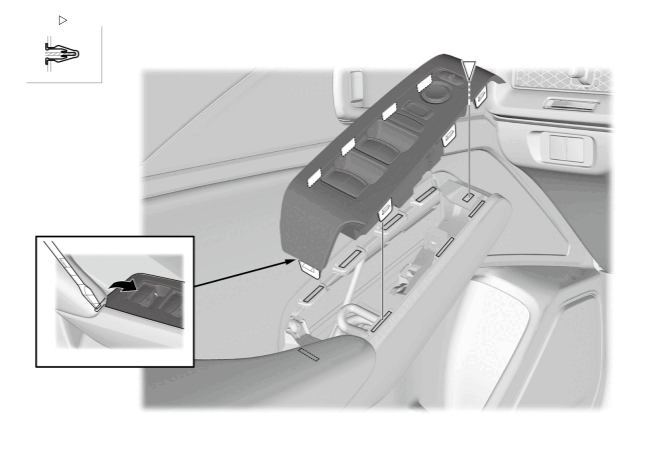

- U.-NOTE:
If the power window switch is replaced, reset the power window control unit . If the original power window switch is installed, confirm that the power window works properly.
After Installation
