Repair Procedure

WARNING:

• SRS components are located in this area. Before doing repairs or service:
• • -

    Review the SRS component locations .

• • -

    Review the precautions and procedures .

How to use this service information .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

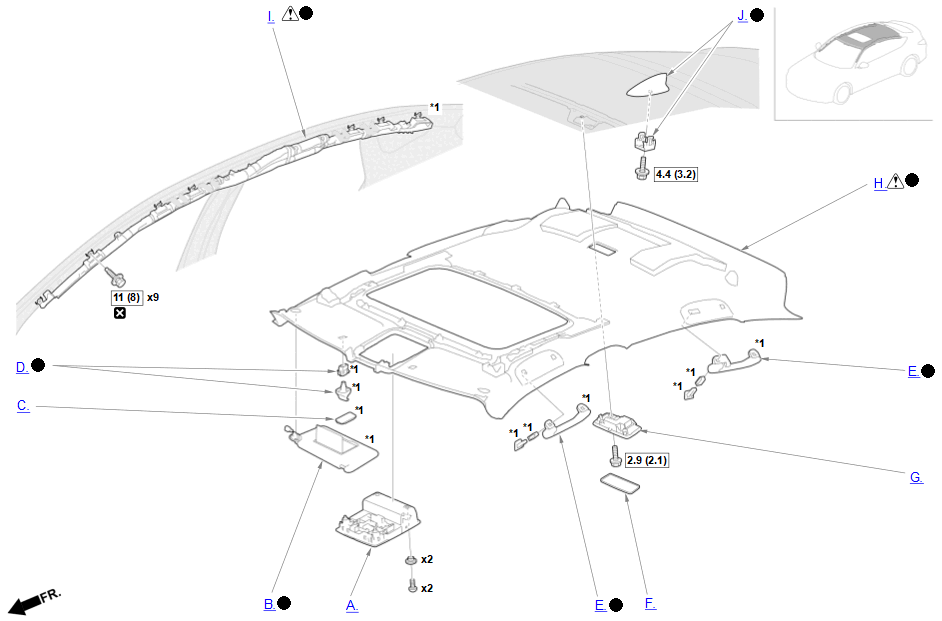

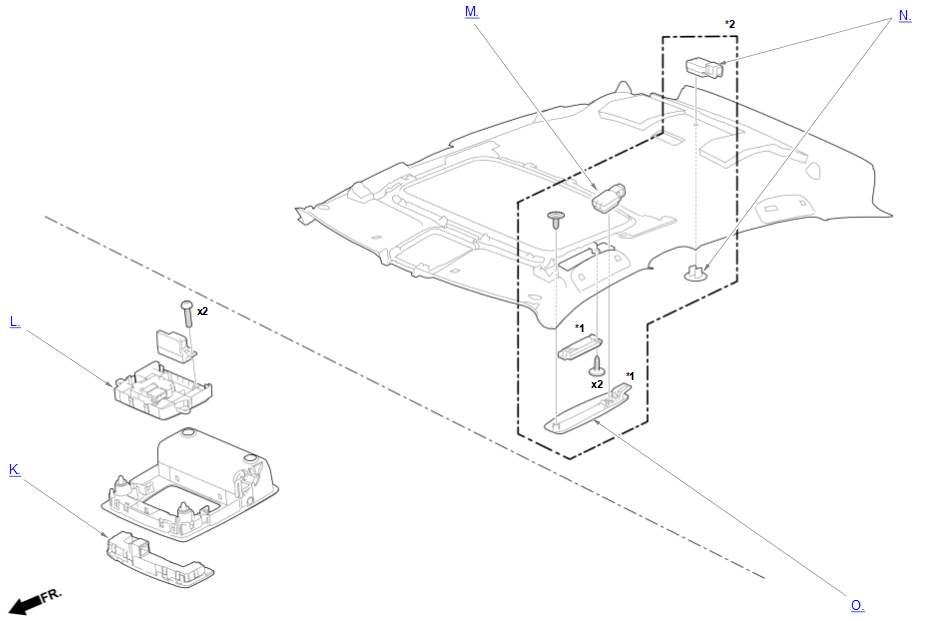

*1: Part(s) are shown for one side only as the procedure is the same for both sides.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: Part(s) are shown for one side only as the procedure is the same for both sides.*2: Display audio type (9-inch screen)

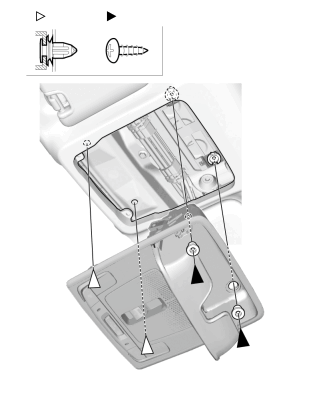

1. A.-

   Courtesy of HONDA, U.S.A., INC.

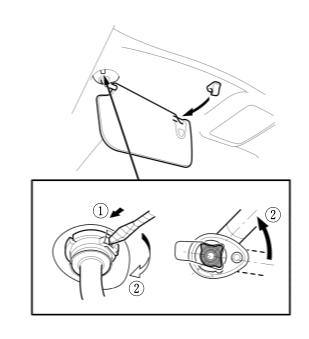

2. B.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

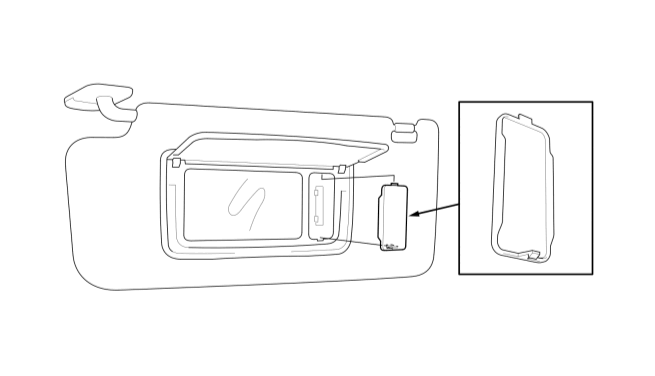

   Removal

   • Refer to the figure.

   Installation

   • After inspecting the sunvisor, then install the sunvisor.

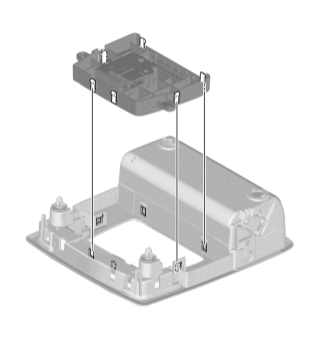

3. C.-

   Courtesy of HONDA, U.S.A., INC.

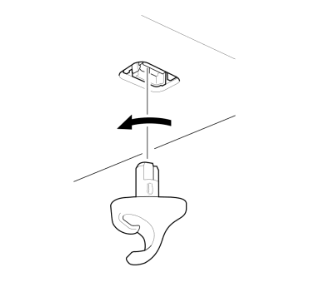

4. D.-

   Sub-Procedure

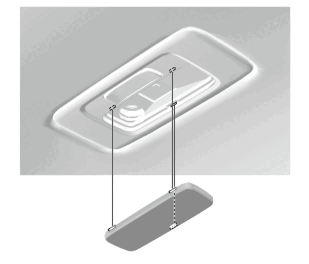

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

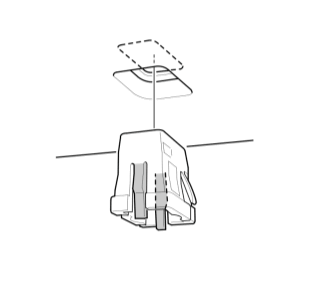

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to figure 1 and 2.

   Installation

   • After inspecting the sunvisor holder, install the sunvisor holder .

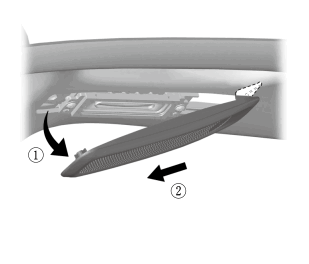

5. E.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

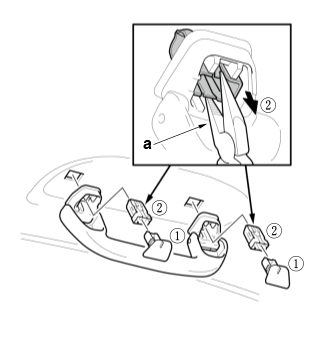

   Removal

   • Refer to the figure.

   Tool Details

   Name
   a	Pliers (Commercially Available)

   Installation

   • After inspecting the grab handle, install the grab handle .

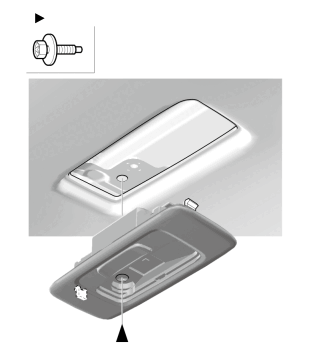

6. F.-

   Courtesy of HONDA, U.S.A., INC.

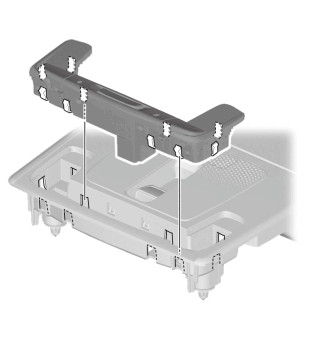

7. G.-

   Courtesy of HONDA, U.S.A., INC.

8. H.-

   NOTE:  Do not bend the headliner. Bending the headliner will crease and damage it.

   Preconditions

   • 12 Volt Battery Negative Terminal Disconnected
   • Both Front Seat-Backs Full Reclined

   Key Information

   Do the following before starting your work.

   Remove:

   • Both Dashboard Side Lids
   • Interior Trim Area Parts
   • • -

       Both Front Door Opening Seals (as needed)

     • -

       Both Rear Door Opening Seals (as needed)

     • -

       Both A-Pillar Trims

     • -

       Both B-Pillar Upper Trims

     • -

       Both C-Pillar Trims

     • -

       Tailgate Weatherstrip (as needed)

   • Center Console Area Parts - Refer to: Center Console Area(M/T) or Center Console Area(CVT)
   • • -

       CVT: Shift Lever Bracket Base (as needed)

     • -

       M/T: Shift Lever Housing Bracket (as needed)

   • Camera Cover

   Sub-Procedure

   Removal

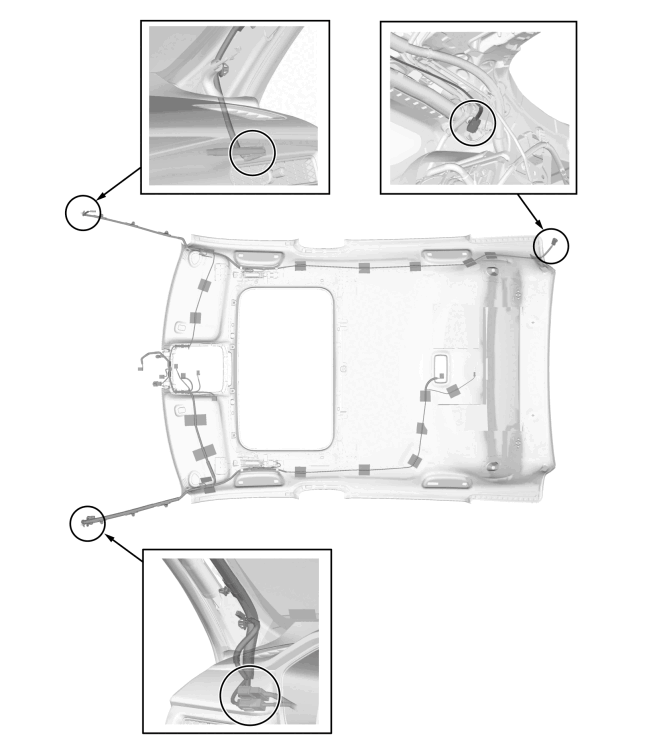

   1. Refer to figure 1.

   NOTE:  The positions and number of connectors vary depending on models.

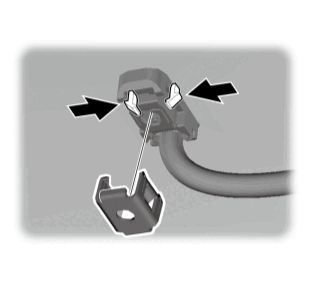

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

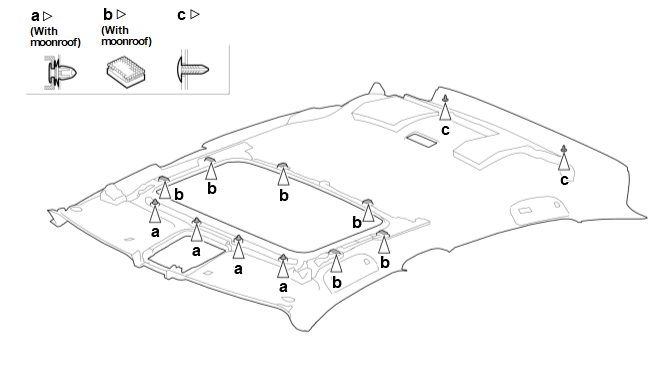

   2. Refer to figure 2.

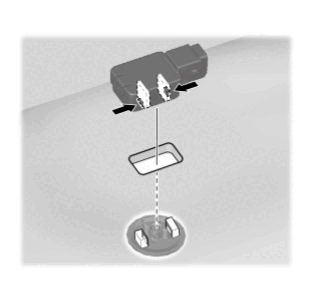

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   3. Refer to figure 3.

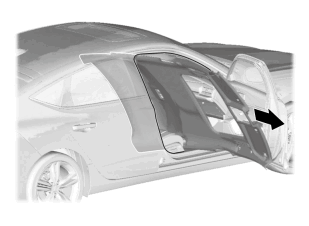

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   Installation

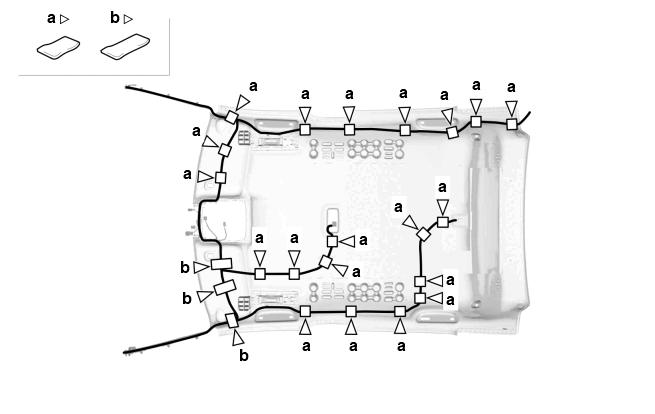

   • Refer to figure 4, 5 and 6.

   NOTICE:

   When using a new headliner, check the headliner and the pillar trim overlap. - Refer to: Airbag and Tensioner Disposal or SRS Component Replacement/Inspection After Deployment

   NOTE:

   • After inspecting the headliner, then install the headliner .
   • The positions and number of tapes change with models.
   • Replace the tapes with new ones.

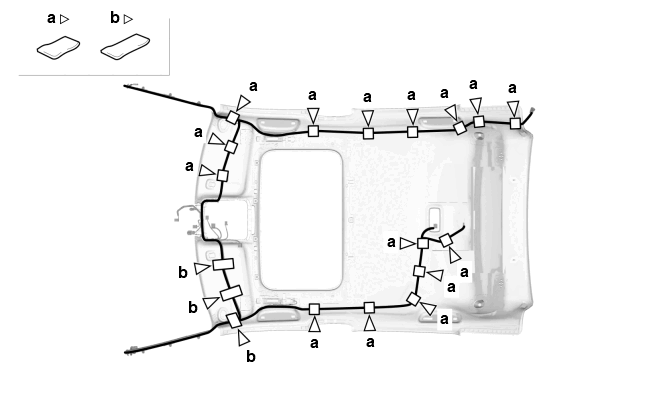

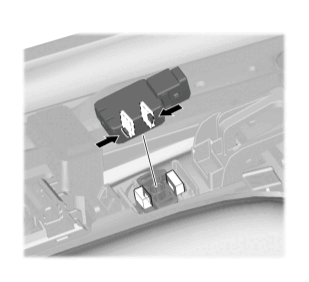

   Figure 4 (Color audio type (7-inch Screen))

   Courtesy of HONDA, U.S.A., INC.

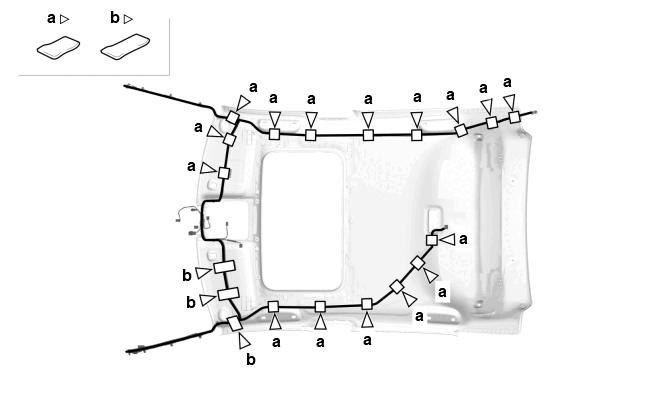

   Figure 5 (Display audio type (9-inch Screen))

   Courtesy of HONDA, U.S.A., INC.

   Figure 6 (Without moonroof)

   Courtesy of HONDA, U.S.A., INC.

   After Installation

   • 12 Volt Battery Negative Terminal Reconnect
9. I.-

   WARNING:

   • Review the precautions and procedures before doing repairs or service .
   • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

   NOTICE:

   If you are replacing the side curtain airbag after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal or SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.

   Preconditions

   • 12 Volt Battery Negative Terminal Disconnected

   Sub-Procedure

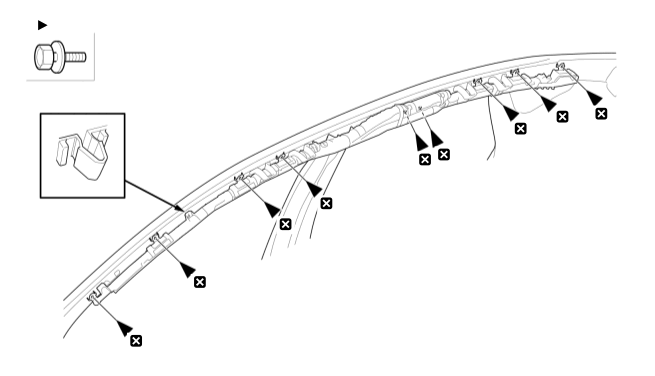

   Removal

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

   Installation

   NOTICE:

   • If the side curtain airbag is frayed, or has any other visible damage, replace it. Do not attempt to repair an airbag.
   • When you install the side curtain airbag, make sure it is not twisted, and that it is not caught between the inflator bracket by the bracket bolts.
   • Make sure that the side curtain airbag inflator retainer is installed properly. Otherwise the side curtain airbag could incorrectly deploy and cause damage or injuries.
   • Assemble the wire harness of the side curtain airbag in order not to be caught.
   • Apply light force to the inflator and the adapter pipe to make sure there is no excessive play or looseness.
   • Before installing the headliner, make sure the SRS indicator works normally.

   After Installation

   • 12 Volt Battery Negative Terminal Reconnect
   • Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
10. J.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.

      NOTE:  When removing the capture washer, replacing with a new one is recommended.

    After Installation

    NOTE:  In case of reusing the capture washer, perform the shower test to confirm that there is no water leakage.

    • Water Leaks Check
11. K.-

    Courtesy of HONDA, U.S.A., INC.

12. L.-

    Courtesy of HONDA, U.S.A., INC.

13. M.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
14. N.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
15. O.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
