Repair Procedure

How to use this service information .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: M/T

1. A.-
   WARNING:

   Do not connect the brake pedal position switch connector with the brake pedal position switch removed. The engine may start if the start/stop button is pressed as the system interprets that the brake pedal is depressed. Unintended starting of the engine is dangerous.

   Key Information

   Do the following before starting your work.

   Remove:

   • Driver's Heater Duct B

   Sub-Procedure

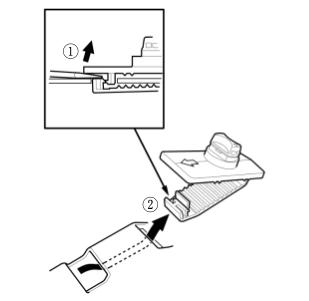

   Courtesy of HONDA, U.S.A., INC.

   ■ Removal

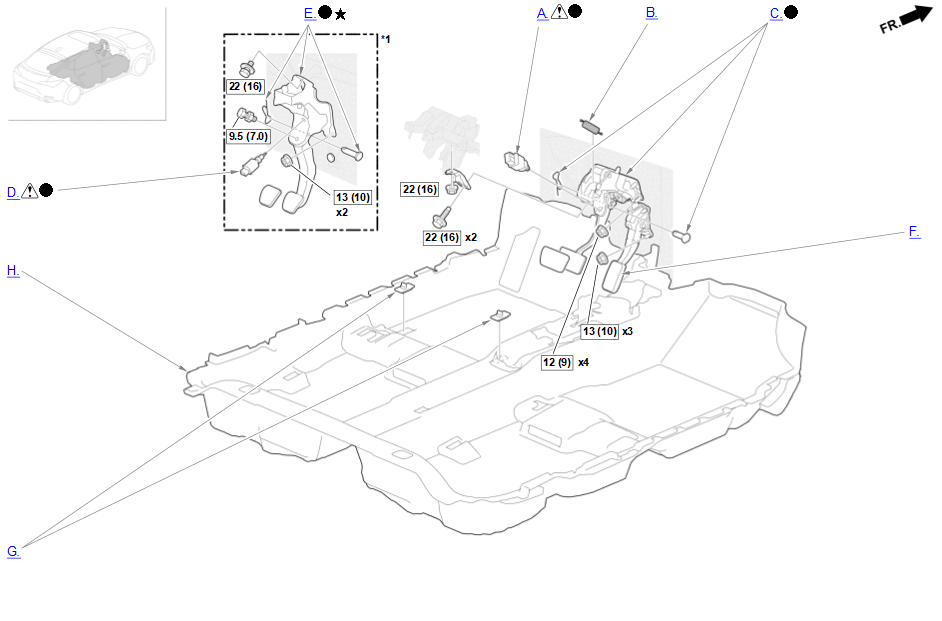

   • Refer to the figure.

   After Installation

   • Brake Pedal Position Switch Adjustment
2. B.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Driver's Heater Duct B

   Sub-Procedure

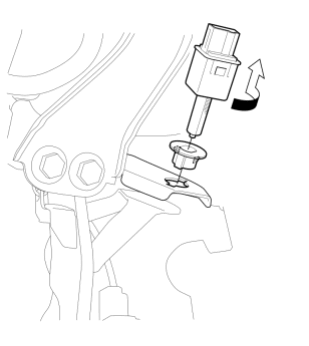

   Courtesy of HONDA, U.S.A., INC.

   ■ Installation

   Lubricant Specifications

   Position	Type
   a	Multipurpose Grease

3. C.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Driver's Heater Duct B

   Sub-Procedure

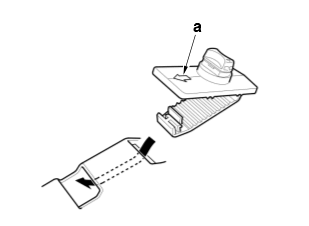

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   ■ Installation

   Lubricant Specifications (Figure 1)

   Position	Type
   a	Multipurpose Grease

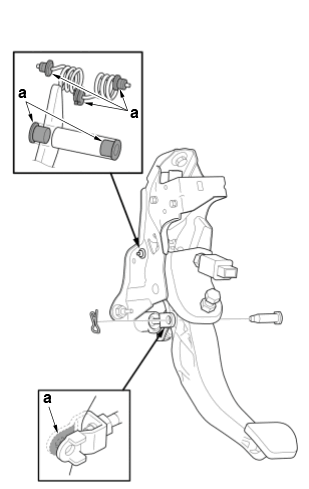

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   • Install the lock pin as shown. (Figure 2)

   After Installation

   • Brake Pedal Position Switch Adjustment
4. D.-

   Sub-Procedure

   ■ Installation

   NOTE:

   Loosely install the clutch pedal position switch.

   After Installation

   • Clutch Pedal Position Switch Adjustment
5. E.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Driver's Heater Duct B

   Sub-Procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   ■ Installation

   Lubricant Specifications (Figure 1)

   Position	Type
   a	Multipurpose Grease

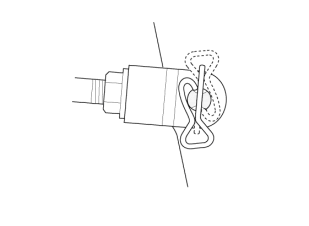

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   • Install the lock pin as shown. (Figure 2)

   After Installation

   • Clutch Pedal Stroke Sensor Zero Point Learn
6. F.-

   Sub-Procedure

   ■ Removal

   NOTE:

   The APP sensor is not available separately. Do not disassemble the accelerator pedal module.

7. G.-

   Sub-Procedure

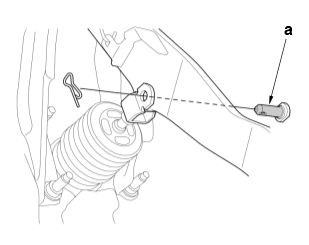

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   ■ Removal

   • Refer to figure 1.

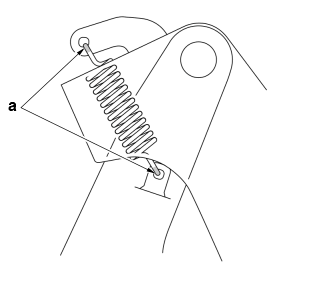

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   ■ Installation

   • Refer to figure 2.

   Installation Directions

   Position	Direction
   a	Vehicle front side

8. H.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Driver's Seat
   • Passenger's Seat
   • Rear Seat Cushion
   • Center Console Area Parts - Refer to: Center Console Area (M/T) or Center Console Area (CVT)
   • • -

       Shift Lever Bracket Base (CVT)

     • -

       Shift Lever Housing Bracket (M/T)

     • -

       Rear Heater Joint Duct

   • Interior Trim Area Parts
   • • -

       Both Rear Door Sill Trims

     • -

       Both Kick Panels

     • -

       Both B-Pillar Lower Trims

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

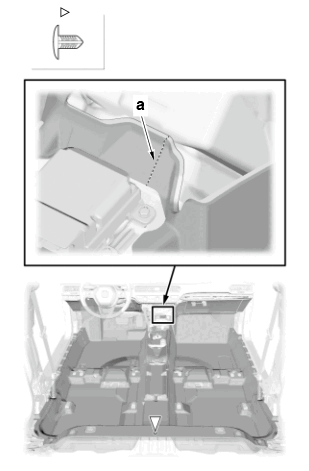

   ■ Removal

   • Cut the carpet in the area (a), then remove the carpet.
