Heated Steering Wheel Temperature Sensor Test: Test

How to use this service information .

WARNING:

SRS components are located in this area. Before doing repairs or service:
- -
  Review the SRS component locations .
- -
  Review the precautions and procedures .

NOTE:

The heated steering wheel temperature sensor is built into the steering wheel.

Steering Heater - Test
Preconditions
- Driver's Airbag Removed

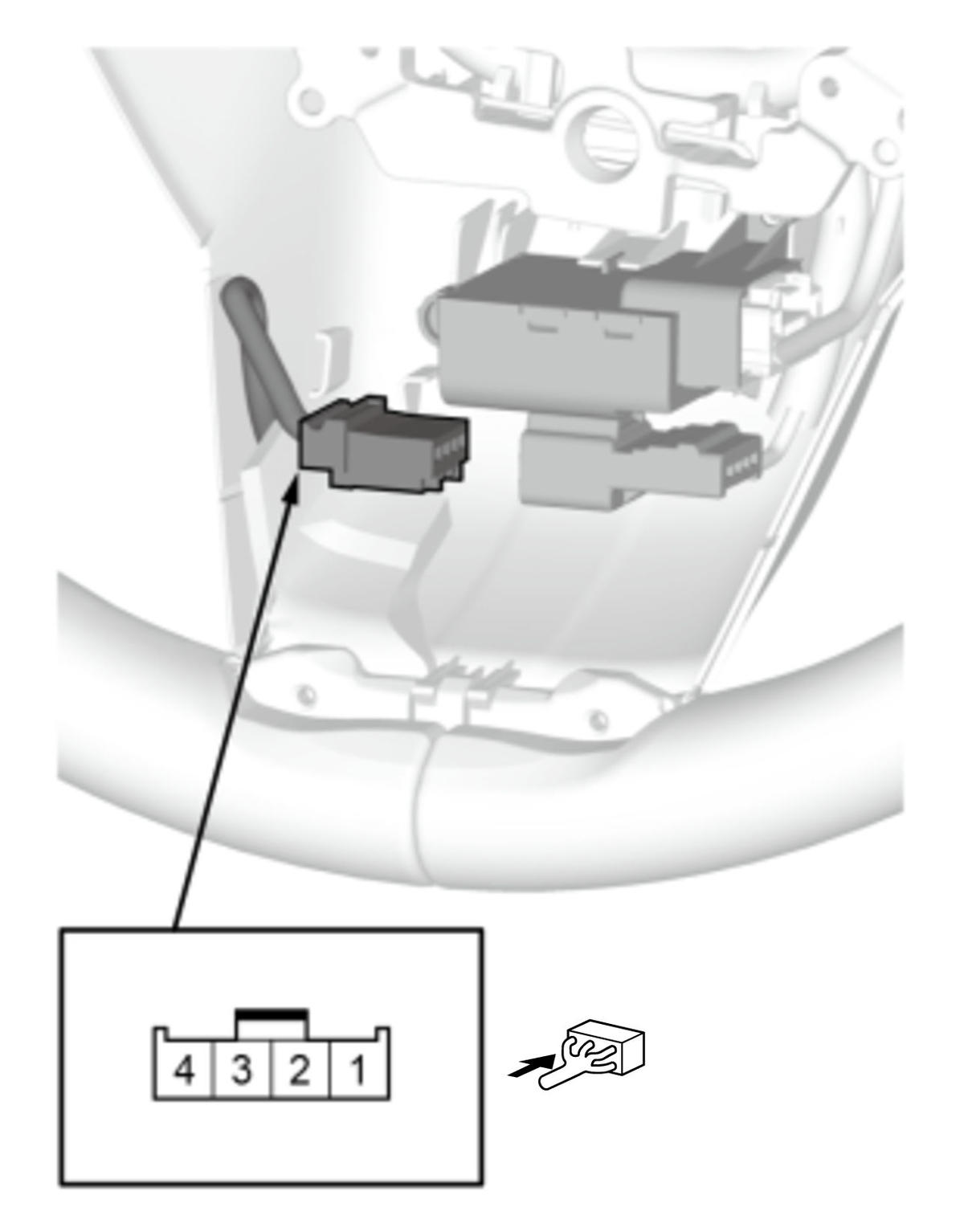

Figure 1

Courtesy of HONDA, U.S.A., INC.

Figure 2

Courtesy of HONDA, U.S.A., INC.

Figure 3

Courtesy of HONDA, U.S.A., INC.

Procedure/Specifications

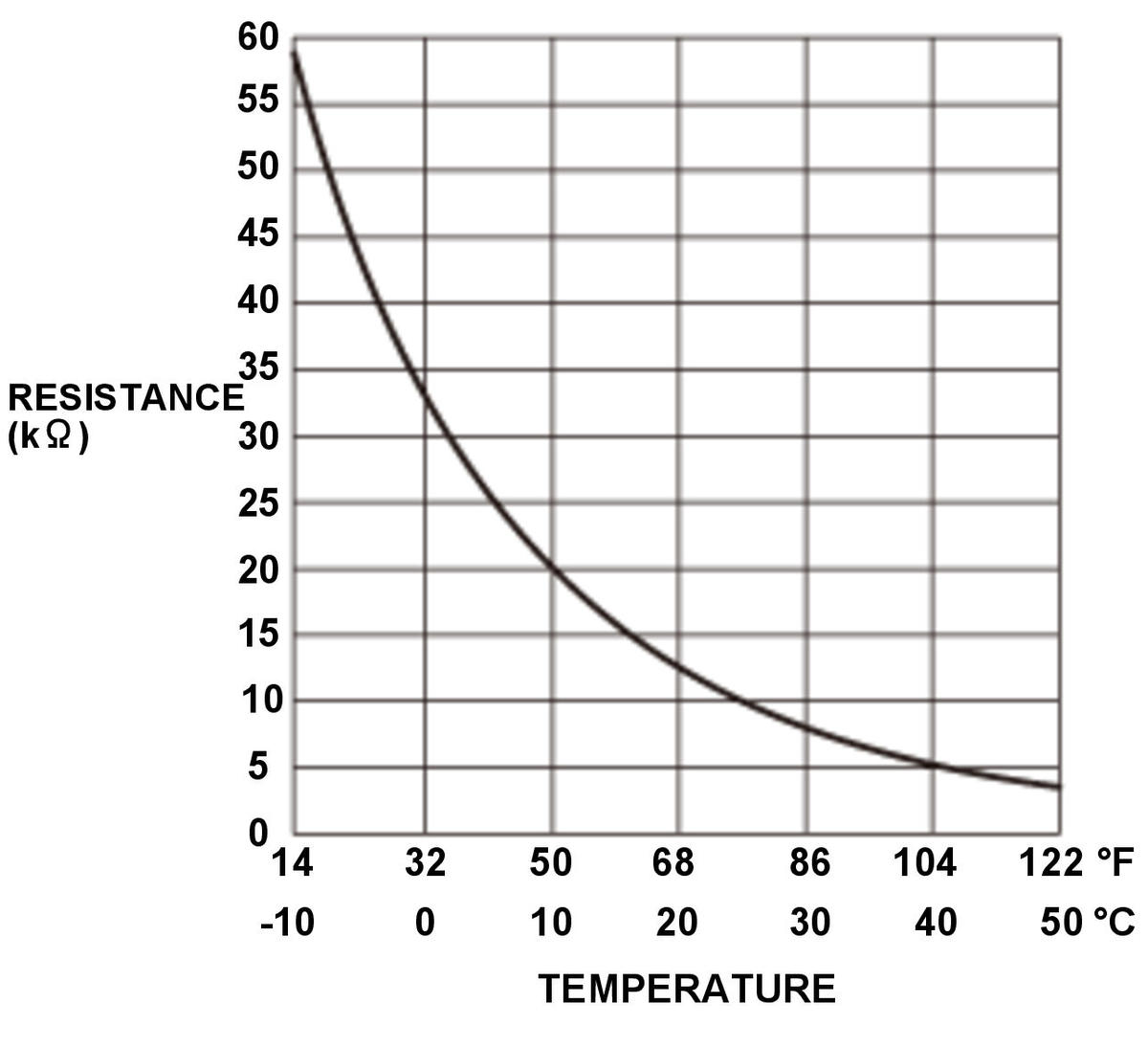

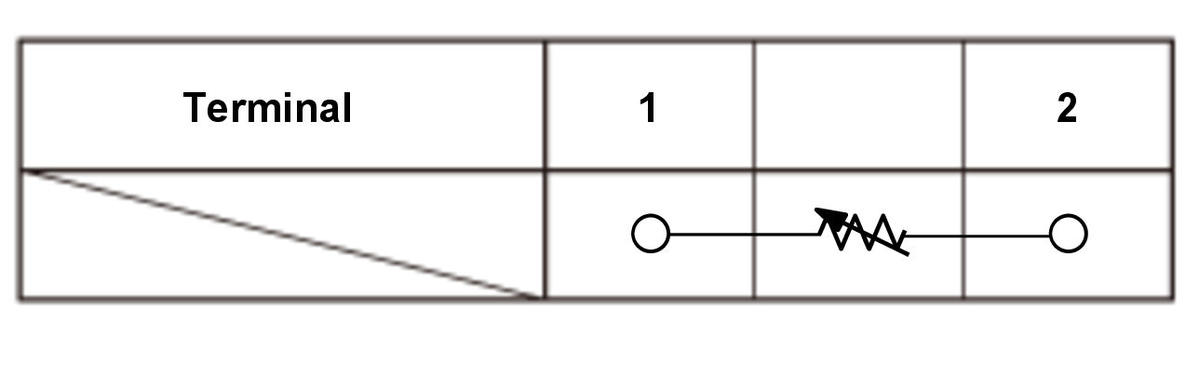

1. Measure the resistance between the terminals according to the table. (Figure 1, 2, and 3)2. Compare the resistance readings with the specifications shown in the graph; the resistance should be within the specifications.

Result
- If the result is not as specified, replace the steering wheel .
