TPMS System Description - System Diagram

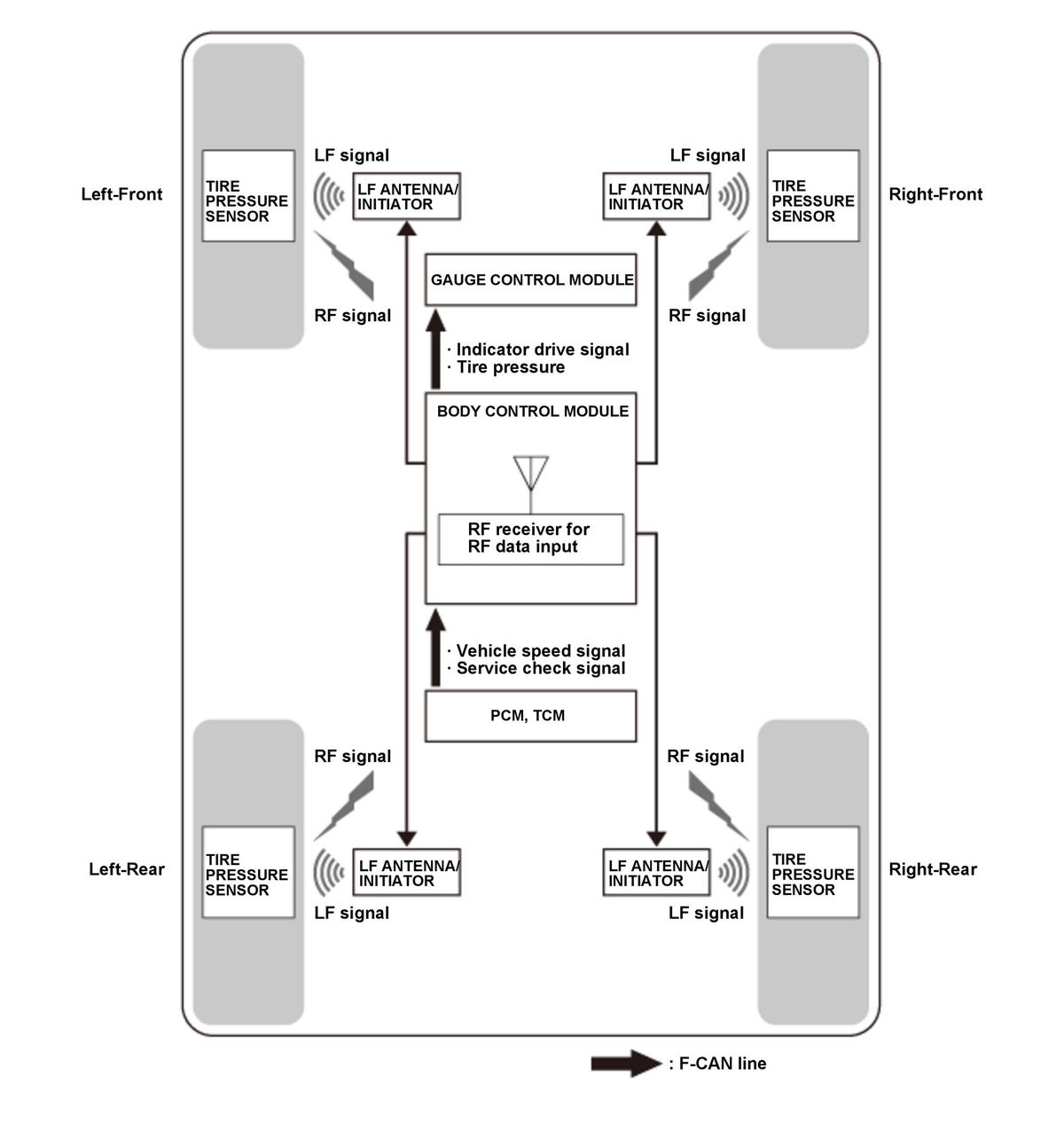

The system diagram of the TPMS is shown below.

For locations of each component on the vehicle, refer to the Component Location Index:

• Body control module, Tire pressure sensor, LF antenna/Initiator
• PCM - Refer to: Fuel and Emissions Systems Component Location Index (M/T, Type-S) (2024 2025) or Fuel and Emissions Systems Component Location Index (1.5L Engine)
• TCM
• Gauge control module

Courtesy of HONDA, U.S.A., INC.
