Gauge Control Module Connector for Inputs and Outputs
| Connector Index |
|---|
| Gauge Control Module Connector A (32P) |
| Gauge Control Module Connector B (12P) |

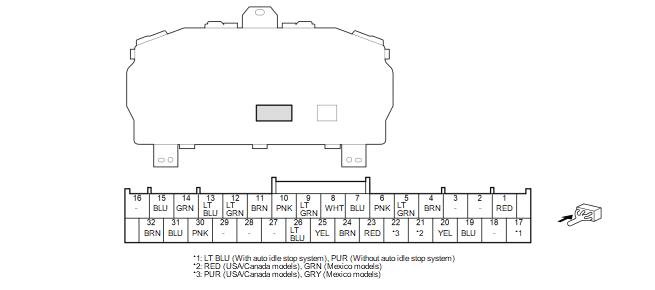

Gauge Control Module Connector A (32P) (female terminals)
| Terminalnumber | Terminal name | Description |
|---|---|---|
| 1 | +B_BACK_UP | Power source for gauge control module |
| 2 | Not used | --- |
| 3 | Not used | --- |
| 4 | GND | Ground for gauge control module |
| 5 | CRUISE_GND | Ground for ACC combination switch |
| 6 | SPORT_MODE_SW | Detects SPORT_MODE_SW signal |
| 7 | MODE_UP | Detects MODE_UP signal |
| 8 | MODE_DOWN | Detects MODE_DOWN signal |
| 9 | VSA_OFF_SW | Detects VSA_OFF_SW signal |
| 10 | PARK_LAMP | Detects PARK_LAMP signal |
| 11 | BRAKE_LEVEL_SW | Detects BRAKE_LEVEL_SW signal |
| 12 | BRAKE_HOLD | Detects BRAKE_HOLD signal |
| 13 *1 | IDLE_STOP_OFF | Detects IDLE_STOP_OFF signal |
| 14 | CRUISE_SW | Detects CRUISE_SW signal |
| 15 | ILL- (LED) | Detects ILL- (LED) signal |
| 16 | Not used | --- |
| 17 | IG1_RELAY1 *1 | IG1 power source |
| IG1_METER *2 | IG1 power source | |
| 18 | Not used | --- |
| 19 | IF-CAN_H | Communication line |
| 20 | IF-CAN_L | Communication line |
| 21 | FUEL_GAUGE- | Ground for fuel gauge sending unit |
| 22 | FUEL_GAUGE+ | Detects fuel gauge sending unit signal |
| 23 | LIN (START_SW) | Communication line |
| 24 *3 | WASHER_LEVEL_SNSR | Detects WASHER_LEVEL_SNSR signal |
*1: With auto idle stop system*2: Without auto idle stop system*3: With washer fluid level switch
| Terminalnumber | Terminal name | Description |
|---|---|---|
| 25 | LKAS_DISTANCE_SW | Detects LKAS_DISTANCE_SW signal |
| 26 | ILLUMI_CANCEL | Outputs ILLUMI_CANCEL signal |
| 27 | Not used | --- |
| 28 | Not used | --- |
| 29 | Not used | --- |
| 30 | BB-CAN_H | Communication line |
| 31 | BB-CAN_L | Communication line |
| 32 | GND | Ground for gauge control module |
*1: With auto idle stop system*2: Without auto idle stop system*3: With washer fluid level switch

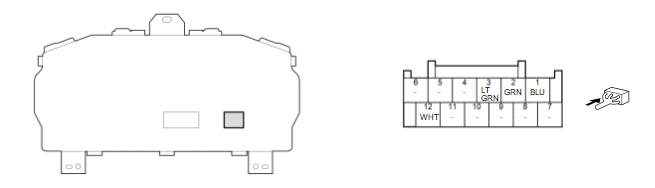

Gauge Control Module Connector B (12P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | M-CAN_H | Communication line |
| 2 | M-CAN_L | Communication line |
| 3 | HUD_UART | Communication line |
| 4 | Not used | --- |
| 5 | Not used | --- |
| 6 | Not used | --- |
| 7 | Not used | --- |
| 8 | Not used | --- |
| 9 | Not used | --- |
| 10 | Not used | --- |
| 11 | Not used | --- |
| 12 | INT_ILLUMI_CONT | Detects INT_ILLUMI_CONT signal |
