DTC Advanced Diagnostics: P2650 (2.0L Engine) (2024 2025)
DTC P2650 : Rocker Arm Oil Control Solenoid Circuit Malfunction
General Description

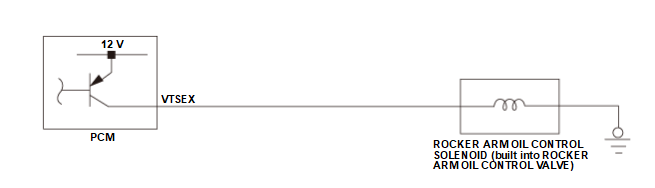

The powertrain control module (PCM) controls the switching of the exhaust valve timing by actuating the rocker arm oil control solenoid. The rocker arm oil control solenoid control circuit is monitored for electrical malfunctions. The PCM detects a short circuit to ground, short circuit to power, and open circuit. If the rocker arm oil control solenoid output voltage is a specified value, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 0.5 seconds or more |
| DTC Type | One drive cycle, MIL on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Engine speed [Engine Speed] | 80 rpm | - |
| 12 volt battery voltage [Battery] (power voltage input to PCM) | 8 V | 16 V |
| Other | Rocker arm oil control solenoid power stage off | |
[ ]: HDS Parameter
Malfunction Threshold
The rocker arm oil control solenoid output voltage is between 0 - 2.2 V.
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Rocker arm oil control solenoid VTSEX line open
- Rocker arm oil control solenoid ground line open
- Rocker arm oil control solenoid failure
- PCM internal circuit failure
Confirmation Procedure
Operating Condition
Start the engine. Hold the engine speed [Engine Speed] at 3, 000 rpm without load (in neutral) until the radiator fan comes on, then let it idle.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
