Input Shaft Thrust Clearance Adjustment (CVT): Adjustment

How to use this service information .

  1. Input Shaft Thrust Clearance - Adjust

    Preconditions

    • Following Parts in Transmission Components Installed - Refer to: Transmission Components (CVT) or Transmission Components (M/T, Type-S) (2024 2025) or Transmission Components (M/T, Except Type-S)
      • -

        Reverse Brake Piston

      • -

        Spring Retainer/Return Spring Assembly

      • -

        Snap Ring (Spring Retainer/Return Spring Assembly)

      • -

        Disc Spring

      • -

        Reverse Brake Plates

      • -

        Reverse Brake Discs

      • -

        Reverse Brake End-Plate

      • -

        Snap Ring (Reverse Brake End-Plate)

      • -

        Washer (Planetary Carrier Assembly)

      • -

        Thrust Washer (Planetary Carrier Assembly)

      • -

        Planetary Carrier Assembly

      • -

        Sun Gear

      • -

        Cotter (Sun Gear)

      • -

        Cotter Retainer (Sun Gear)

      • -

        Snap Ring (Sun Gear)

      • -

        Ring Gear

      • -

        Thrust Needle Bearing (Sun Gear)

      • -

        Input Shaft Assembly

      • -

        Thrust Needle Bearing (Input Shaft Assembly)

      • -

        Thrust Shim (Input Shaft Assembly)

      • -

        Stator Shaft

      • -

        Stator Shaft Flange

      • -

        Separator Plate

      • -

        Manual Valve Body

      • -

        Torque Converter Housing

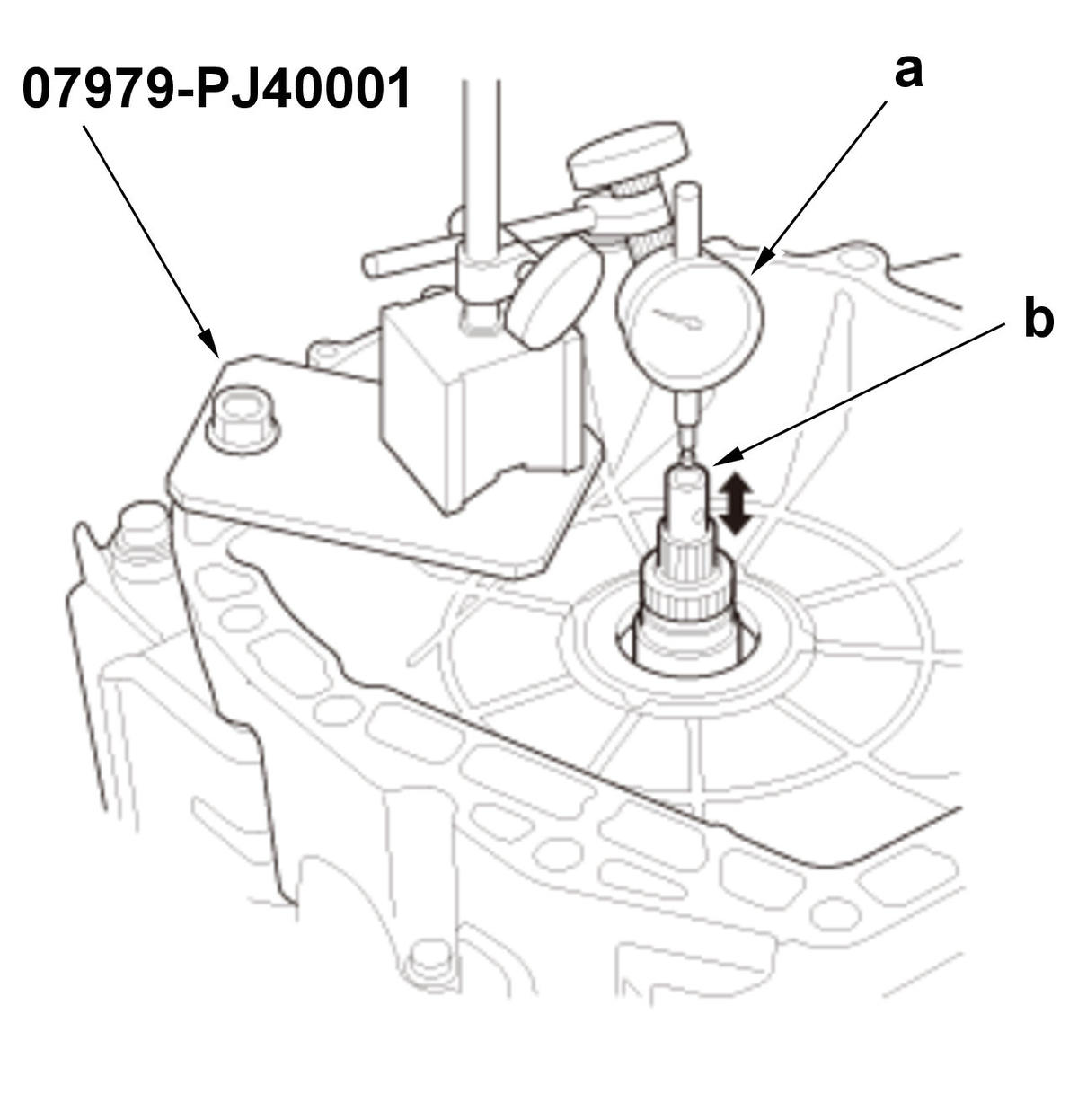

    GHH528602Courtesy of HONDA, U.S.A., INC.

    Procedure/Specifications

    1. Install the magnet stand base as shown.

    2. Set a dial indicator (a) on the tip of the input shaft (b).

    Tool Details

    Name
    a Dial Indicator

    3. Zero the dial indicator.

    4. Measure the input shaft thrust clearance by lifting the input shaft up.

    NOTICE:  Take measurements in at least three places, and use the average as the actual clearance.

    Specifications

    Standard Value
    0.15-0.25 mm (0.0059-0.0098 in)

    Result

    • If it is abnormal, refer to the Parts catalog, then select appropriate thrust shim, and recheck the thrust clearance.
