Exploded View

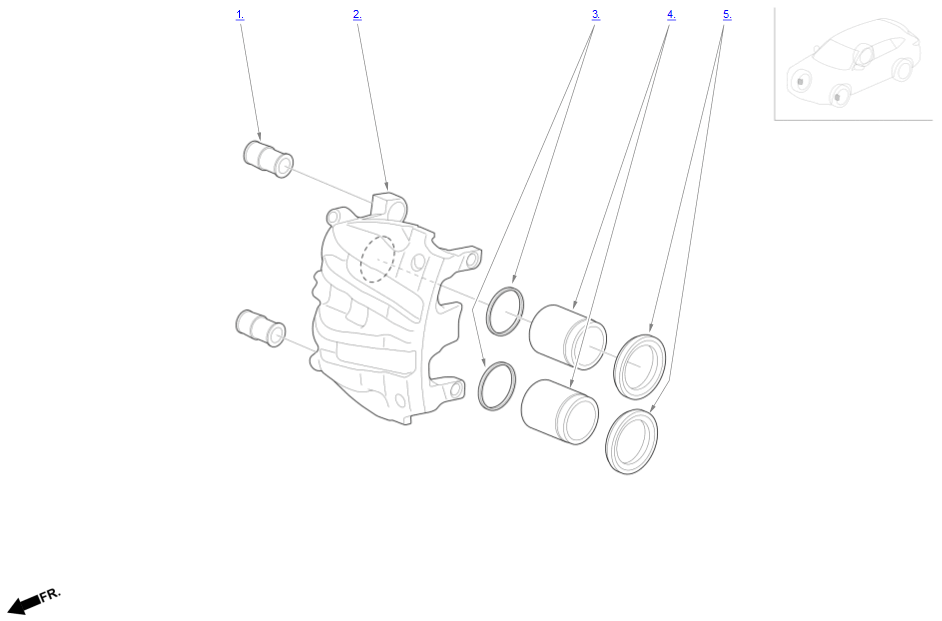

GHH662582Courtesy of HONDA, U.S.A., INC.
  1. Pin Bushing
  2. Caliper Body
  3. Piston Seal
  4. Piston
  5. Piston Boot
