Power Lumbar Support Circuit Diagram (3.5L Engine)

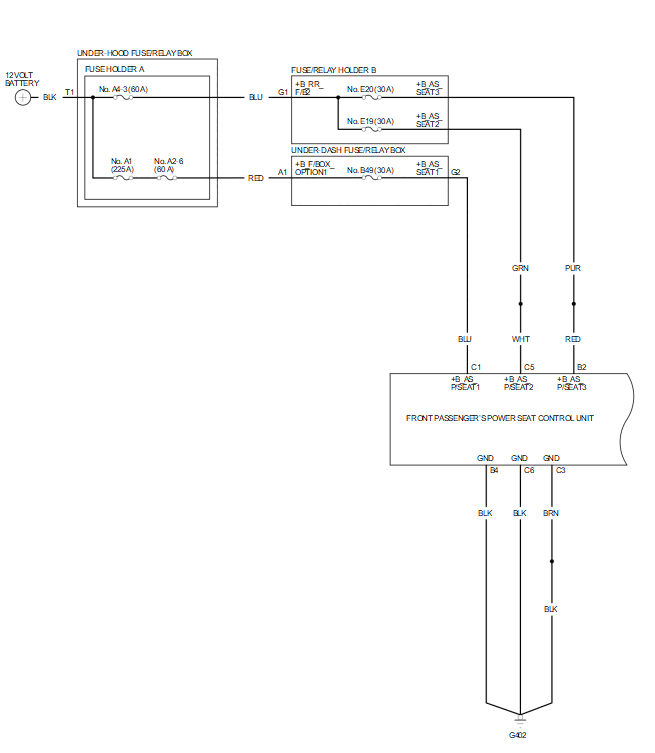

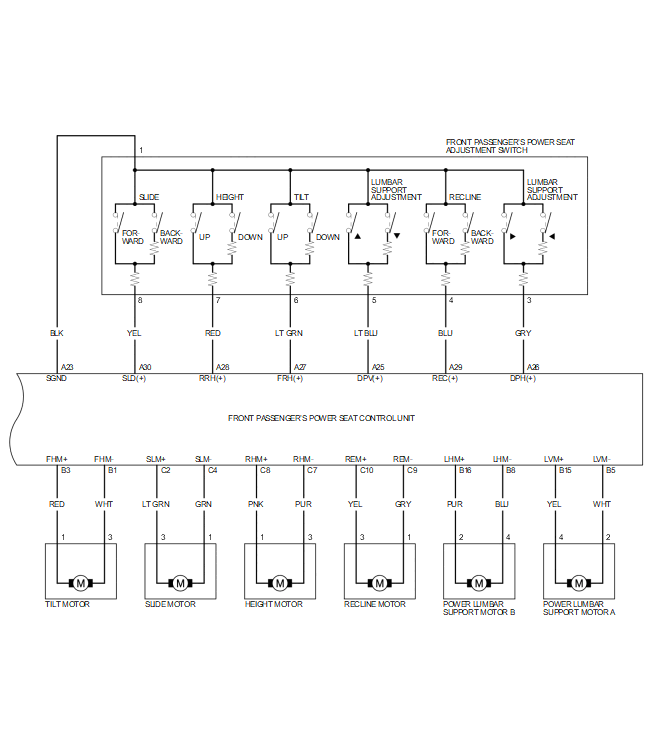

Front Passenger's Power Seat (without seat position memory system)
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|

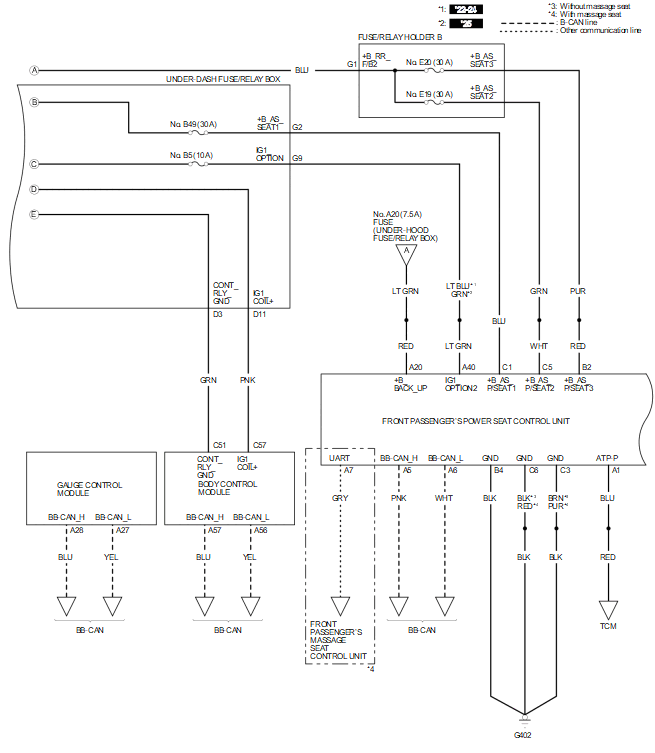

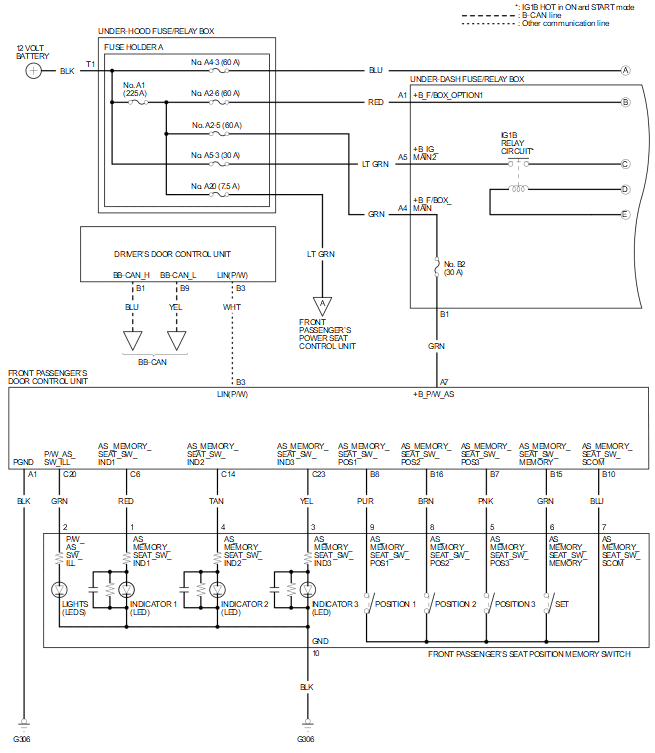

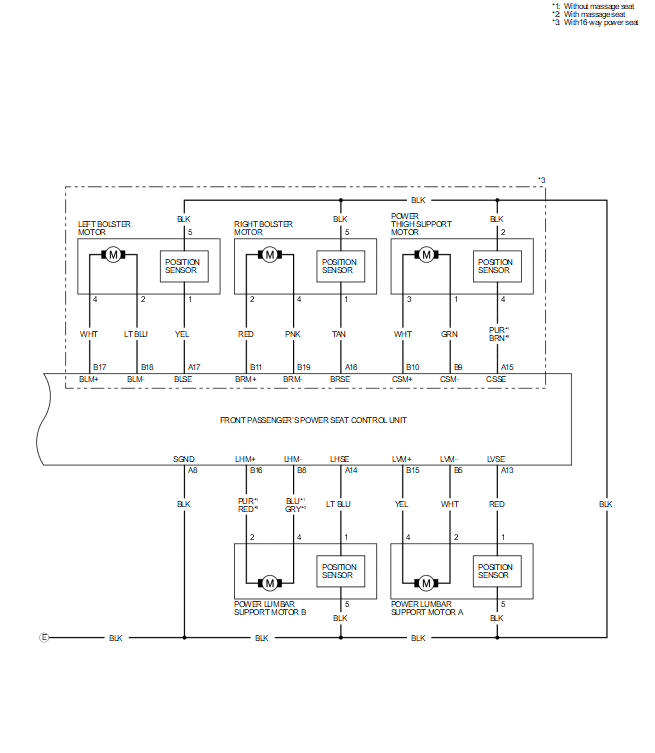

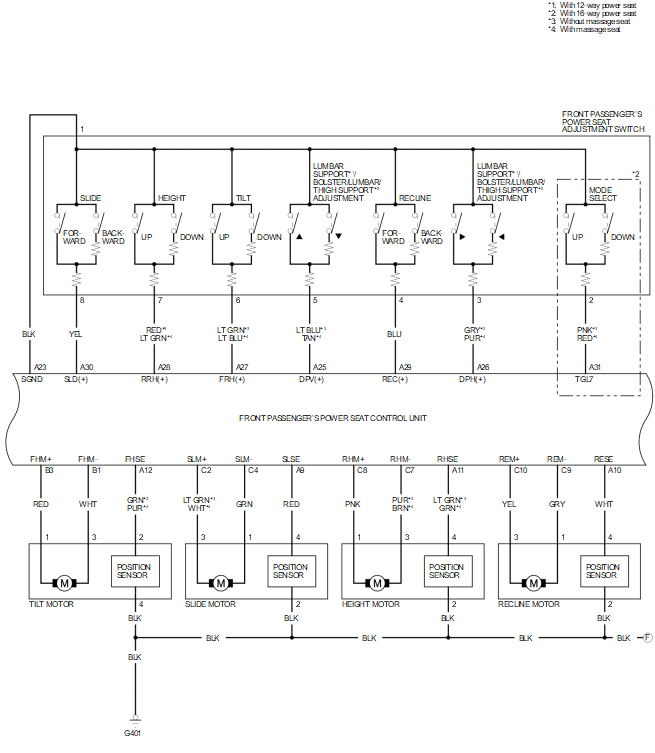

Front Passenger's Power Seat (with seat position memory system)
NOTE:
For details of the CAN circuit, refer to the Network Communications Circuit Diagram.
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
