Exploded View
For replacement of components listed below, see Repair Procedure

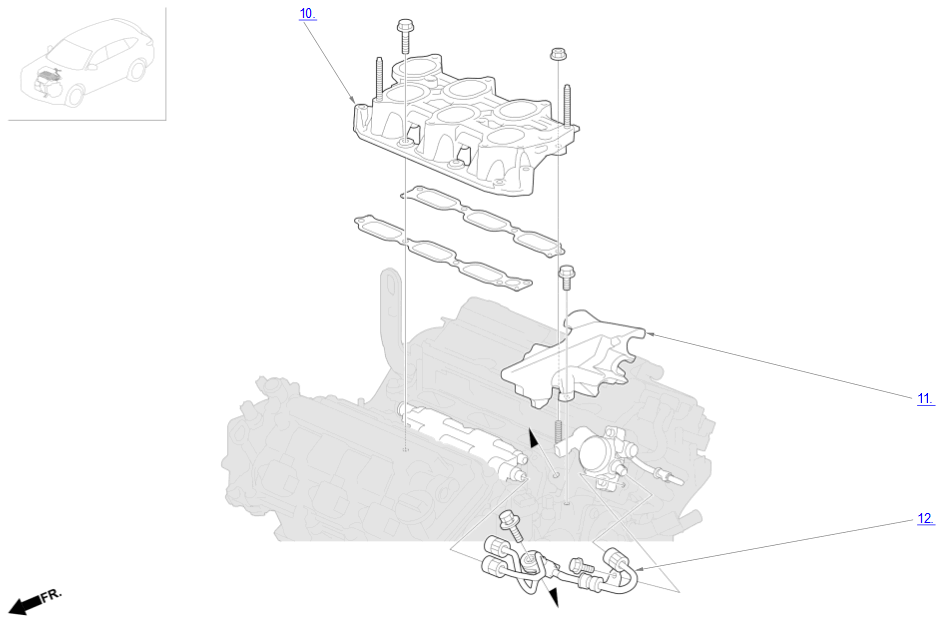

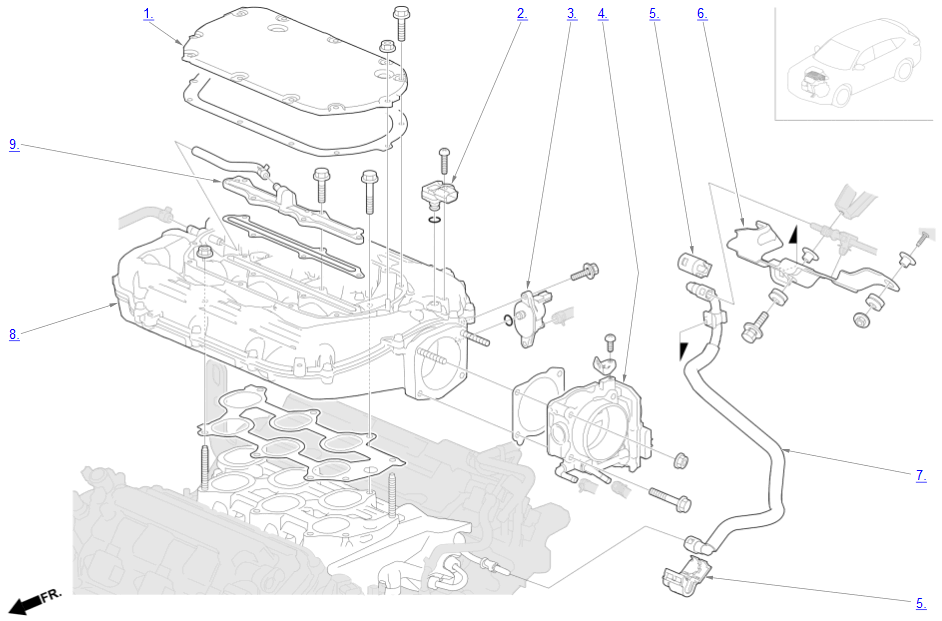

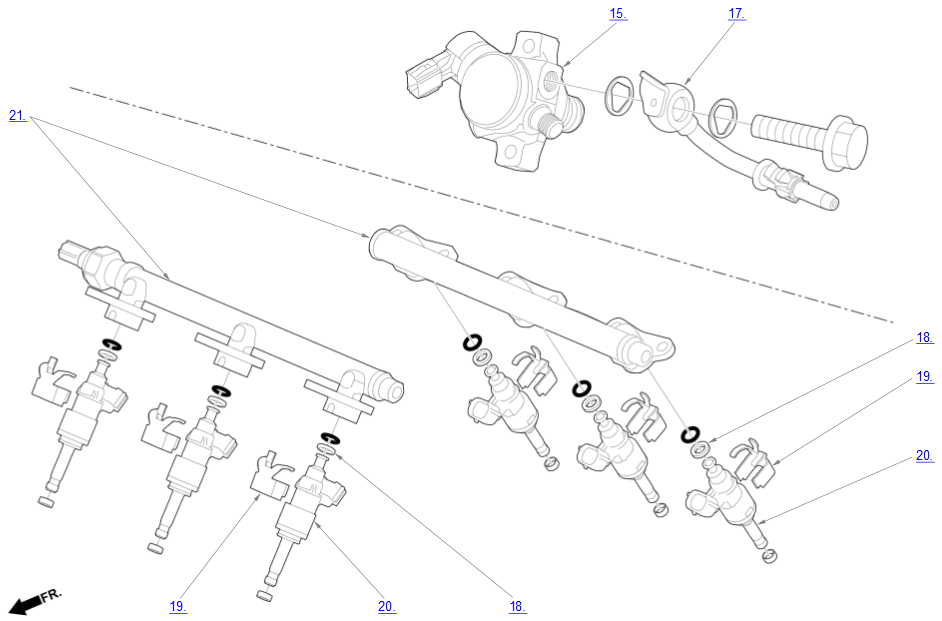

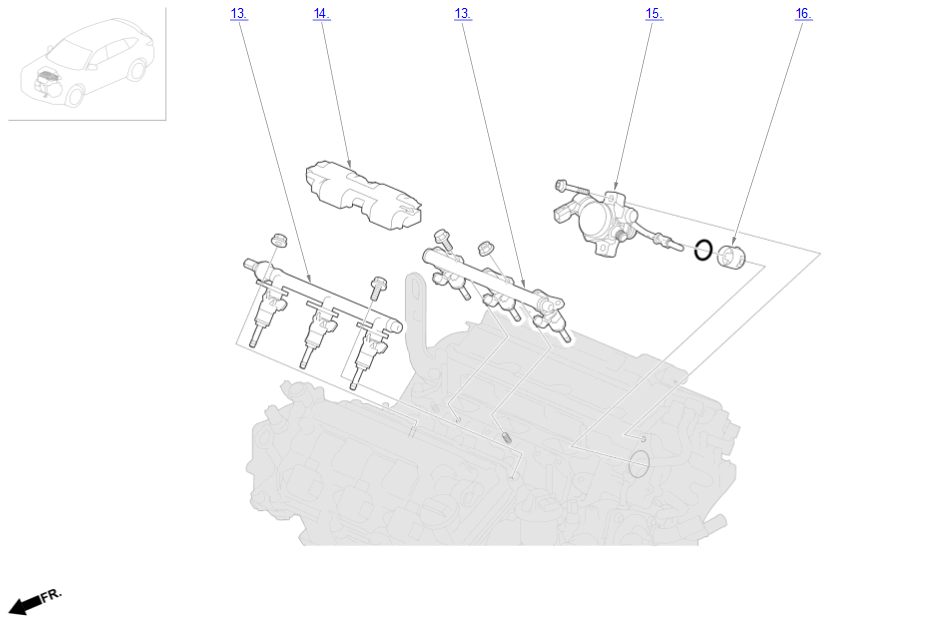

Intake_Manifold_Area(3.5L_Engine) Components
| Component Name | Callout |
|---|---|
| Intake Manifold Upper Cover | 1 |
| Manifold Absolute Pressure (MAP) Sensor | 2 |
| Evaporative Emission (EVAP) Canister Purge Valve | 3 |
| Throttle Body | 4 |
| Quick-Connect Fitting Cover | 5 |
| Fuel Feed Hose Bracket | 6 |
| Fuel Feed Hose | 7 |
| Intake Manifold | 8 |
| PCV Cover | 9 |
| Intake Manifold Base | 10 |
| High Pressure Fuel Pump Cover | 11 |
| Fuel Joint Pipe | 12 |
| Fuel Rail/Injector | 13 |
| Fuel Pipe Cover | 14 |
| High Pressure Fuel Pump | 15 |
| Lifter | 16 |
| Fuel Feed Pipe | 17 |
| Back-Up Ring | 18 |
| Injector Clip | 19 |
| Injector | 20 |
| Fuel Rail | 21 |
