Intake Air System and Lubrication System Components Installation Condition Inspection

Test Procedure

• Procedure
• • -

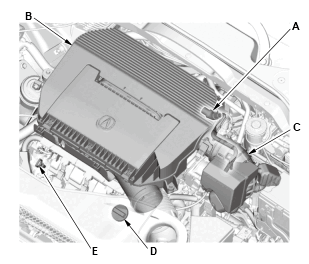

    Visually inspect each of the components below for disconnected hoses, cracks, or damages.

    Crankcase breather hose (A)

    Air cleaner housing (B)

    Intake air duct (C)

    Oil cap (D) and dipstick (E)

Courtesy of HONDA, U.S.A., INC.

• Normal Conditions
• • -

    There is no disconnected hoses, cracks, or damages.

Results

• If it is abnormal, there is a problem with the intake air system and/or the lubrication system component(s).
