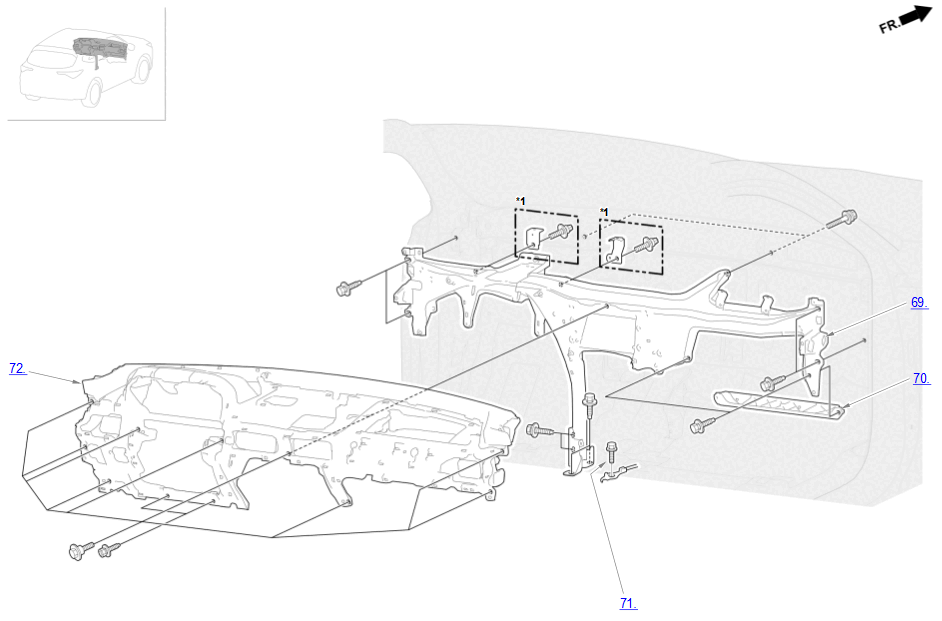

Exploded View

For replacement of components listed below, see Repair Procedure

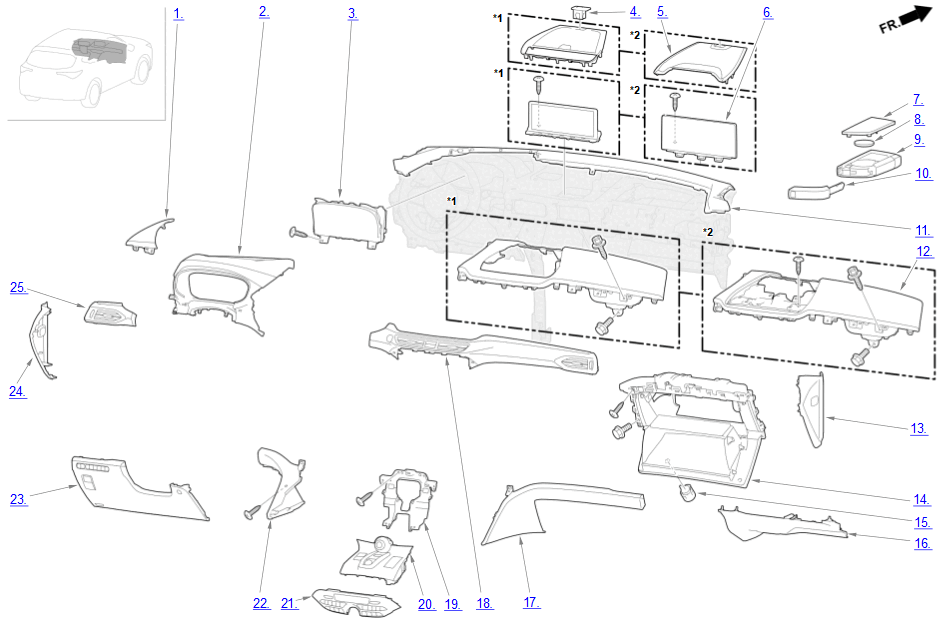

Courtesy of HONDA, U.S.A., INC.

*1: 22-24

*2: 25

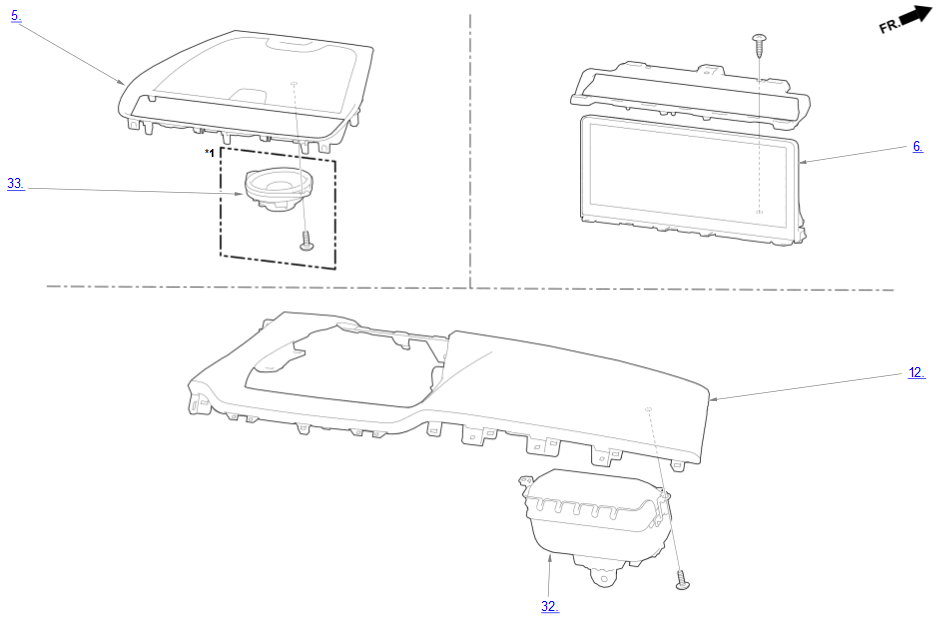

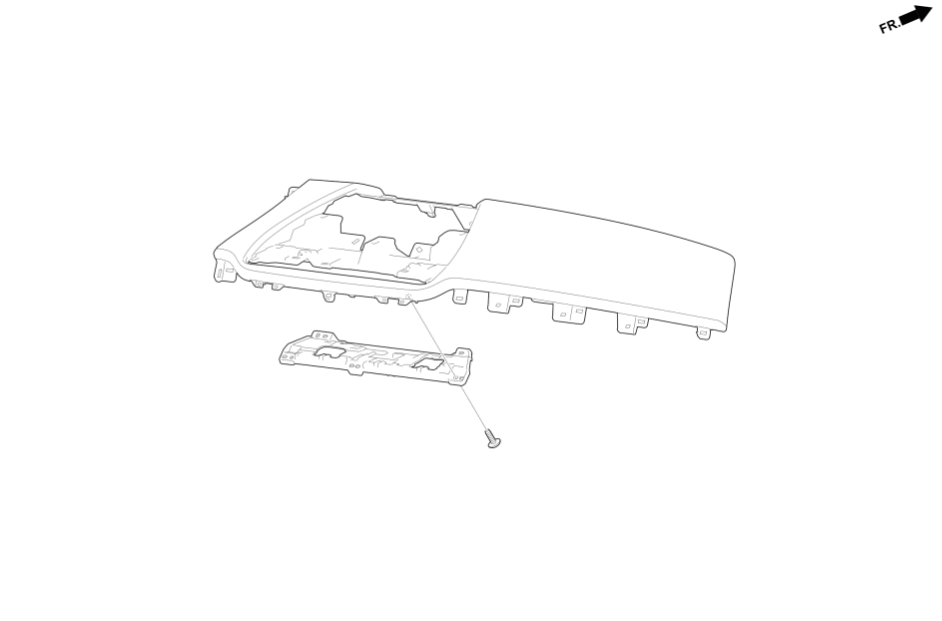

Courtesy of HONDA, U.S.A., INC.

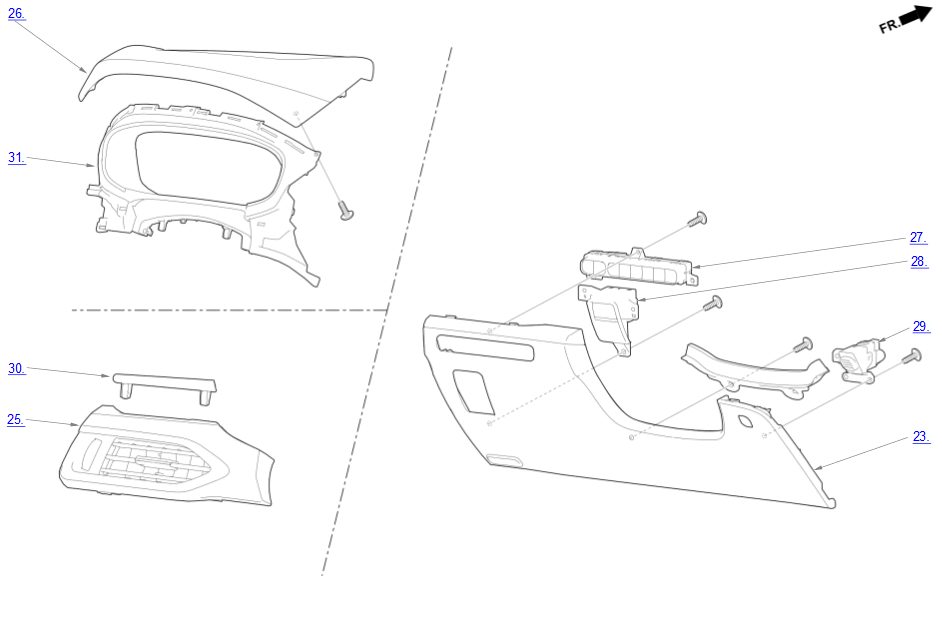

Courtesy of HONDA, U.S.A., INC.

*1: With 16 speakers/with 12 speakers

25

Courtesy of HONDA, U.S.A., INC.

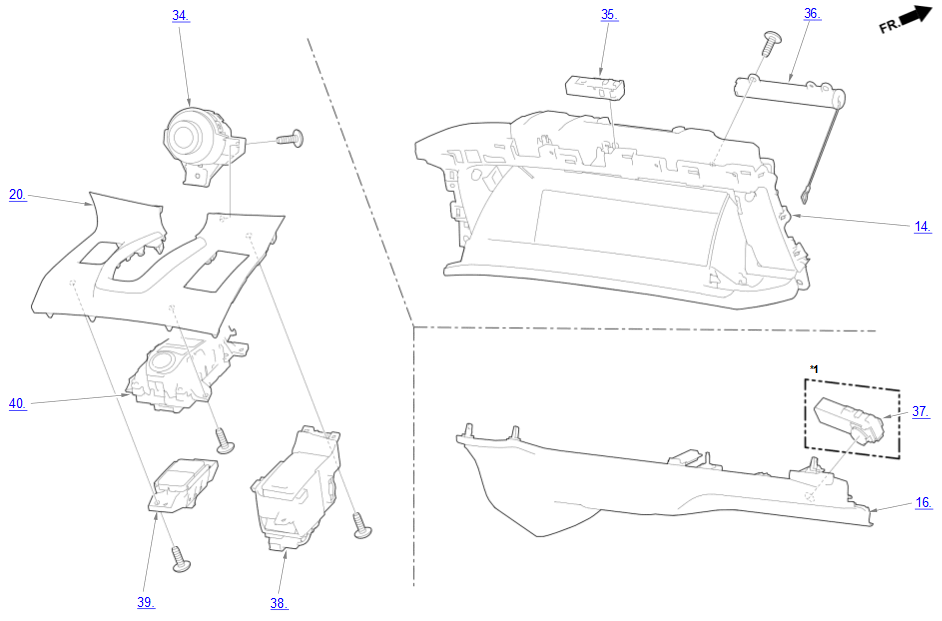

Courtesy of HONDA, U.S.A., INC.

*1: With front passenger's footwell light

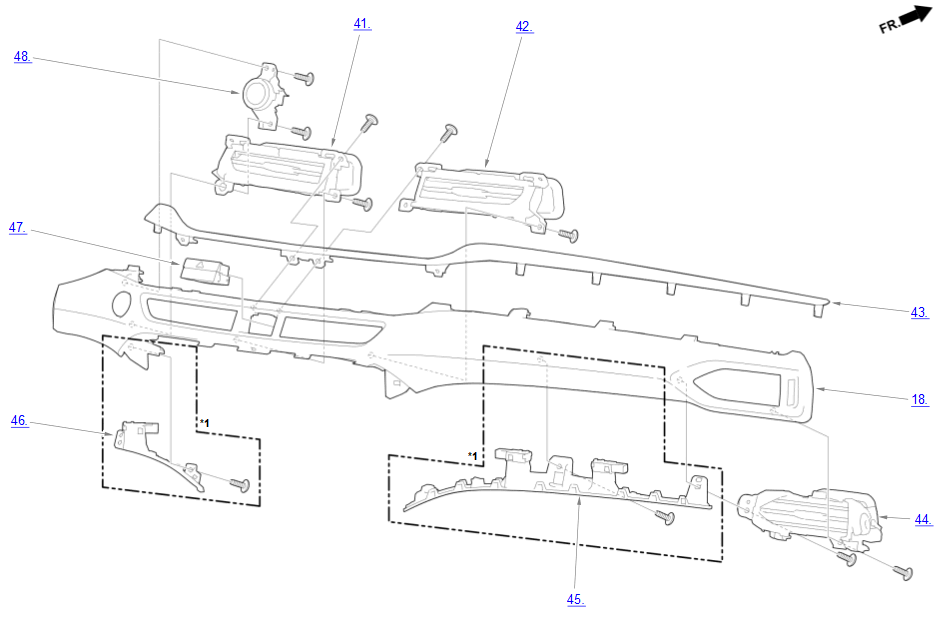

Courtesy of HONDA, U.S.A., INC.

*1: With instrument panel ambient light

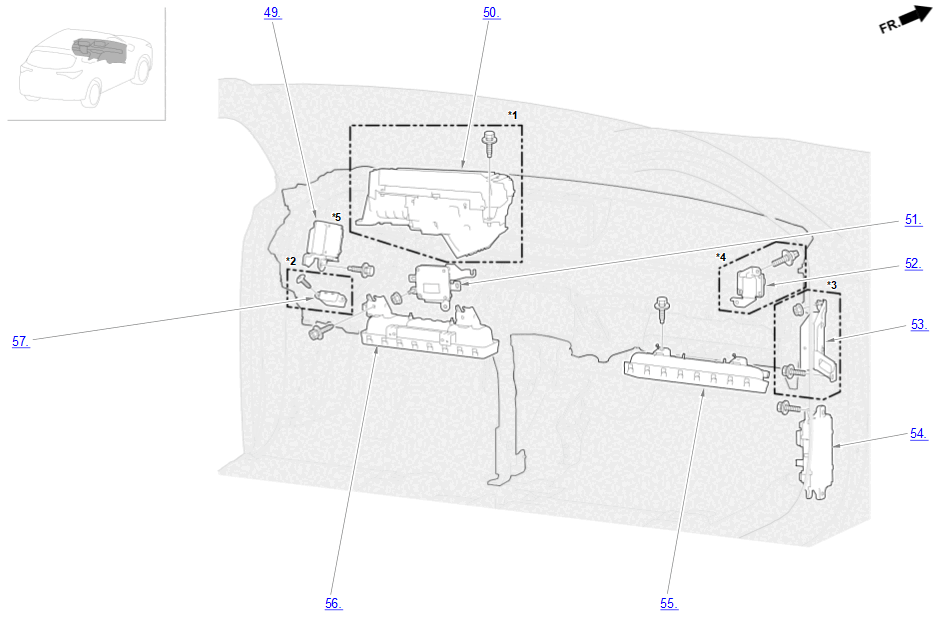

Courtesy of HONDA, U.S.A., INC.

*1: With head up display

*2: With heated steering wheel 22-24

*3: With multi view camera system

*4: With master lighting control unit

*5: With AC power outlet

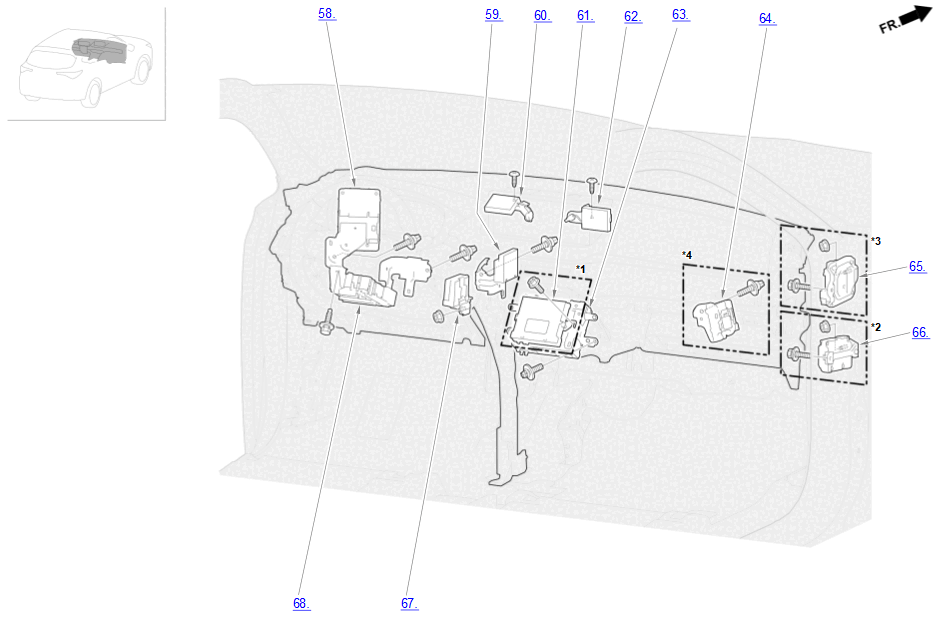

Courtesy of HONDA, U.S.A., INC.

*1: USA/Canada models

*2: 3.5L engine

*3: 3.0L engine

*4: 22-24

Courtesy of HONDA, U.S.A., INC.

*1: With head up display

Component Name	Callout
Driver's Upper Pad	1
Meter Visor	2
Gauge Control Module	3
Automatic Lighting Control Unit-Sensor/Sunlight Sensor	4
Center Speaker Lid	5
Center Display Unit	6
Top Shell	7
Remote Battery	8
Bottom Shell	9
Emergency Key	10
Dashboard Upper Trim	11
Passenger's Upper Pad	12
Passenger's Dashboard Side Lid	13
Glove Box	14
Glove Box Key Cylinder	15
Passenger's Dashboard Undercover	16
Passenger's Cover	17
Passenger's Trim	18
Dashboard Center Bracket	19
Center Console Center Panel	20
Climate Control Unit	21
Driver's Cover	22
Driver's Dashboard Lower Cover	23
Driver's Dashboard Side Lid	24
Driver's Side Vent	25
Meter Visor Hood	26
Multi Visor Switch	27
Electric Parking Brake Switch	28
Humidity/In-Car Temperature Sensor	29
Driver's Upper Trim	30
Meter Visor Panel	31
Front Passenger's Airbag	32
Front Center Speaker	33
Integrated Dynamics System Switch	34
Glove Box Light	35
Glove Box Damper	36
Passenger's Footwell Light	37
USB Charger Unit (Front Console)	38
Idle Stop OFF Switch/Automatic Brake Hold Switch	39
SBW Shifter Assembly	40
Driver's Center Vent	41
Passenger's Center Vent	42
Passenger's Upper Trim	43
Passenger's Side Vent	44
Passenger's Instrument Panel Ambient Light	45
Driver's Instrument Panel Ambient Light	46
Hazard Warning Switch/Front Passenger's Airbag Cutoff Indicator/Immobilizer/Security Indicator	47
Engine Start/Stop Switch	48
AC Inverter Unit	49
Head Up Display	50
DC-DC Converter	51
Master Lighting Control Unit	52
Multi View Camera Unit	53
Power Distribution Module	54
Front Passenger's Knee Airbag	55
Driver's Knee Airbag	56
Heated Steering Wheel Unit	57
Body Control Module	58
Power Tilt/Telescopic Steering Control Unit	59
TEL Antenna (Secondary)	60
Telematics Control Unit	61
TEL Antenna (Primary)	62
Infotainment Control Unit	63
CAN Gateway	64
Active Vibration Control Unit	65
Engine Mount Control Unit	66
Parking and Back-Up Sensor Control Unit	67
Under-Dash Fuse/Relay Box	68
Steering Hanger Beam	69
Glove Box Frame	70
Earth Bolt (Floor)	71
Dashboard	72
