EPS Control Unit Connector for Inputs and Outputs (2022 2023 2024)
| Connector Index | ||
|---|---|---|
| EPS Control Unit Connector A (2P) | ||
| EPS Control Unit Connector B (6P) |

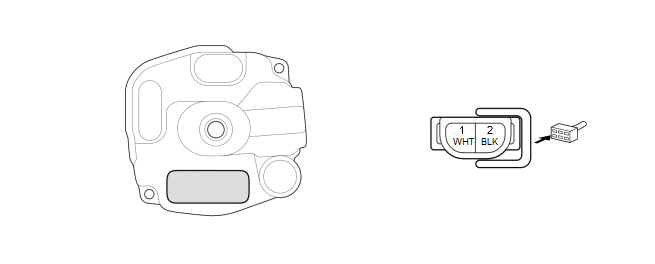

EPS Control Unit Connector A (2P) (female terminals)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | +B_EPS (EPS) *1 +B_EPS *2 |
Power source for the actuator EPS motor |
| 2 | PGND (EPS) * 1PGND *2 |
Ground for the EPS control unit |
*1: 3. 5 L engine
*2: 3. 0 L engine

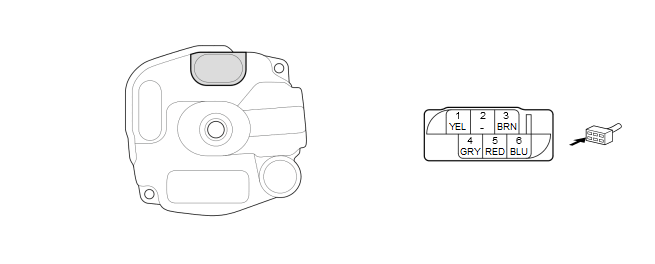

EPS Control Unit Connector B (6P) (female terminals)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | VF-CAN B_L | F-CAN communication circuit |
| 2 | Not used | --- |
| 3 | VF-CAN C_H | F-CAN communication circuit |
| 4 | VF-CAN B_H | F-CAN communication circuit |
*1: 3. 5 L engine
*2: 3. 0 L engine
| Terminal number | Terminal sign | Description |
|---|---|---|
| 5 | IG1_VSA/ABS (EPS) *1 IG1_VSA/ABS *2 |
Power source for activating the system |
| 6 | VF-CAN C_L | F-CAN communication circuit |
*1: 3. 5 L engine
*2: 3. 0 L engine
