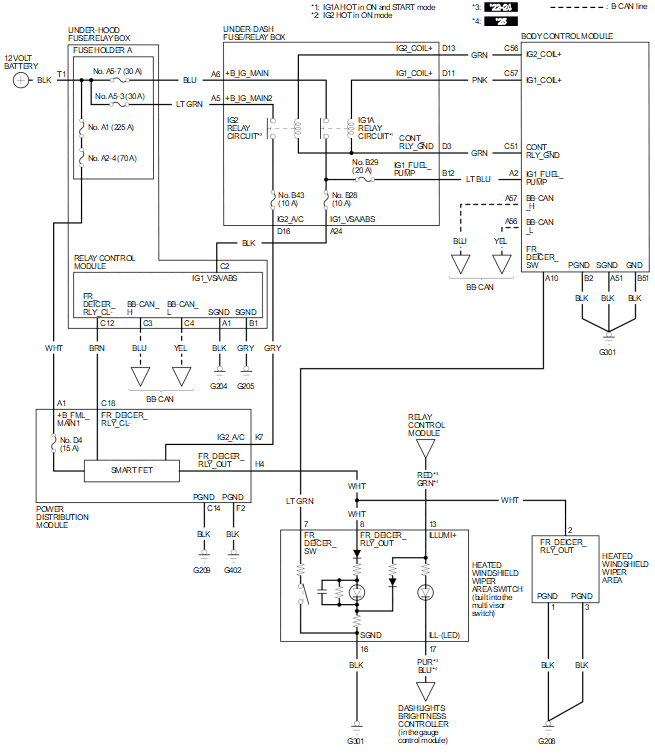

Heated Windshield Wiper Area Circuit Diagram (3.5L Engine)

NOTE:

For details of the CAN circuit, refer to the Network Communications Circuit Diagram.

Courtesy of HONDA, U.S.A., INC.
