Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. |

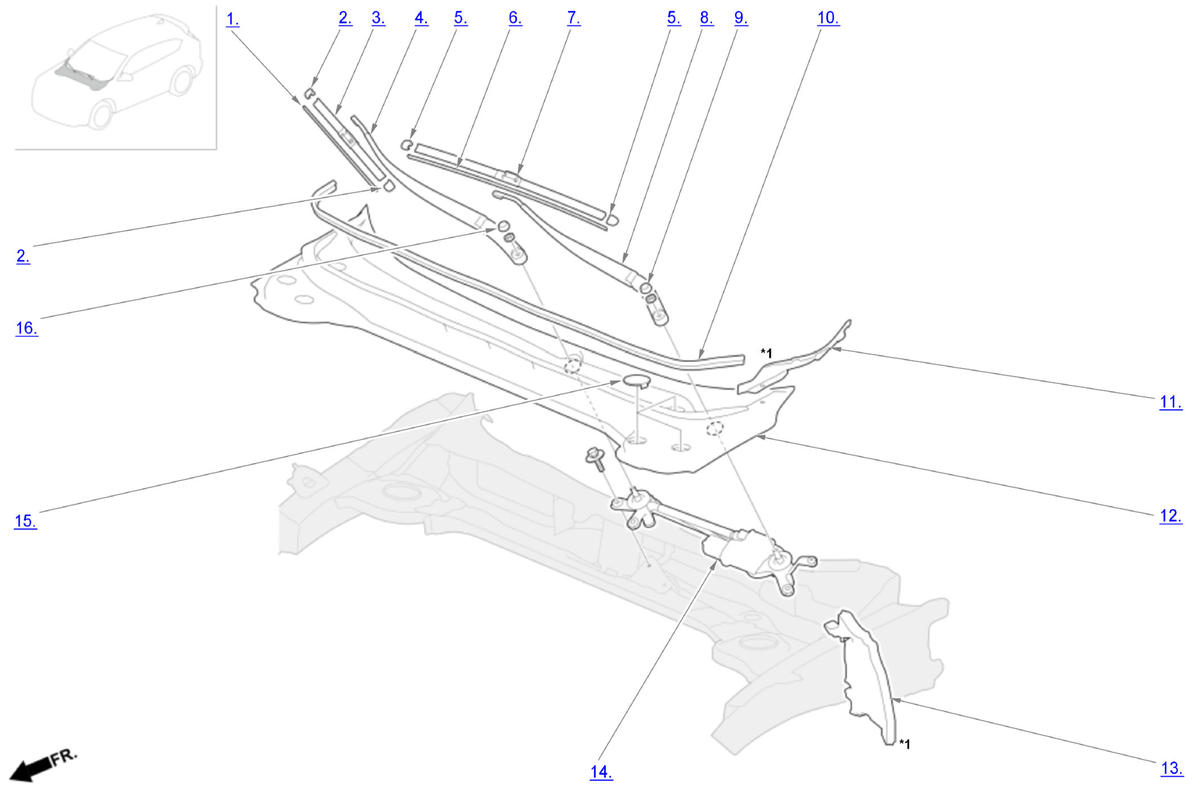

Windshield Wiper Area Components
| Component Name | Callout |
|---|---|
| Passenger's Wiper Blade | 1 |
| Passenger's End Cap | 2 |
| Passenger's Wiper Blade Holder | 3 |
| Passenger's Wiper Arm | 4 |
| Driver's End Cap | 5 |
| Driver's Wiper Blade | 6 |
| Driver's Wiper Blade Holder | 7 |
| Driver's Wiper Arm | 8 |
| Driver's Wiper Arm Cap | 9 |
| Hood Rear Seal | 10 |
| Front Fender Cover | 11 |
| Cowl Cover | 12 |
| Front Fender Partition Pad | 13 |

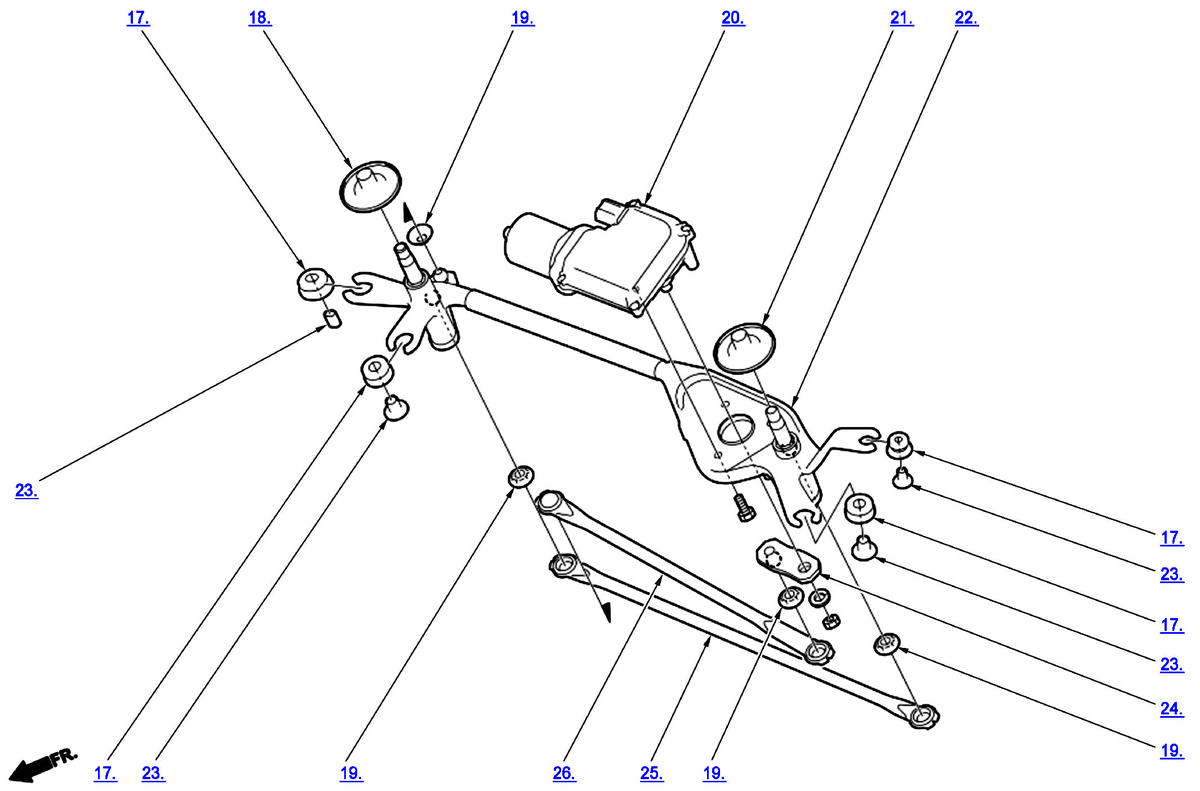

| Windshield Wiper Linkage Assembly | 14 |
| Cowl Cover Lid | 15 |
| Passenger's Wiper Arm Cap | 16 |
| Mount Rubber | 17 |
| Passenger's Pivot Cap | 18 |
| Dust Seal | 19 |
| Windshield Wiper Control Unit/Motor | 20 |
| Driver's Pivot Cap | 21 |
| Wiper Linkage Frame | 22 |
| Collar | 23 |
| Wiper Link | 24 |
| Connecting Rod B | 25 |
| Connecting Rod A | 26 |
