Exploded View

For replacement of components listed below, see Repair Procedure .

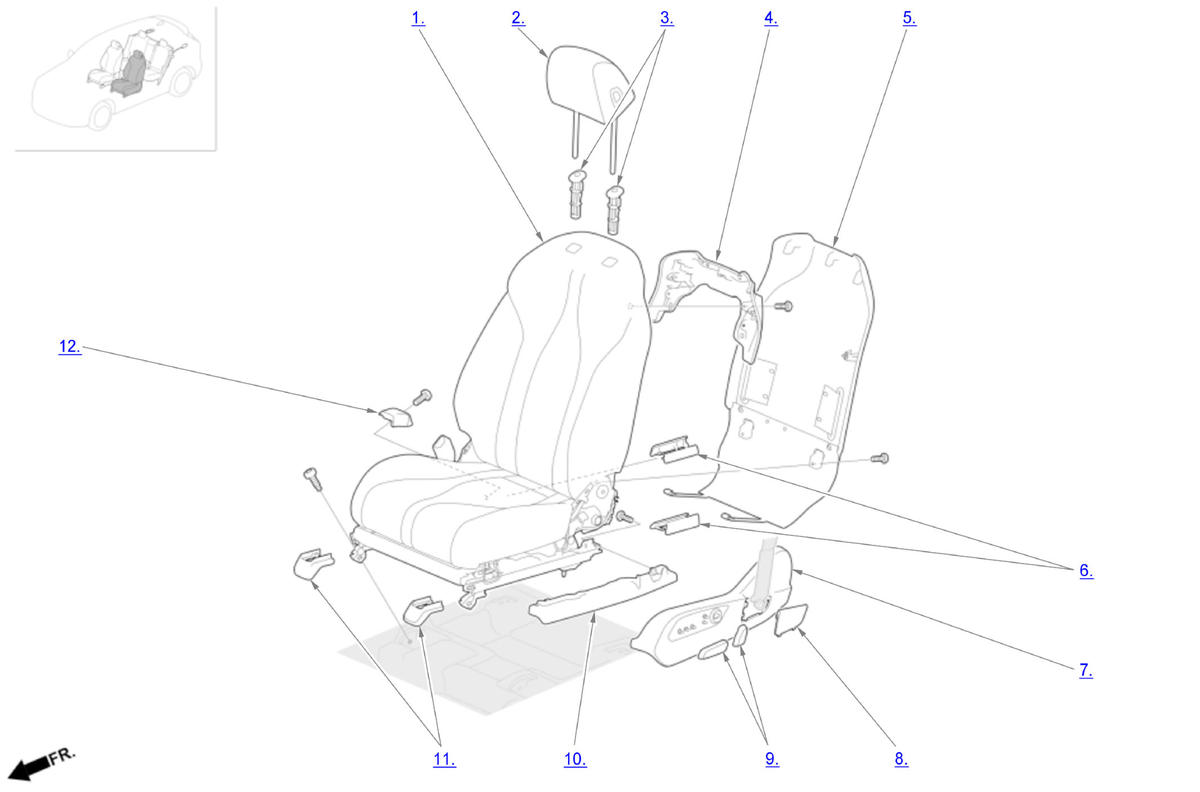

GHH555141Courtesy of HONDA, U.S.A., INC.

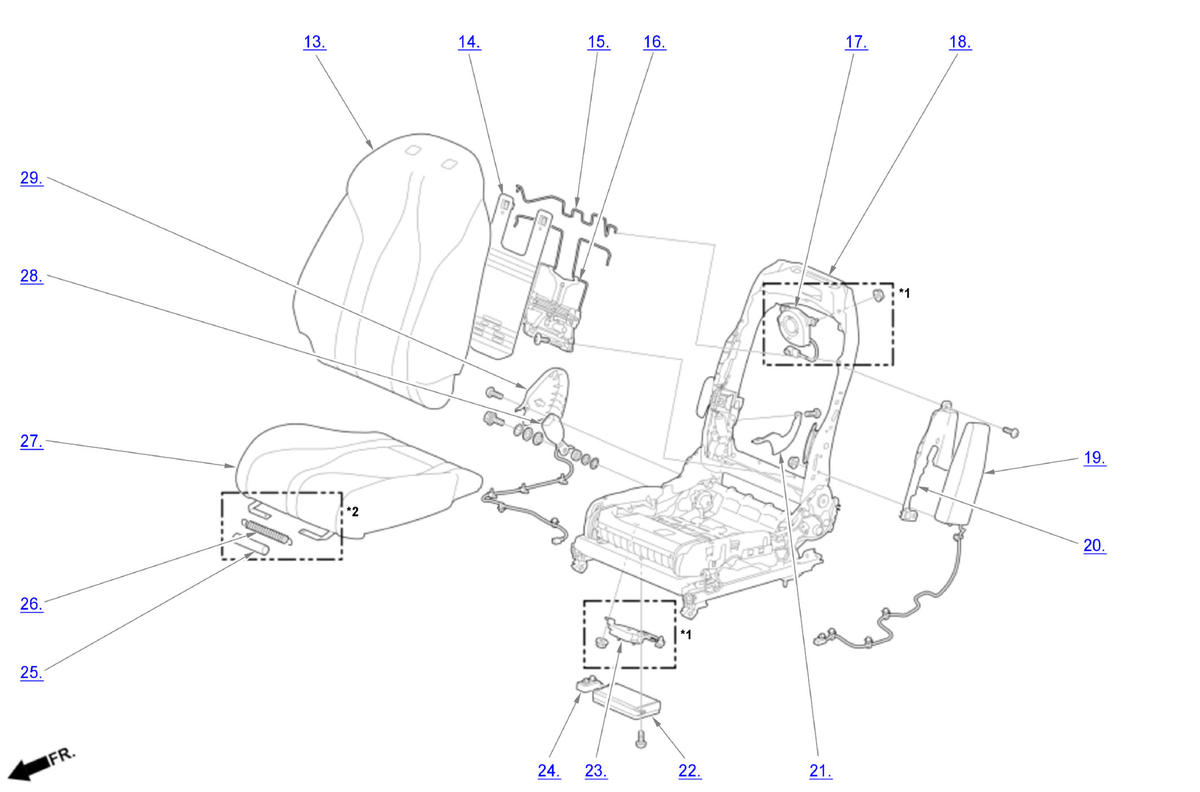

GHH555142Courtesy of HONDA, U.S.A., INC.
*1: With ventilated seat
*2: With 16-way power seat

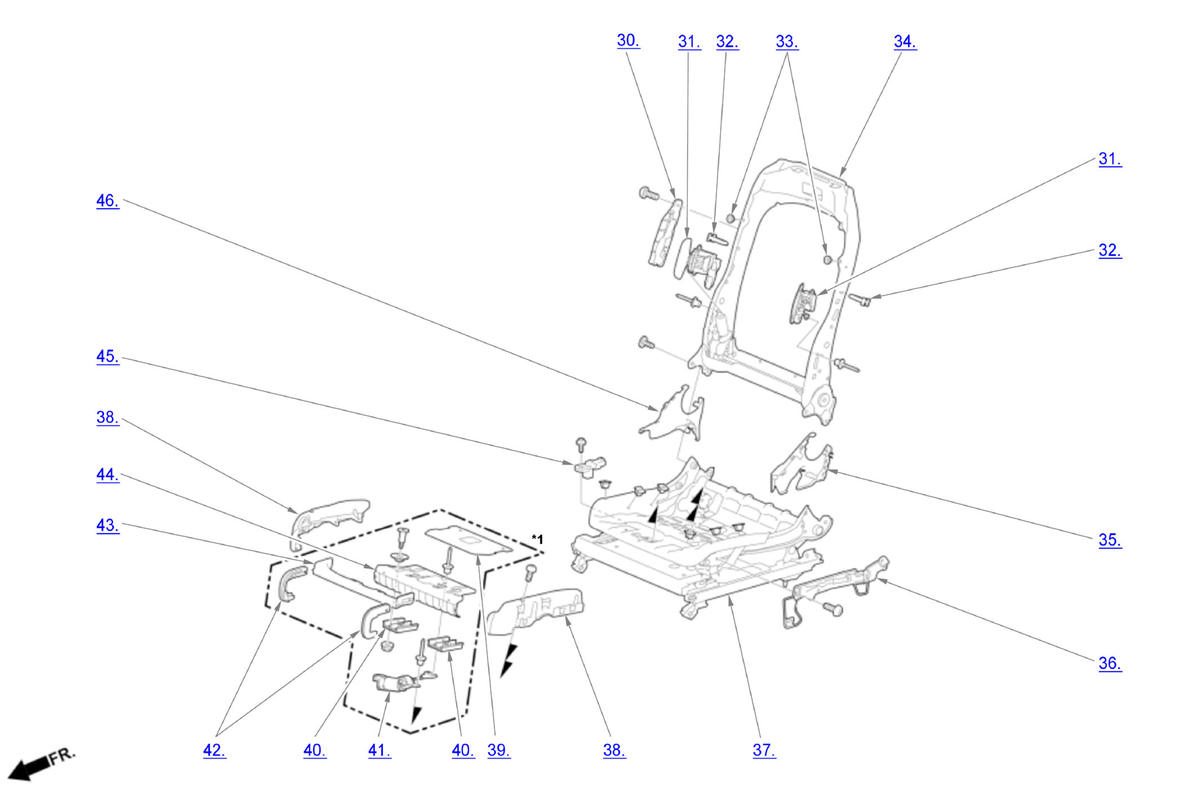

GHH555143Courtesy of HONDA, U.S.A., INC.
*1: With 16-way power seat

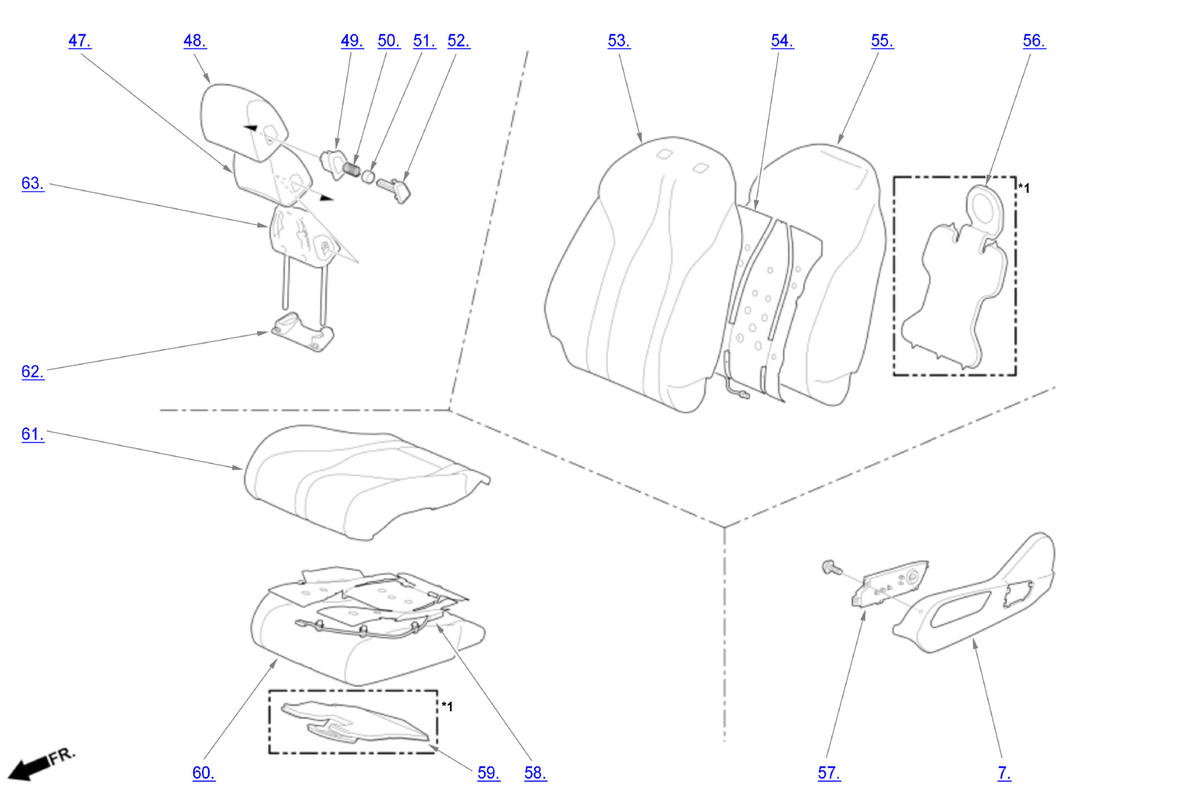

GHH555144Courtesy of HONDA, U.S.A., INC.
*1: With ventilated seat
Front Seat Area Components

Component Name Callout
Driver's Seat 1
Head Restraint 2
Head Restraint Guide 3
Driver's Seat-Back Inner Cover 4
Driver's Seat-Back Outer Panel 5
Driver's Seat Rear Foot Cover 6
Driver's Seat Outer Recline Cover 7
Lower Anchor Cover 8
Knobs 9
Upper Rail Outer Cover 10
Driver's Seat Front Foot Cover 11
Upper Rail Inner Cover 12
Driver's Seat-Back Cover/Pad 13
Lumbar Support Mat 14
Lumbar Support Upper Wire 15
Driver's Seat Lumbar Support 16
Driver's Seat-Back Blower Motor 17
Seat Frame 18
Left Side Airbag 19
Left Side Airbag Holder 20
Height Motor Cover 21
Power Seat Control Unit 22
Driver's Seat Cushion Blower Motor 23
Ventilated Seat Control Unit or Seat Heater Control Unit 24
Driver's Seat Cushion Cover Tube 25
Driver's Seat Cushion Cover Spring 26
Driver's Seat Cushion Cover/Pad 27
Driver's Seat Belt Buckle 28
Driver's Seat Inner Recline Cover 29
Seat-Back Bolster Cover 30
Bolster Motor 31
Lumbar Support Lower Wire Clip 32
Lumbar Support Upper Wire Bushing 33
Driver's Seat-Back Frame 34
Recline Outer Cover 35
Driver's Seat Cushion Outer Bracket 36
Driver's Seat Cushion Frame 37
Driver's Seat Cushion Bolster Cover 38
Power Thigh Support Plate 39
Power Thigh Support Carrier Slider 40
Power Thigh Support Motor 41
Carrier Side Cover 42
Power Thigh Support Carrier Cover 43
Power Thigh Support 44
Driver's Seat Position Sensor 45
Recline Inner Cover 46
Head Restraint Trim Pad 47
Head Restraint Trim Cover 48
Head Restraint Button Trim 49
Head Restraint Button Spring 50
Head Restraint Button Spring Cover 51
Head Restraint Adjust Button 52
Driver's Seat-Back Cover 53
Driver's Seat-Back Heater 54
Driver's Seat-Back Pad 55
Driver's Seat-Back Ventilation Bag 56
Driver's Power Seat Adjustment Switch/Knob/Outer Recline Cover 57
Driver's Seat Cushion Heater 58
Driver's Seat Cushion Ventilation Bag 59
Driver's Seat Cushion Pad 60
Driver's Seat Cushion Cover 61
Head Restraint Under Trim 62
Head Restraint Frame 63
