Exploded View
For replacement of components listed below, see Repair Procedure .

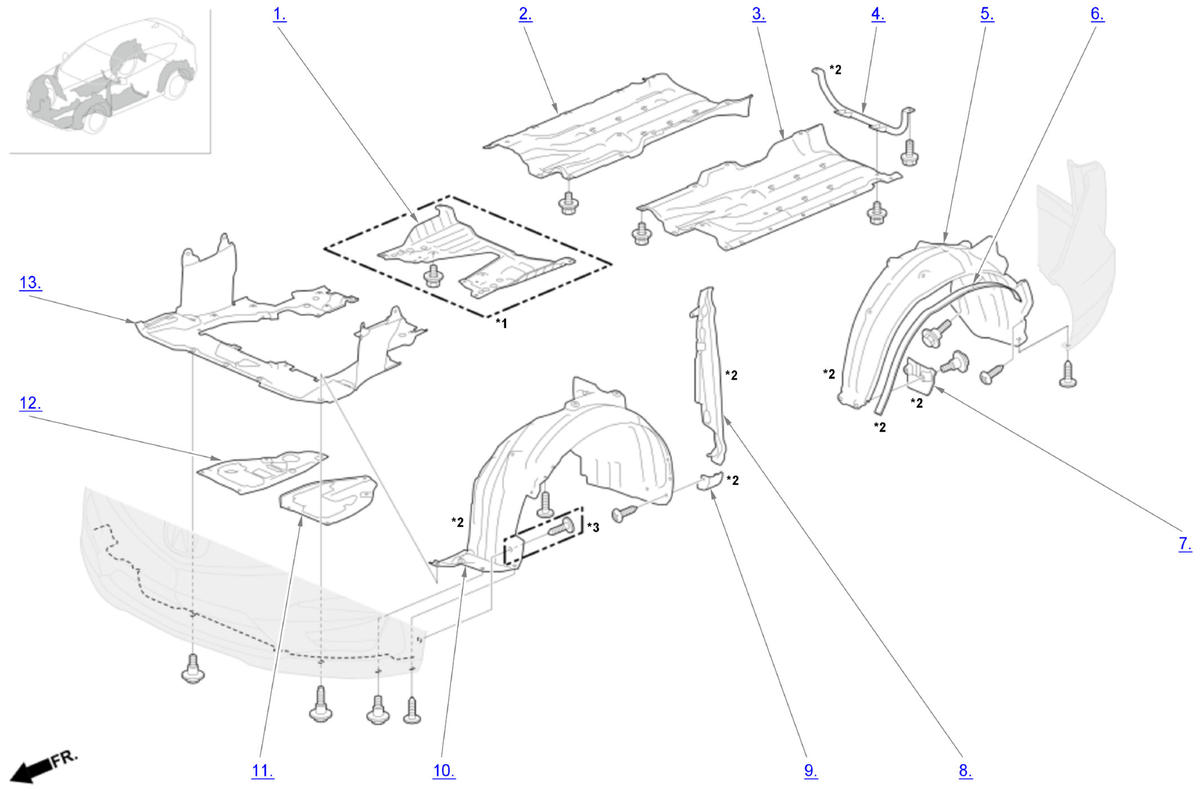

USA and Mexico Models
| *1: With rear engine undercover *2: Part(s) are shown for one side only as the procedure is the same for both sides. *3: '22-23 |

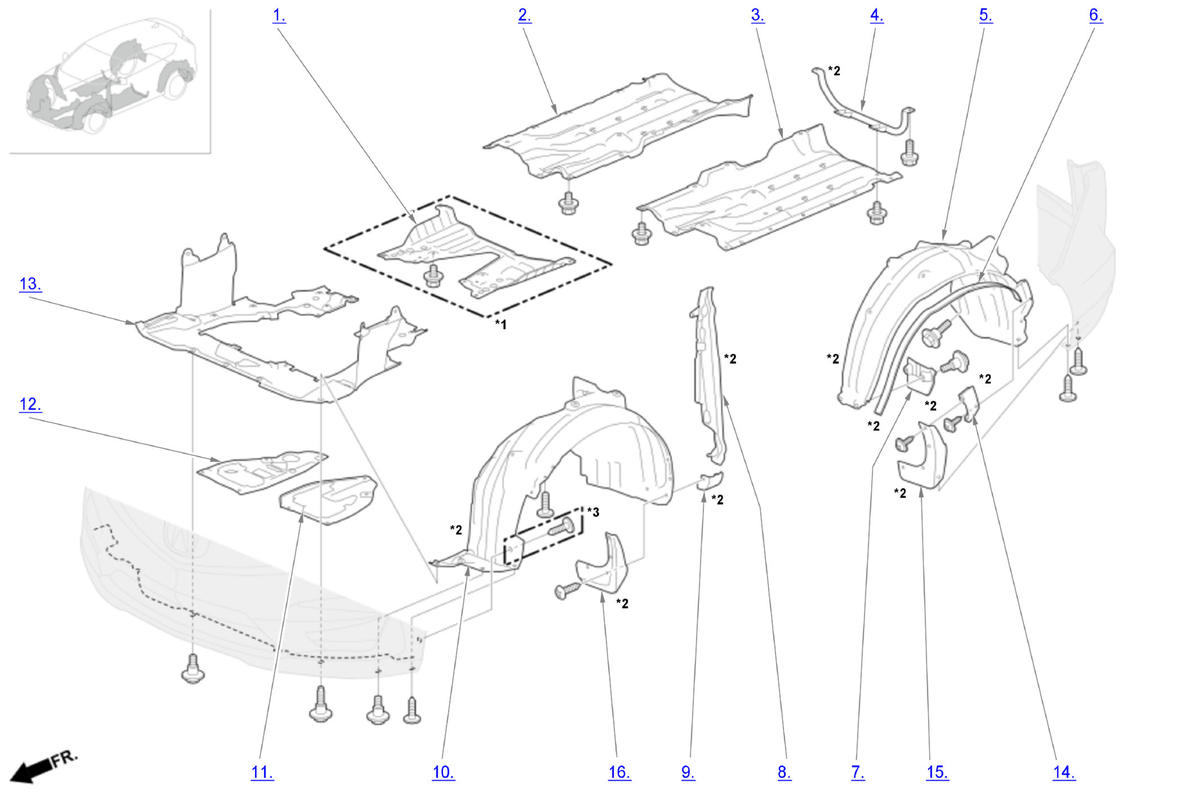

Canada Models
| *1: With rear engine undercover *2: Part(s) are shown for one side only as the procedure is the same for both sides. *3: '22-23 |
Undercover Area Components
| Component Name | Callout |
|---|---|
| Rear Engine Undercover | 1 |
| Right Front Floor Undercover | 2 |
| Left Front Floor Undercover | 3 |
| Fuel Tank Guard | 4 |
| Rear Inner Fender | 5 |
| Rear Wheel Arch Protector | 6 |
| Rear Strake | 7 |
| Front Fender Fairing | 8 |
| Front Fender Lower Garnish | 9 |
| Front Inner Fender | 10 |
| Left Engine Undercover Lid | 11 |
| Right Engine Undercover Lid | 12 |
| Engine Undercover | 13 |
| Rear Splash Guard Bracket | 14 |
| Rear Splash Guard | 15 |
| Front Splash Guard | 16 |
