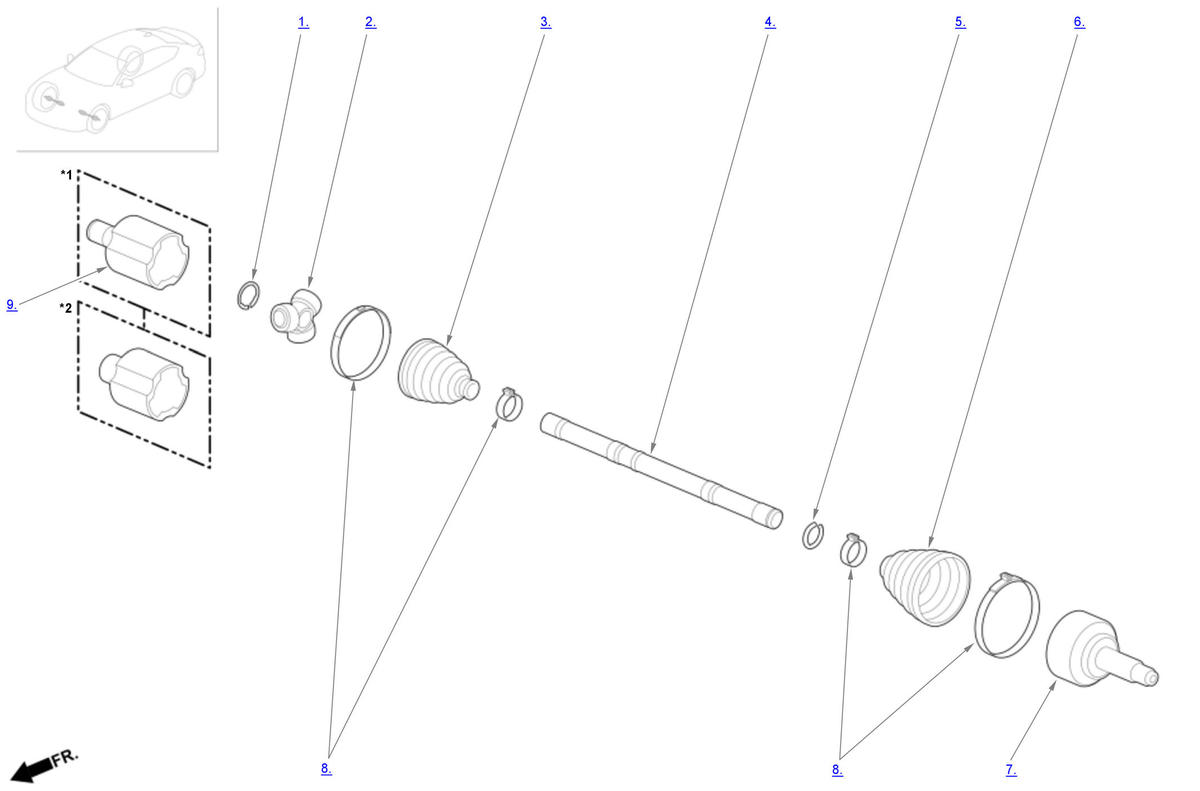

Exploded View Legend

GHH561367Courtesy of HONDA, U.S.A., INC.
*1: Left

*2: Right
  1. Circlip
  2. Spider/Roller
  3. Inboard Boot
  4. Driveshaft
  5. Stop Ring
  6. Outboard Boot
  7. Outboard Joint
  8. Boot Band
  9. Inboard Joint
